GM 6.6L Duramax

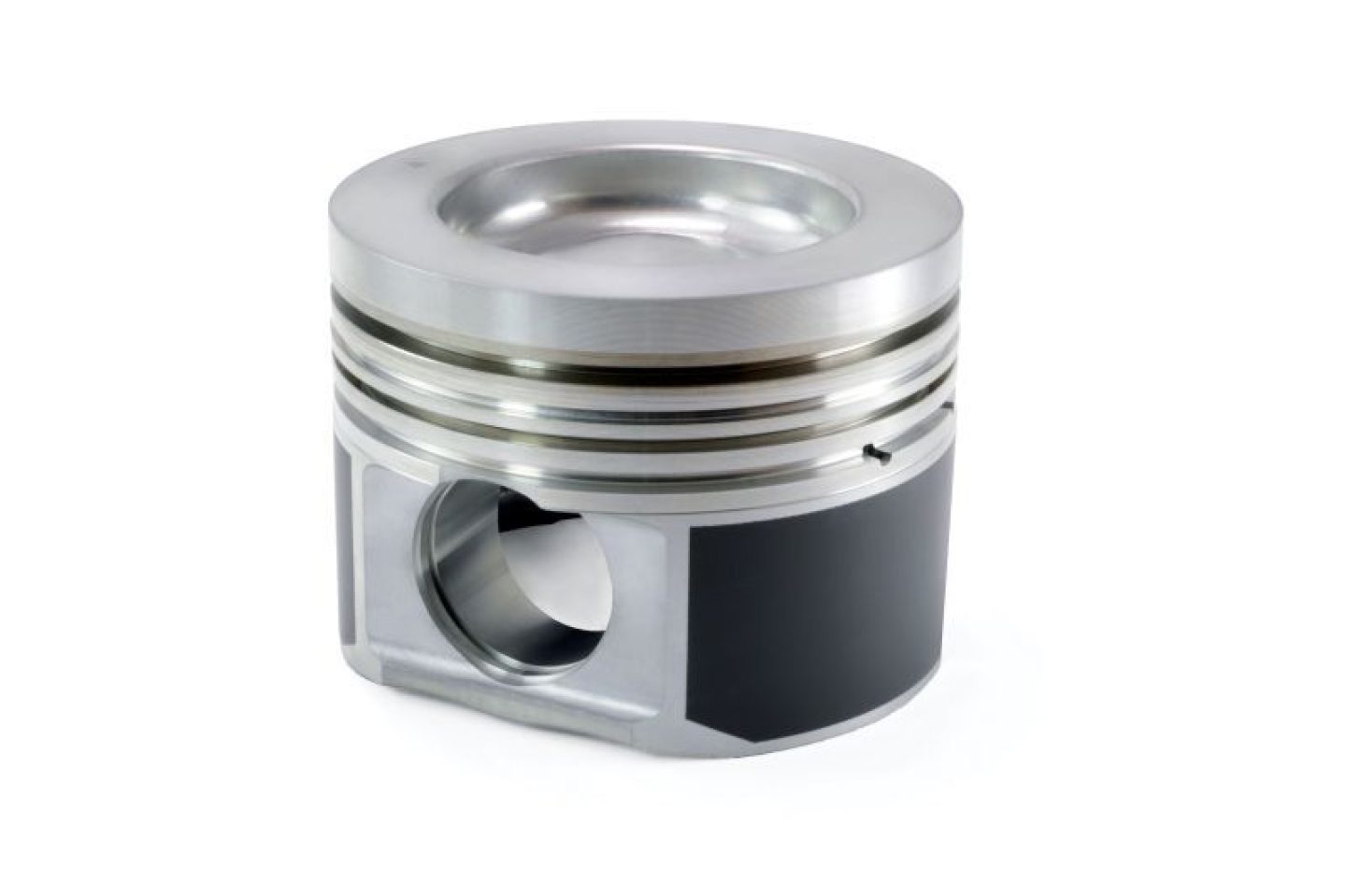

Engine Piston Kit
Withstand the pressure, even under extreme loads, with Mahle cast aluminum diesel piston and ring kits. They are delivered with standard features, like ring carriers made from high-strength austenitic cast iron, salt core cooling channels or cooled ring carriers, and a Mahle Grafal coating for optimum skirt performance. The kits include a full set of rings to complete the installation. Diesel engines have high-temperature loads and demand improved materials for fatigue resistance, reinforced critical points for maximum strength, and improved piston cooling. Mahle cast aluminum diesel pistons meet these requirements to keep your diesel engine running in top form, despite today's challenges.
Brand | Mahle |
Manufacturer's Part Number | 930036095 |
Part Type | Pistons |
Product Line | Mahle Cast Aluminum Diesel Piston and Ring Kits |
Summit Racing Part Number | MLE-930036095 |
Piston Rings Included | Yes |
Bore (in.) | 4.095 in. |
Bore (mm) | 104.013mm |
Stroke | 3.898 in. |
Rod Length | 6.417 in. |
Piston Style | Dish, with four valve reliefs |
Piston Material | Cast aluminum |
Compression Height (in.) | 1.956 in. |
Piston Head Volume (cc) | +40.80cc |
Wrist Pin Style | Press-fit or floating |
Wrist Pin Retainers Included | Yes |
Wrist Pin Included | Yes |
Pin Diameter (in.) | 1.358 in. |
Piston Ring Thickness | 3.00mm x 2.00mm x 3.00mm |
File Fit | No |
Gapless | No |
Top Ring Thickness | 3.0mm |
Top Ring Material | Stainless steel |
Top Ring Facing Material | Gas nitrided |
Second Ring Thickness | 2.0mm |
Second Ring Material | Cast iron |
Second Ring Facing Material | Chrome |
Oil Ring Thickness | 3.0mm |
Oil Ring Material | Carbon steel |
Oil Ring Tension | Standard |
Remanufactured | No |
Quantity | Sold as a kit. |
We do not have any specific fitment data for this part. This could be a generic item or if you need further clarification, please contact us for details to assist us with your compatibility requirements.
