4.055bore,3.898stroke,6.417rod,1.956ch,1.358pin,-41.8cc,846g,16.3cr, M142P
GM 6.6L Duramax

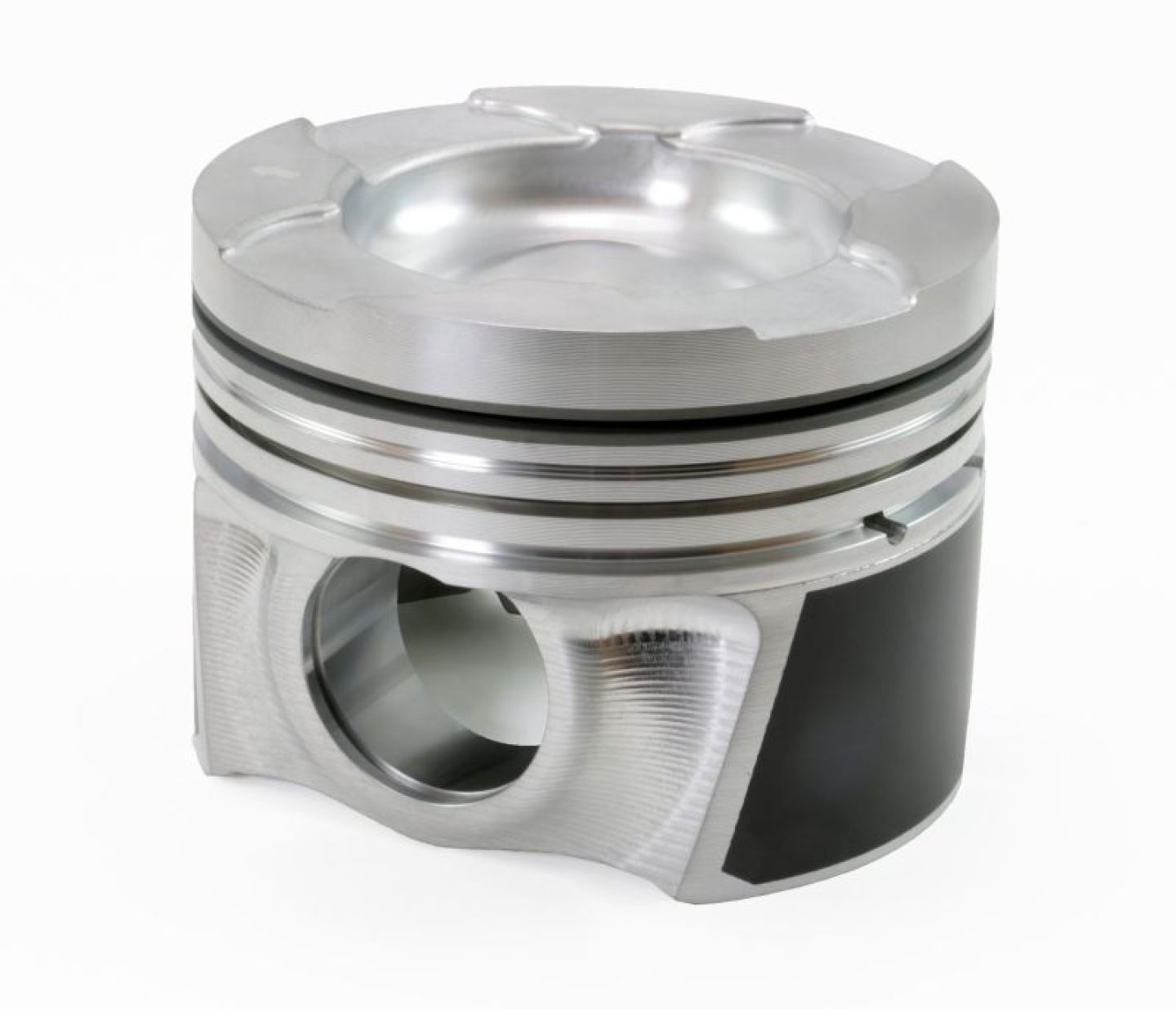

Engine Piston Kit
Mahle forged diesel race piston and ring kits are designed to withstand the extreme cylinder pressures of your high-boost diesel engine. Forged from strong aluminum alloy, these race pistons are machined for less weight and low compression ratios; and to reduce drag, scuffing, and friction the piston skirts receive a Grafal coating to optimize performance. The kits include a set of high-quality piston rings to get you all sealed up. With almost 90 years of racing heritage and technology, Mahle knows what your high performance diesel needs to keep performing. Get a competitive edge for your diesel-powered race rig with Mahle race piston and ring kits.
Brand | Mahle |
Manufacturer's Part Number | 930036255 |
Part Type | Pistons |
Product Line | Mahle Forged Diesel Race Piston and Ring Kits |
Summit Racing Part Number | MLE-930036255 |
Piston Rings Included | Yes |
Bore (in.) | 4.055 in. |
Bore (mm) | 102.997mm |
Stroke | 3.898 in. |
Rod Length | 6.417 in. |
Piston Style | Dish, with four valve reliefs |
Piston Material | Forged aluminum |
Compression Height (in.) | 1.956 in. |
Piston Head Volume (cc) | +41.80cc |
Wrist Pin Style | Press-fit or floating |
Wrist Pin Retainers Included | Yes |
Wrist Pin Included | Yes |
Pin Diameter (in.) | 1.358 in. |
Piston Ring Thickness | 3.00mm x 2.00mm x 3.00mm |
File Fit | No |
Gapless | No |
Top Ring Thickness | 3.0mm |
Top Ring Material | Stainless steel |
Top Ring Facing Material | Gas nitrided |
Second Ring Thickness | 2.0mm |
Second Ring Material | Cast iron |
Second Ring Facing Material | Chrome |
Oil Ring Thickness | 3.0mm |
Oil Ring Material | Carbon steel |
Oil Ring Tension | Standard |
Remanufactured | No |
Quantity | Sold as a kit. |
Compatibility & Application Information | |
---|---|
Make | CHEVROLET |
Beginning Year | 2001 |
Ending Year | 2016 |
Engine Type | V8 |
Engine Family | Duramax diesel V8 |
Engine Size | 6.6L/403 |
We do not have any specific fitment data for this part. This could be a generic item or if you need further clarification, please contact us for details to assist us with your compatibility requirements.
