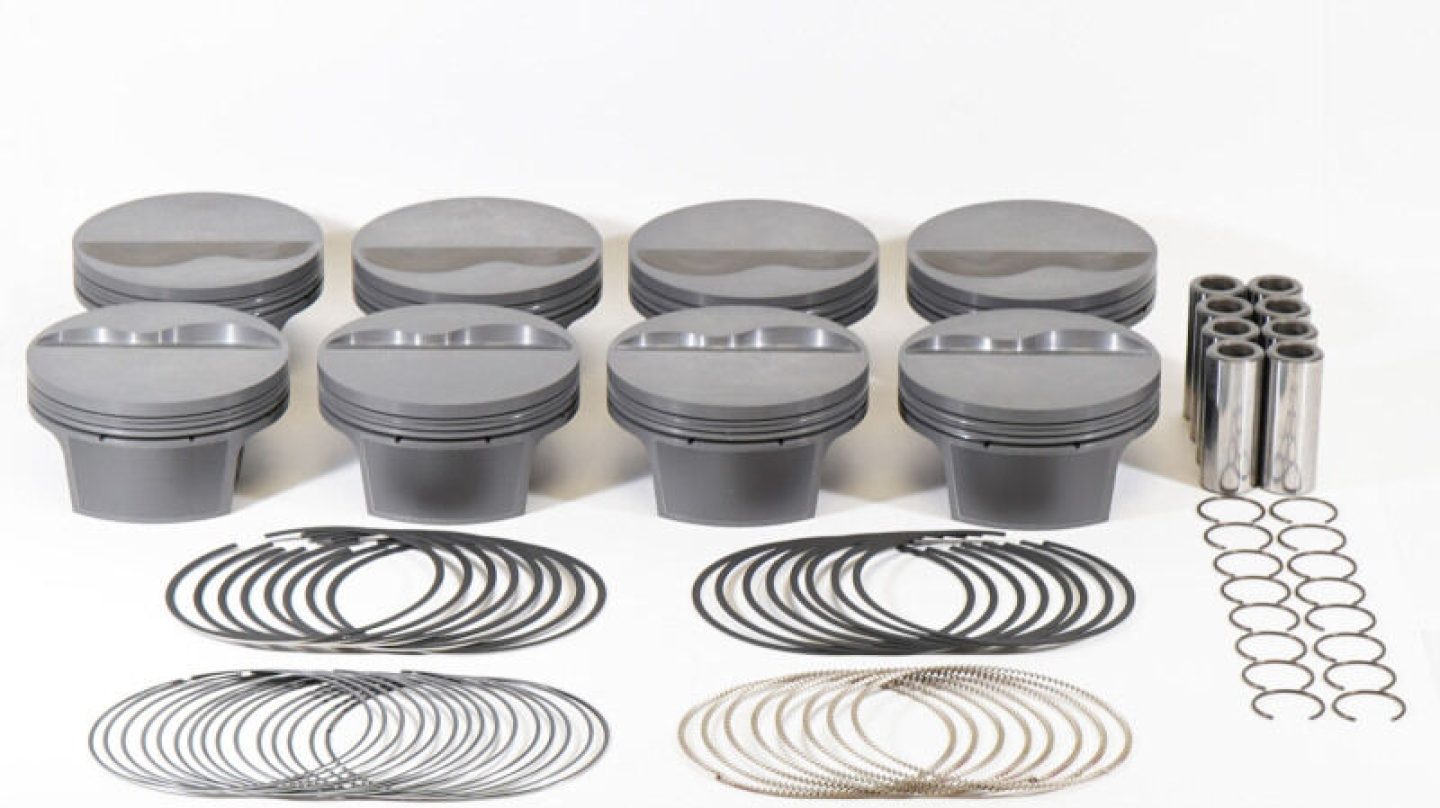

Engine Piston Kit .
Ford Small Block
What kind of power are you packing? Mahle PowerPak Plus piston and ring kits posses the attributes that you seek for the competitive edge that you want. Built from forged aluminum, these PowerPak pistons are hand-deburred and phosphate coated and then given Mahle's proprietary Grafal anti-friction coating. The lightweight kits also include low-drag slipper skirts, CNC-machined pin bores, machined ultra-flat ring grooves, and Mahle low-drag rings. These power-packed, race-proven packages provide you with unmatched consistency and performance. What separates you from the competition? It's the fact that you've chosen the power of Mahle PowerPak Plus piston and ring kits.
Brand | Mahle |
Notes | Features 4032 aluminum. |
Stroke | 3.750 in. |
Gapless | No |
File Fit | Yes |
Quantity | Sold as a set of 8. |
Bore (mm) | 102.362mm |
Part Type | Pistons |
Bore (in.) | 4.030 in. |
Rod Length | 6.200 in. |
Piston Style | Flat top, with two valve reliefs |
Product Line | Mahle PowerPak Plus Piston and Ring Kits |
Piston Material | Forged aluminum |
Wrist Pin Style | Floating |
Oil Ring Tension | Low |
Oil Ring Material | Stainless steel |
Top Ring Material | Ductile iron |
Engine Stroke Type | Stroked |
Oil Ring Thickness | 2.0mm |
Pin Diameter (in.) | 0.927 in. |
Top Ring Thickness | 1.0mm |
Wrist Pin Included | Yes |
Second Ring Material | Cast iron |
Piston Ring Thickness | 1.00mm x 1.00mm x 2.00mm |
Piston Rings Included | Yes |
Second Ring Thickness | 1.0mm |
Piston Head Volume (cc) | +6.50cc |
Compression Height (in.) | 1.125 in. |
Top Ring Facing Material | Plasma-moly |
Summit Racing Part Number | MLE-930173130 |
Manufacturer's Part Number | 930173130 |
Second Ring Facing Material | Cast iron |
Wrist Pin Retainers Included | Yes |
Compatibility & Application Information | |
---|---|
Make | FORD |
Engine Type | V8 |
Engine Family | Ford small block Windsor |
Engine Size | 4.7L/289 |
Make | FORD |
Engine Type | V8 |
Engine Family | Ford small block Windsor |
Engine Size | 5.0L/302 |
Make | FORD |
Engine Type | V8 |
Engine Family | Ford small block Windsor |
Engine Size | 5.8L/351 |
We do not have any specific fitment data for this part. This could be a generic item or if you need further clarification, please contact us for details to assist us with your compatibility requirements.
