374ci,4.125bore,3.480/3.500stroke,6.0rod,1.25ch,0.927pin,-5cc,451g,10.8cr,4032
Chevrolet Small Block

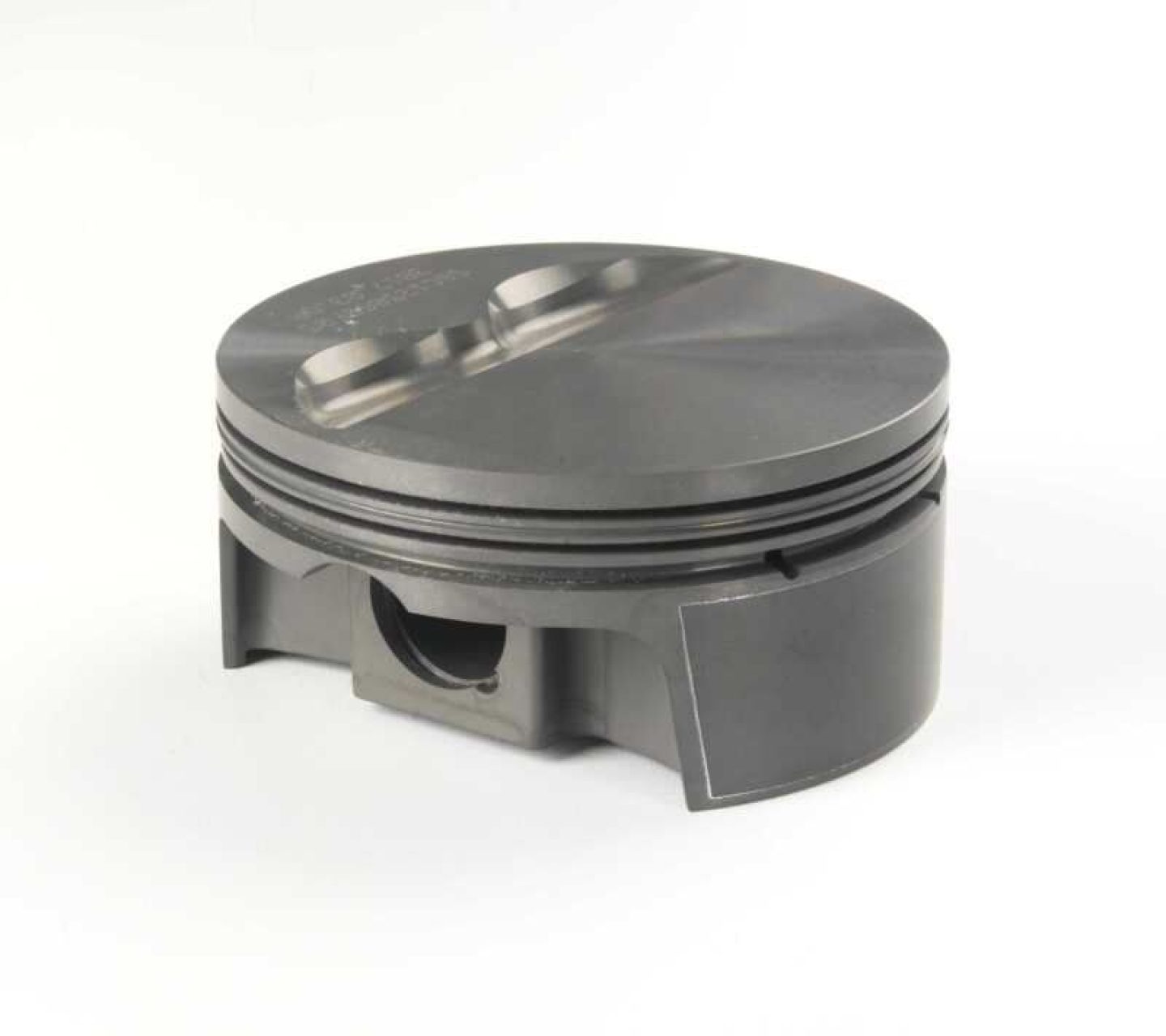

Engine Piston Kit

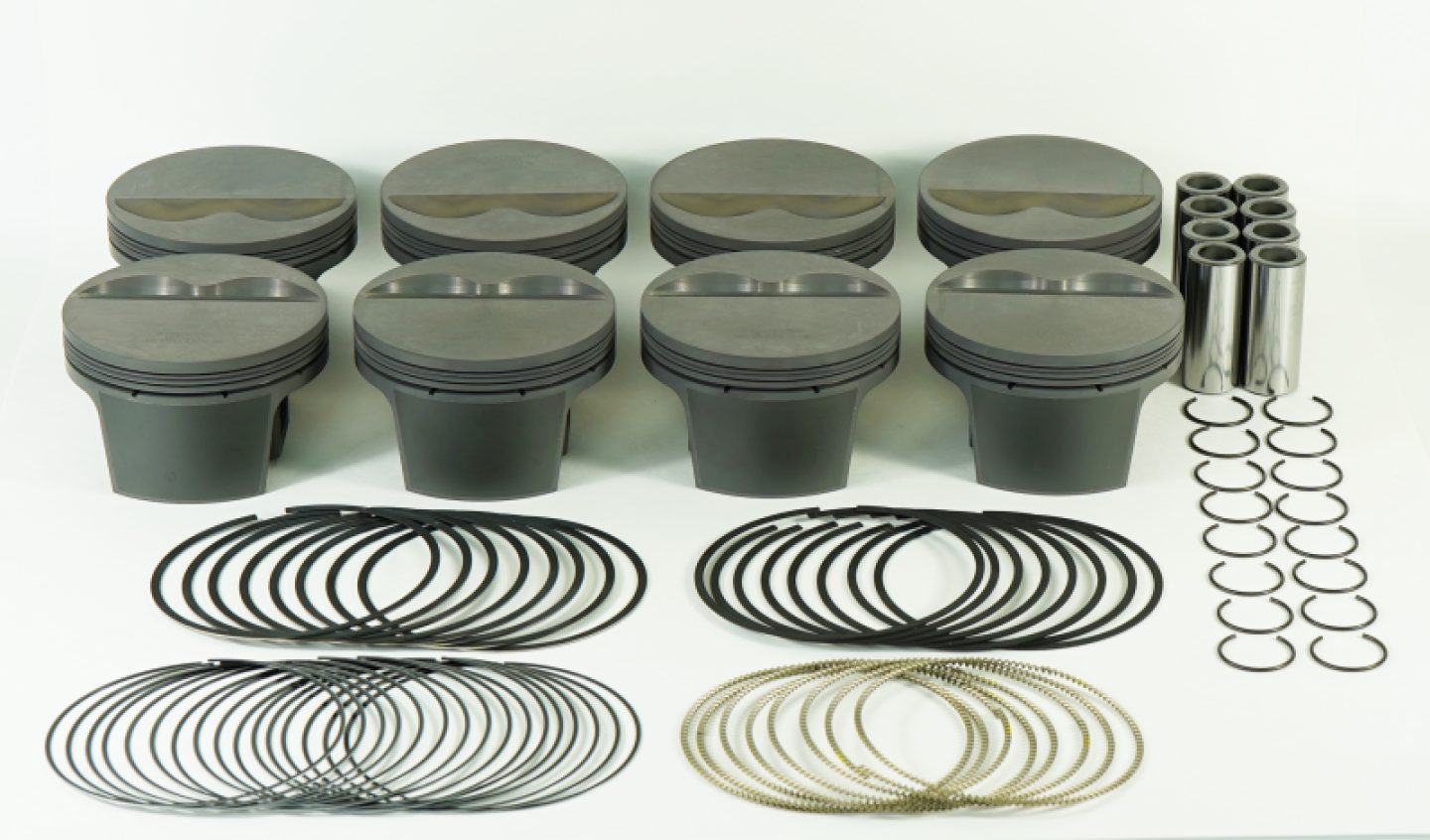

Mahle PowerPak piston and ring kits include forged pistons, low-drag rings, steel pins, and wire locks—all in one race-proven package. The pistons are hand-deburred and then coated with dry phosphate to protect against ring micro-welding and pin galling during initial startup. For additional performance, Mahle added its proprietary Grafal anti-friction coating to the piston skirts. These replacement packages are available in a wide variety of size options for fitment with specific engines and pistons.
Brand | Mahle |
Stroke | 3.480 in. |
Gapless | No |
File Fit | No |
Quantity | Sold as a kit. |
Part Type | Pistons |
Bore (in.) | 4.125 in. |
Rod Length | 6.000 in. |
Piston Style | Flat top, with two valve reliefs |
Product Line | Mahle PowerPak Piston and Ring Kits |
Piston Material | Forged aluminum |
Wrist Pin Style | Floating |
Oil Ring Thickness | 2.0mm |
Pin Diameter (in.) | 0.927 in. |
Top Ring Thickness | 1.0mm |
Wrist Pin Included | Yes |
Piston Ring Thickness | 1.00mm x 1.00mm x 2.00mm |
Piston Rings Included | Yes |
Second Ring Thickness | 1.0mm |
Piston Head Volume (cc) | +5.00cc |
Compression Height (in.) | 1.250 in. |
Summit Racing Part Number | MLE-930200425 |
Manufacturer's Part Number | 930200425 |
Wrist Pin Retainers Included | Yes |
Compatibility & Application Information | |
---|---|
Engine Type | V8 |
Engine Family | Chevy small block Gen I |
Engine Size | 5.7L/350 |
We do not have any specific fitment data for this part. This could be a generic item or if you need further clarification, please contact us for details to assist us with your compatibility requirements.
