Oil Catch Can Kit

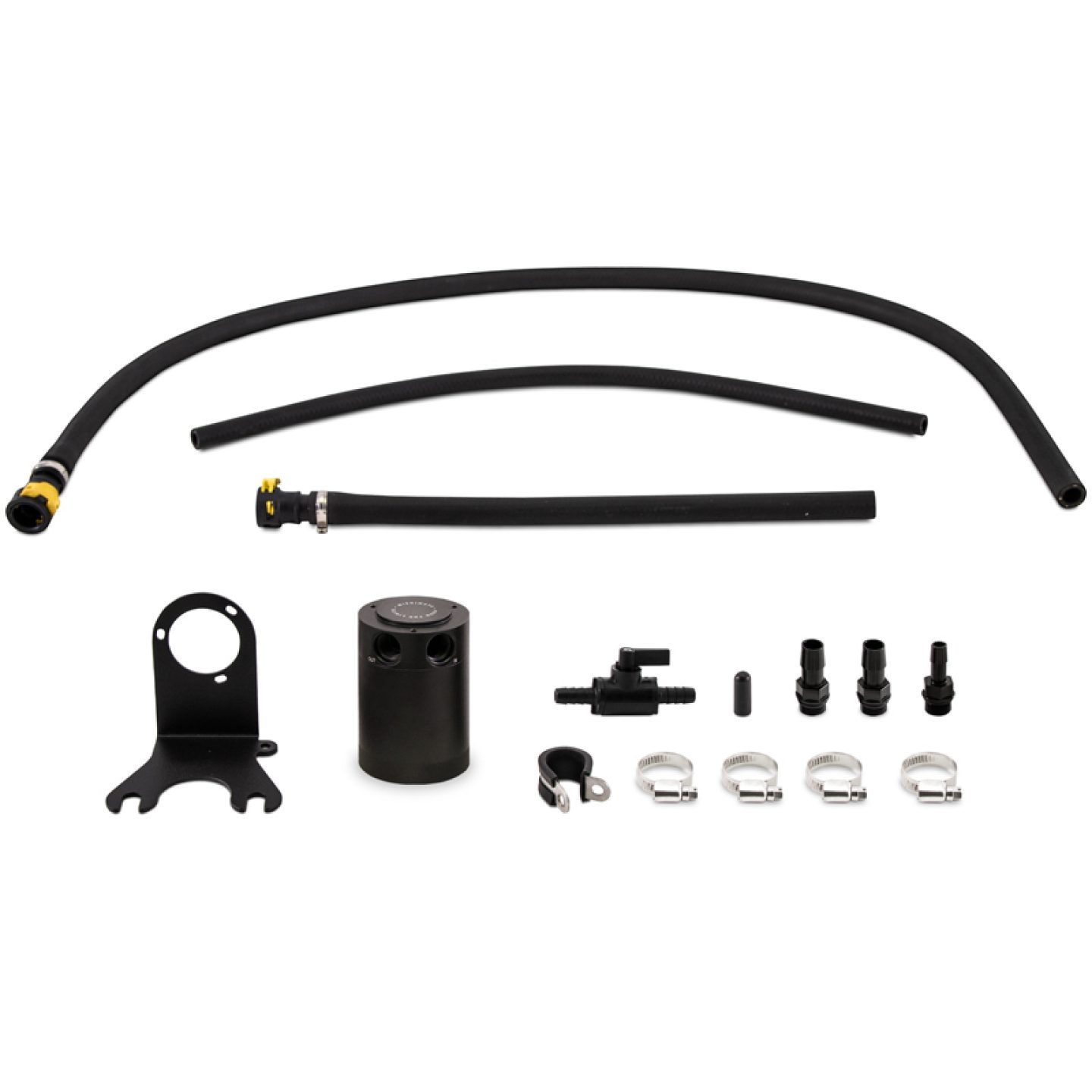

There's nothing worse than getting your 2018+ Jeep Wrangler JL halfway up a rock face, looking back to see your friendsft reactions, and seeing nothing but blue smoke. The 3.6L Pentastar is notorious for excessive amounts of blow-by entering the intake. This blow-by carries oil, fuel, and water vapor left over from combustion and too much of it causes smoking on inclines and while driving. This blow-by can also coat sensors and other intake components, reducing the performance of your engine and potentially causing knock. But Mishimoto has the solution. Our 2018+ Jeep Wrangler JL 3.6L direct-fit baffled oil catch can kit protects your engine by keeping blow-by out of the intake. This allows your engine to burn only the high-quality gas that you put in the tank. Our catch can employs a series of air turbulators, a baffle, and 50-micron bronze filter to clean the blow-by of vapors before it returns to your intake. This catch can kit is a direct fit for your Wrangler, with no cutting or other modifications required. Installation of this catch can takes less than an hour thanks to the pre-cut hoses and installed stock quick-disconnects. A custom engineered 2.5mm steel bracket mounts our catch can to the fender rail, isolating it from engine vibration and movement for a lifetime of service. Also included with this catch can is a drain kit. Simply remove the plug from the bottom of the catch can and connect the drain kit to empty the catch can from behind the front wheel, without having to open the hood. This convenient feature lets you drain the can and get out on the road or trail in minutes. The included rubber cap prevents dirt and debris from entering the valve, so you never have to worry about clogged valve slowing you down. Like all Mishimoto product, this 2018+ Jeep Wrangler JL 3.6L baffled oil catch can kit is protected by our Mishimoto Lifetime Warranty. So, whether you?re climbing a treacherous rock face, exploring the wilderness, or just driving to work, y
Baffled Oil Catch Can, fits Jeep Wrangler JL 3.6L 2018+
Engine Oil Catch Can Kit
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Oil Catch Can, Jeep Wrangler JL 3.6L Baffled Oil Catch Can, 2018+

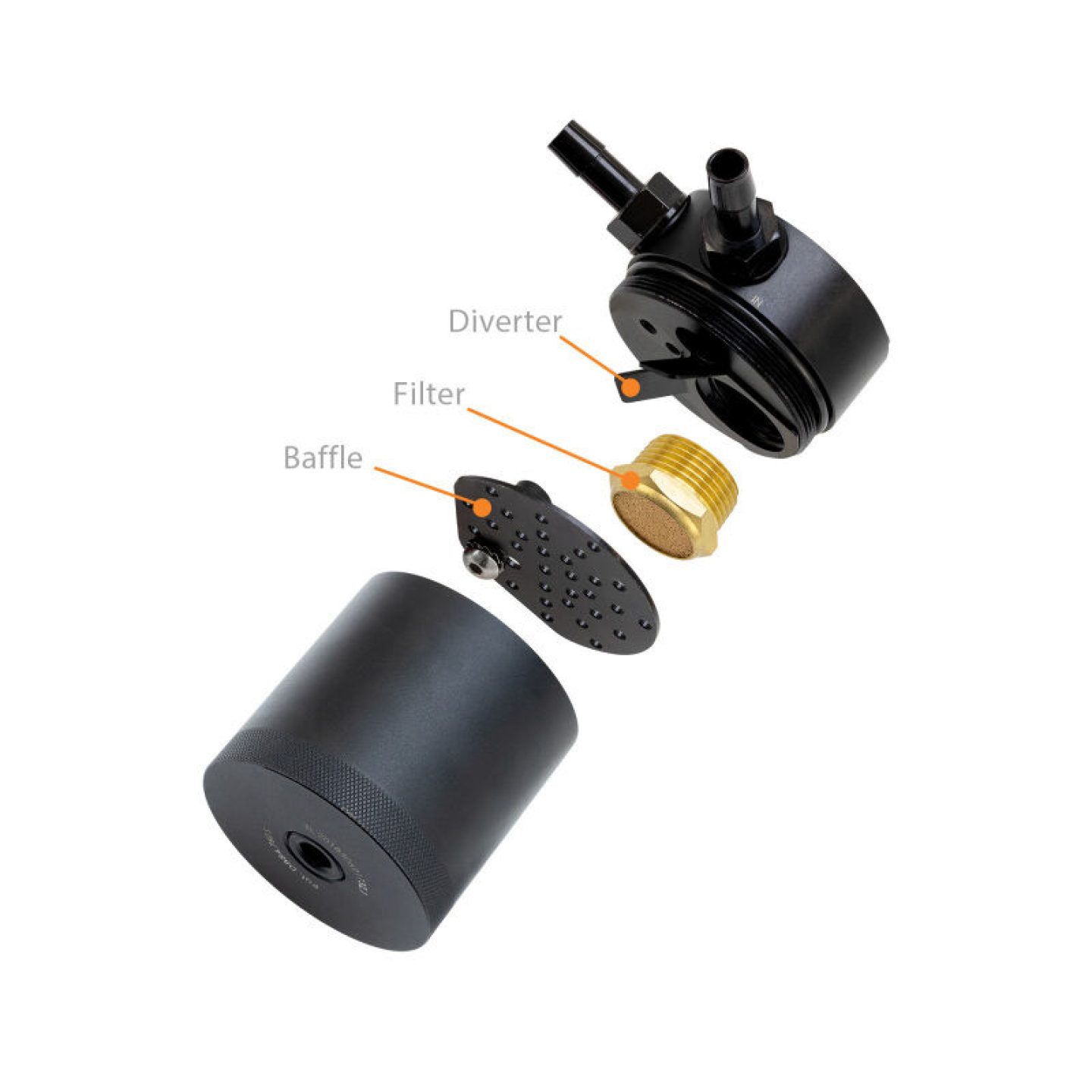

Mishimoto baffled oil catch cans are designed to separate oil particles from the PCV air that would normally have just been routed back to your intake. They feature custom grooves in the catch can's inlet that turbulates the air longer and ensures that all of the oil sinks to the bottom, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions. These catch cans are machined from 100 percent billet 6061 aluminum, and accept AN fittings at the inlet, outlet, and drain area—allowing for over 27 possible configurations. For maximum fitment options, the top cog mounting setup enables the cans to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for AN return to the oil pan. Mishimoto baffled oil catch cans are washable, unlike many other cans that require you to replace your filtration system, and they're available in a variety of colors. Order the model recommended to fit your vehicle, engine, and/or transmission application.
Brand | Mishimoto |
Manufacturer's Part Number | MMBCC-JLP-18PBE |
Part Type | Oil Catch Cans |
Product Line | Mishimoto Baffled Oil Catch Cans |
UPC | 811580034749 |
Separator Tank Shape | Round |
Capacity | 3 oz. |
Separator Tank Material | Aluminum |
Separator Tank Finish | Black |
Fitting Attachment 1 | Female threads |
Fitting Attachment 2 | Female threads |
Quantity | Sold as a kit. |
Mishimoto 2018+ Jeep Wrangler JL 3.6L Baffled Oil Catch Can | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
2020-2022 | Jeep | Gladiator | Overland, Rubicon, Sport, Sport S, Launch Edition, Mojave, Altitude, Willys, Willys Sport, 80th Anniversary, High Altitude | US |
2018-2021 | Jeep | Wrangler | Sport, Rubicon, Sport S, Unlimited Sport, Unlimited Sport S, Unlimited Sahara, Unlimited Rubicon, Unlimited Moab, Unlimited Rubicon 4xe, Unlimited Sahara 4xe, Unlimited High Altitude 4xe, Unlimited Willys Sport, Unlimited Willys, Unlimited Sahara Altitude, Unlimited Islander, Unlimited High Altitude, Unlimited Freedom, Unlimited 80th Anniversary, 80th Anniversary, Islander, Willys Sport, Willys, Freedom, Unlimited Sport Altitude, Unlimited Rubicon 392 | US |
2018 | Jeep | Wrangler JK | Rubicon, Sahara, Sport, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Sport S, Unlimited Sport S | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Universal | No |
Make | JEEP |
Model | WRANGLER |
Submodel | 80TH ANNIVERSARY |
Beginning Year | 2021 |
Ending Year | 2021 |
Engine Type | V6 |
Engine Family | Mopar Gas/Electric hybrid V6 |
Engine Size | 3.6L/220 |
Universal | No |
Make | JEEP |
Model | WRANGLER |
Submodel | FREEDOM |
Beginning Year | 2021 |
Ending Year | 2021 |
Engine Type | V6 |
Engine Family | Mopar Gas/Electric hybrid V6 |
Engine Size | 3.6L/220 |
Universal | No |
Make | JEEP |
Model | WRANGLER |
Submodel | FREEDOM |
Beginning Year | 2021 |
Ending Year | 2021 |
Engine Type | V6 |
Engine Family | Mopar V6 |
Engine Size | 3.6L/220 |
