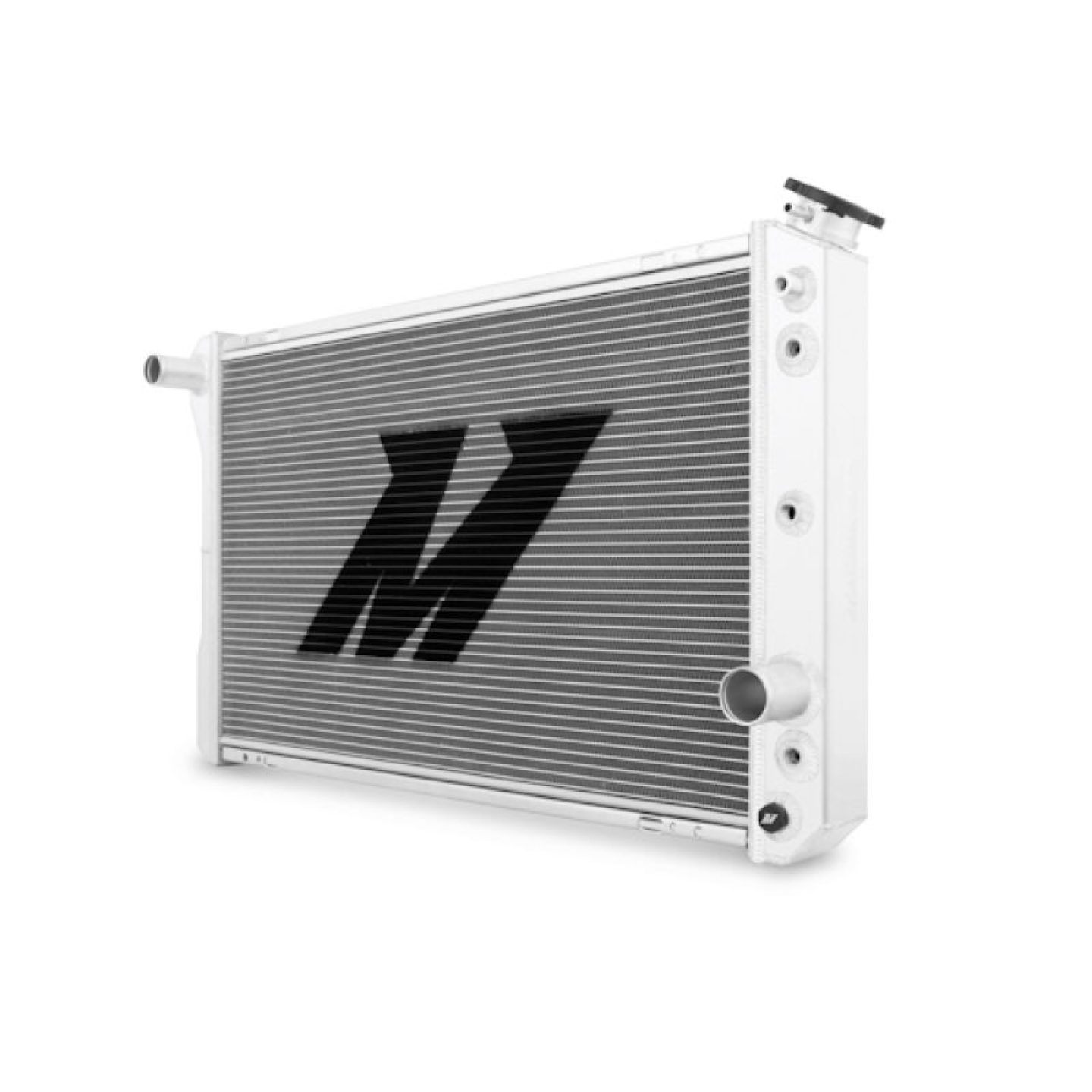

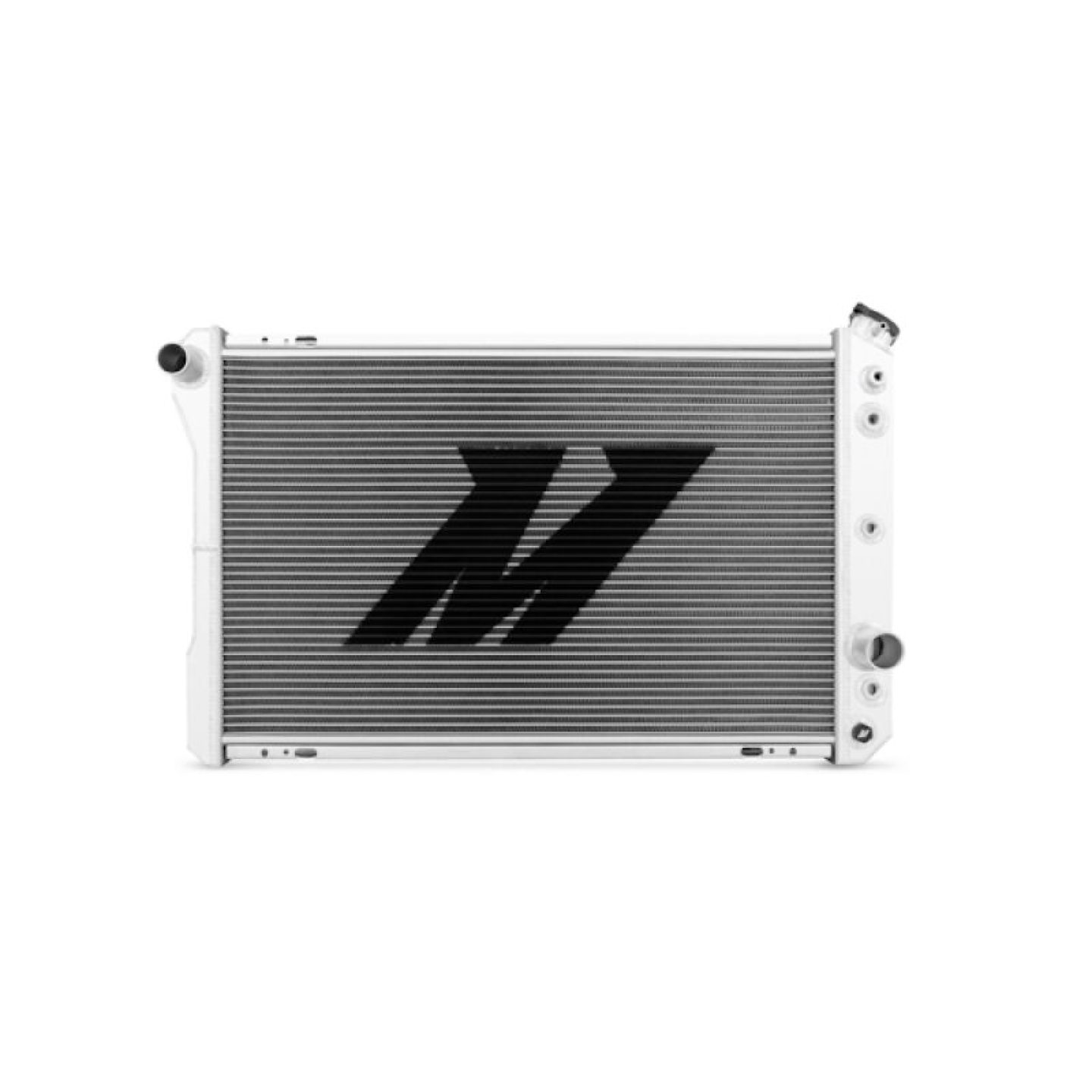

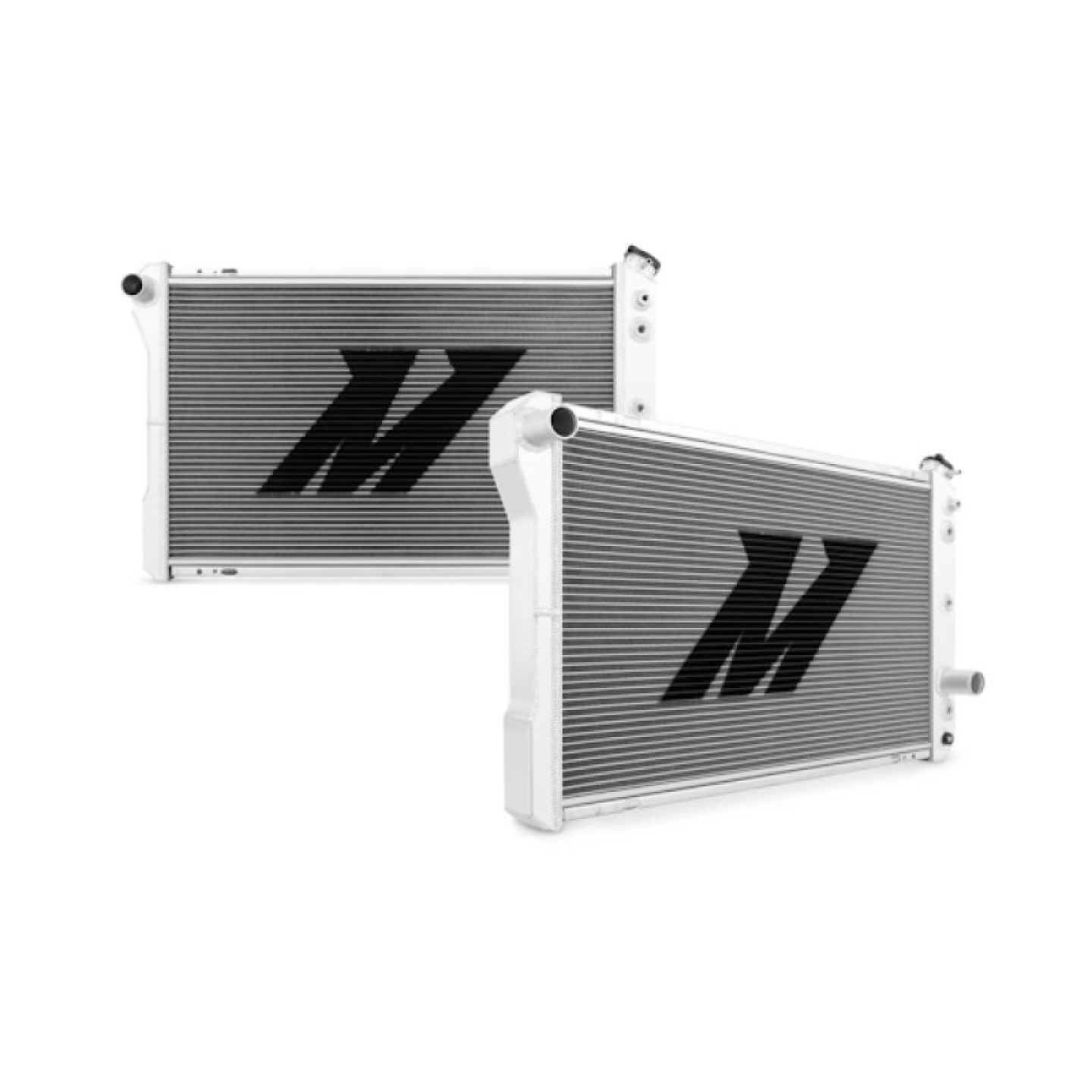

Mishimoto 82-92 Chevy Camaro / Pontiac Firebird X-Line Performance Aluminum Radiator
A street or track muscle car demands a reliable cooling system.Outfit your Chevrolet Camaro or Pontiac Firebird with the ultimate upgrade in cooling efficiency.The Mishimoto Aluminum Radiator utilizes a massive 3 row core with precision TIG welded aluminum end tanks for increased reliability and cooling efficiency.Not only will the Mishimoto radiator keep coolant temperatures at bay but the built in transmission cooler will improve the performance and extend the life of your transmission.The Mishimoto Aluminum Radiator is a direct fit product that requires no cutting or trimming and is protected by our lifetime warranty.
3-Row Performance Aluminum Radiator, fits Chevrolet Camaro / Pontiac Firebird 1982-1992
1983 Chevrolet Camaro 2.5 Liter M08, 1982 Chevrolet Camaro 2.5 Liter M24, 1984 Chevrolet Camaro 2.5 Liter M24, 1982-1985 Chevrolet Camaro 2.5 Liter M26, 1985-1986 Chevrolet Camaro 2.5 Liter M39, 1982 Chevrolet Camaro 2.5 Liter M67, 1985-1986 Chevrolet Camaro 2.5 Liter MB1, 1986 Chevrolet Camaro 2.5 Liter MC4, 1983-1984 Chevrolet Camaro 2.5 Liter MK4, 1983-1984 Chevrolet Camaro 2.5 Liter MK5, 1983-1984 Chevrolet Camaro 2.5 Liter MK6, 1985-1986 Chevrolet Camaro 2.5 Liter ML3, 1982-1983 Chevrolet Camaro 2.5 Liter THM200C/MV9, 1983-1986 Chevrolet Camaro 2.5 Liter THM700-R4/4L60/MD8, 1990-1992 Chevrolet Camaro 3.1 Liter M39, 1990-1992 Chevrolet Camaro 3.1 Liter MB1, 1990-1992 Chevrolet Camaro 3.1 Liter MK6, 1990-1992 Chevrolet Camaro 3.1 Liter THM700-R4/4L60/MD8, 1983 Chevrolet Camaro 5.0 Liter M08, 1982 Chevrolet Camaro 5.0 Liter M24, 1984 Chevrolet Camaro 5.0 Liter M24, 1982-1985 Chevrolet Camaro 5.0 Liter M26, 1985-1992 Chevrolet Camaro 5.0 Liter M39, 1982 Chevrolet Camaro 5.0 Liter M67, 1985-1992 Chevrolet Camaro 5.0 Liter MB1, 1986 Chevrolet Camaro 5.0 Liter MC4, 1983-1984 Chevrolet Camaro 5.0 Liter MK4, 1983-1984 Chevrolet Camaro 5.0 Liter MK5, 1983-1984 Chevrolet Camaro 5.0 Liter MK6, 1988-1992 Chevrolet Camaro 5.0 Liter MK6, 1985-1986 Chevrolet Camaro 5.0 Liter ML3, 1982-1983 Chevrolet Camaro 5.0 Liter THM200C/MV9, 1983-1992 Chevrolet Camaro 5.0 Liter THM700-R4/4L60/MD8, 1987-1992 Chevrolet Camaro 5.7 Liter M39, 1987-1992 Chevrolet Camaro 5.7 Liter MB1, 1988-1992 Chevrolet Camaro 5.7 Liter MK6, 1987-1992 Chevrolet Camaro 5.7 Liter THM700-R4/4L60/MD8, 1989 GMC P2500 5.7 Liter MPW, 1989 GMC P2500 5.7 Liter SM465/M20, 1989 GMC P2500 5.7 Liter THM400, 1989-1990 GMC P3500 5.7 Liter MPW, 1989-1990 GMC P3500 5.7 Liter SM465/M20, 1989-1990 GMC P3500 5.7 Liter THM400, 1990-1992 Pontiac Firebird 3.1 Liter M39, 1990-1992 Pontiac Firebird 3.1 Liter MB1, 1990-1992 Pontiac Firebird 3.1 Liter MK6 ...See Application Guide for Additional Fitments
Radiator
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Radiator, Crossflow, 3-row, Aluminum, Natural, Chevy, Pontiac, Each
Mishimoto performance radiators are designed and engineered to maximize cooling efficiency, boost engine functions, and, most of all, protect your engine from overheating. Many stock radiators can't handle the additional heat that comes higher horsepower levels. So, swap out your stock radiator for an all-aluminum Mishimoto. Key features and benefits of Mishimoto performance radiators include: * Available for universal and exact fit applications (no cutting or modifications required) * All-aluminum construction for optimal heat dissipation, improved strength, and reliability * Increased cooling capacity due to their massive core size * 100 percent brazed aluminum core for minimal distortion, low stress, and clean joints * Available in various sizes with 2-row or 3-row cores * TIG-welded for clean, strong welds and increased durability * Magnetic drain plugs capture metallic debris or fragments * Included high-pressure 1.3 bar cap raises the coolant boiling point for greater safety and efficiency * Automatic transmission and accessory coolers included where applicable
UPC | 748354018011 |
Brand | Mishimoto |

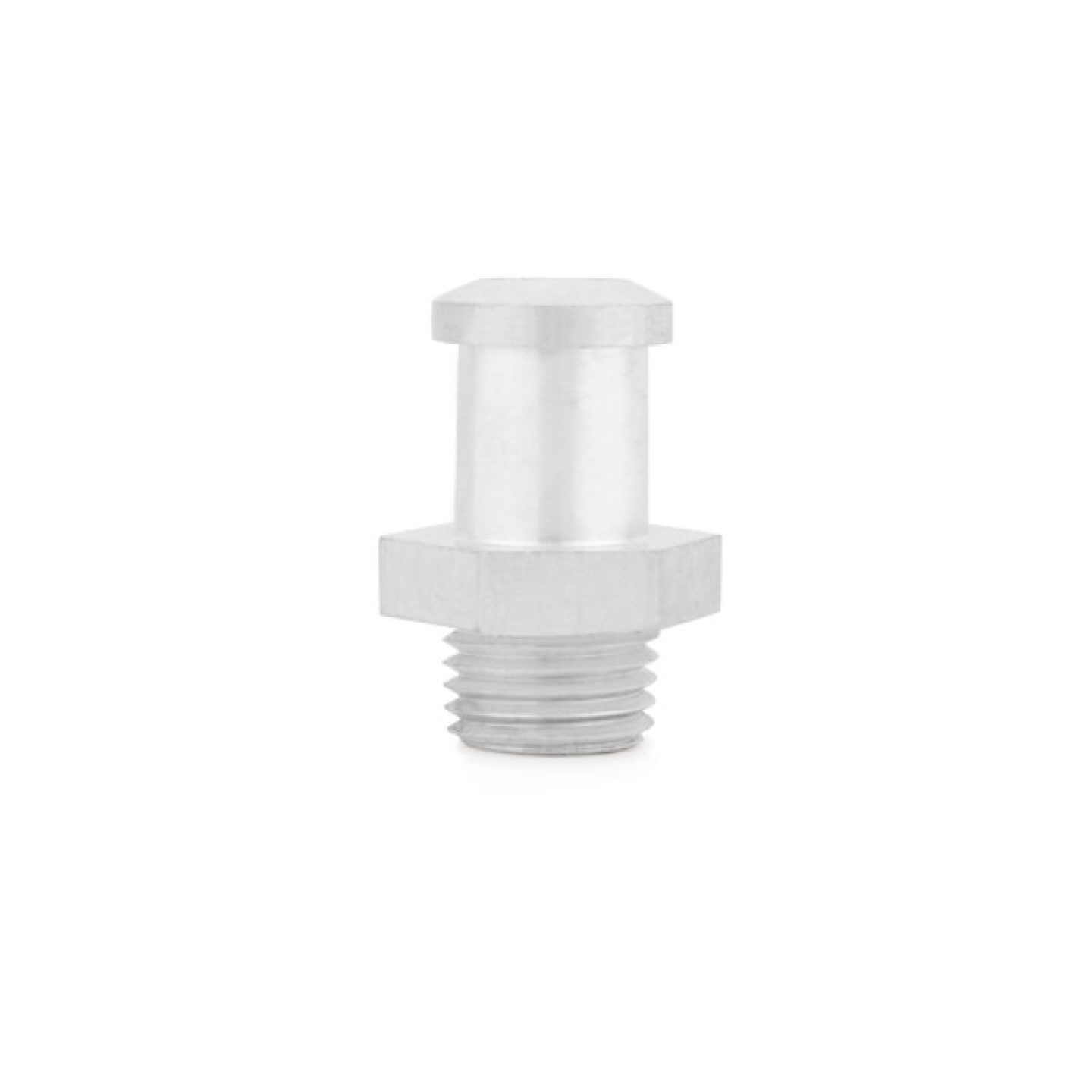

Notes | Includes radiator cap, magnetic drain plug, one 1/8 in. NPT plug, and one 1/4 in. NPT plug. |
Quantity | Sold individually. |
Part Type | Radiators |
Fan Included | No |
Product Line | Mishimoto Performance Radiators |
Row Quantity | 3 |
Inlet Location | Upper driver side |
Radiator Style | Crossflow |
Outlet Location | Lower passenger side |
Radiator Finish | Natural |
Core Width (in.) | 26.18 in. |
Core Height (in.) | 16.69 in. |
Radiator Material | Aluminum |
Overall Width (in.) | 31.50 in. |
Radiator Inlet Size | 1.340 in. |
Transmission Cooler | Yes |
Core Thickness (in.) | 2.05 in. |
Overall Height (in.) | 19.50 in. |
Radiator Outlet Size | 1.570 in. |
Radiator Cap Included | Yes |
Overall Thickness (in.) | 5.00 |
Manufacturer's Part Number | MMRAD-CAM-82X |
Trans Cooler Adapter Fittings Included | No |
Mishimoto 82-92 Chevy Camaro / Pontiac Firebird X-Line Performance Aluminum Radiator | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
1982-1992 | Chevrolet | Camaro | Berlinetta, Sport, Z28, Z28 Indianapolis 500 Pace Car, Iroc-Z, LT, Base, RS, RS Heritage Edition, Z28 Heritage Edition | US |
1989 | GMC | P2500 | Base, Value Van | US |
1989-1990 | GMC | P3500 | Base, Value Van | US |
1982-1992 | Pontiac | Firebird | Base, S/E, Trans Am, Formula, Trans Am GTA, Trans Am GTA SE | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Universal | No |
Make | CHEVROLET |
Model | CAMARO |
Submodel | BASE |
Beginning Year | 1988 |
Ending Year | 1988 |
Engine Size | 2.8L/173 |
Engine Family | GM V6 |
Engine Type | V6 |
Transmission | Automatic |
Universal | No |
Make | CHEVROLET |
Model | CAMARO |
Submodel | BASE |
Beginning Year | 1988 |
Ending Year | 1988 |
Engine Size | 2.8L/173 |
Engine Family | GM V6 |
Engine Type | V6 |
Liter | 2.8 |
CID | 173 |
Transmission | Automatic |
Drivetrain | RWD |
Engine VIN Code | S |
Universal | No |
Make | CHEVROLET |
Model | CAMARO |
Submodel | BASE |
Beginning Year | 1988 |
Ending Year | 1988 |
Engine Size | 2.8L/173 |
Engine Family | GM V6 |
Engine Type | V6 |
Liter | 2.8 |
CID | 173 |
Transmission | Manual |
Drivetrain | RWD |
Engine VIN Code | S |
