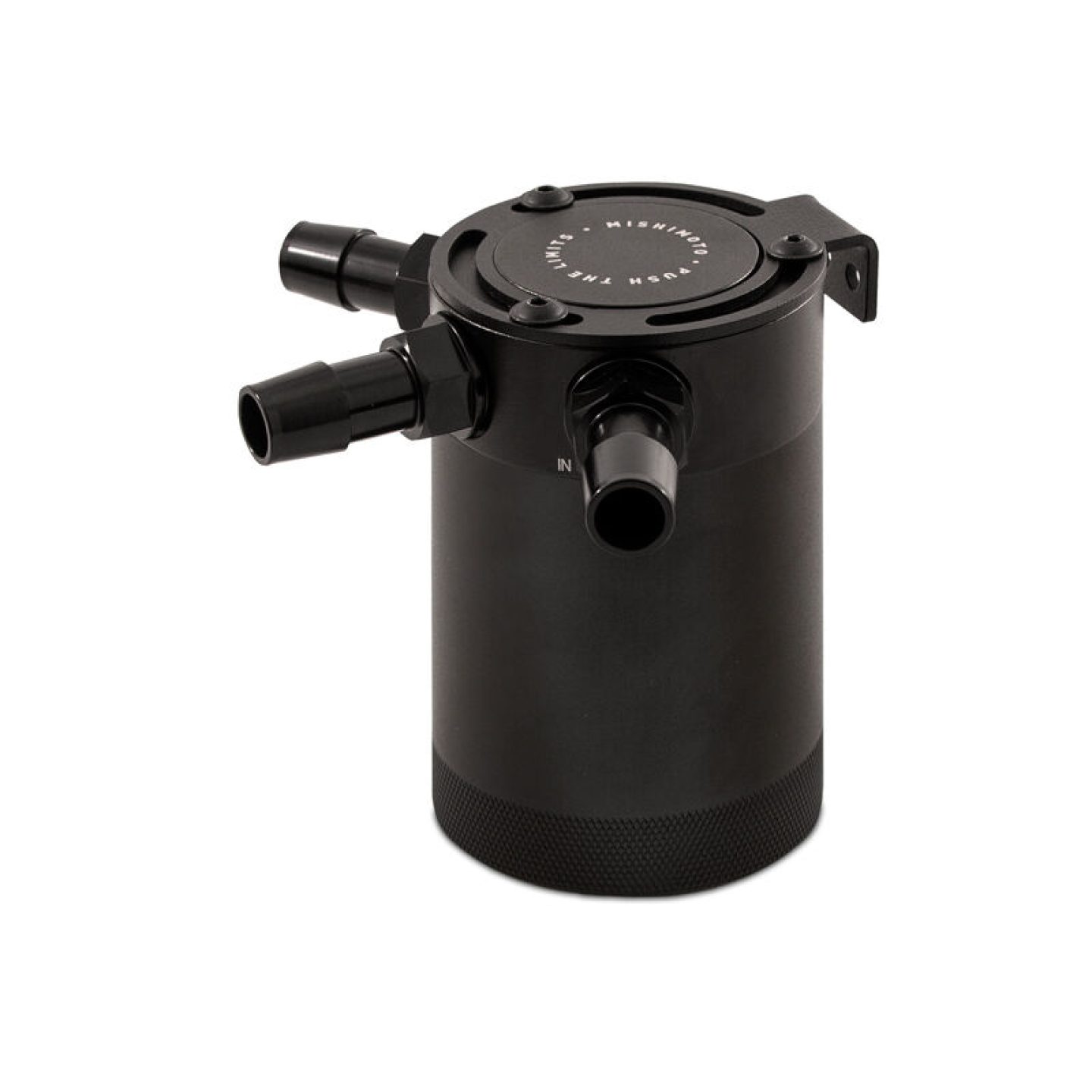

Mishimoto Compact Baffled Oil Catch Can - 3-Port
Mishimoto is proud to announce the release of our Compact Baffled Oil Catch Can, available in a two-port or three-port option. With years of oil catch can research and development time, Mishimoto has created the most effective compact oil catch can on the market. The Mishimoto Compact Baffled Oil Catch Can was designed to separate oil particles from the PCV/CCV air that would normally have just been routed back to your intake. The internal air diverter turbulates the air longer and ensures all the oil sinks to the bottom of the can, leaving nothing but clean air to pass through the 50 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions. This oil catch can features two ports, one inlet and one outlet, for easy installation on CCV and PCV systems. The 100-percent billet, 6061 aluminum can features 3/8in NPT threads at the inlet, outlet, and drain area and includes two black nylon fittings to make installation effortless. For maximum fitment options, the top mounting setup allows the can to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for a return to the oil pan. The can is also 100-percent washable, unlike many other cans that require you to replace your filtration system.Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what We've seen in the bottom of our catch cans, you won't want that draining back into your oil either.
Mishimoto Compact Baffled Oil Catch Can, 3-Port, Black
Engine Oil Separator
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Oil Catch Can, Mishimoto Compact Baffled Oil Catch Can, 3-Port, Black
Mishimoto baffled oil catch cans are designed to separate oil particles from the PCV air that would normally have just been routed back to your intake. They feature custom grooves in the catch can's inlet that turbulates the air longer and ensures that all of the oil sinks to the bottom, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions. These catch cans are machined from 100 percent billet 6061 aluminum, and accept AN fittings at the inlet, outlet, and drain area—allowing for over 27 possible configurations. For maximum fitment options, the top cog mounting setup enables the cans to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for AN return to the oil pan. Mishimoto baffled oil catch cans are washable, unlike many other cans that require you to replace your filtration system, and they're available in a variety of colors. Order the model recommended to fit your vehicle, engine, and/or transmission application.
UPC | 811580032493 |
Brand | Mishimoto |
Notes | 3-port design can. |
Capacity | 3 oz. |
Quantity | Sold as a kit. |
Part Type | Oil Catch Cans |
Product Line | Mishimoto Baffled Oil Catch Cans |
Fitting Size 1 | M16 x 1.5 |
Fitting Size 2 | M16 x 1.5 |
Fitting Attachment 1 | Female threads |
Fitting Attachment 2 | Female threads |
Separator Tank Shape | Round |
Separator Tank Finish | Black |
Separator Tank Material | Aluminum |
Manufacturer's Part Number | MMBCC-CBTHR-BK |
Separator Tank Height (in.) | 3.80 in. |
Separator Tank Diameter (in.) | 2.50 in. |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Universal | Yes |
