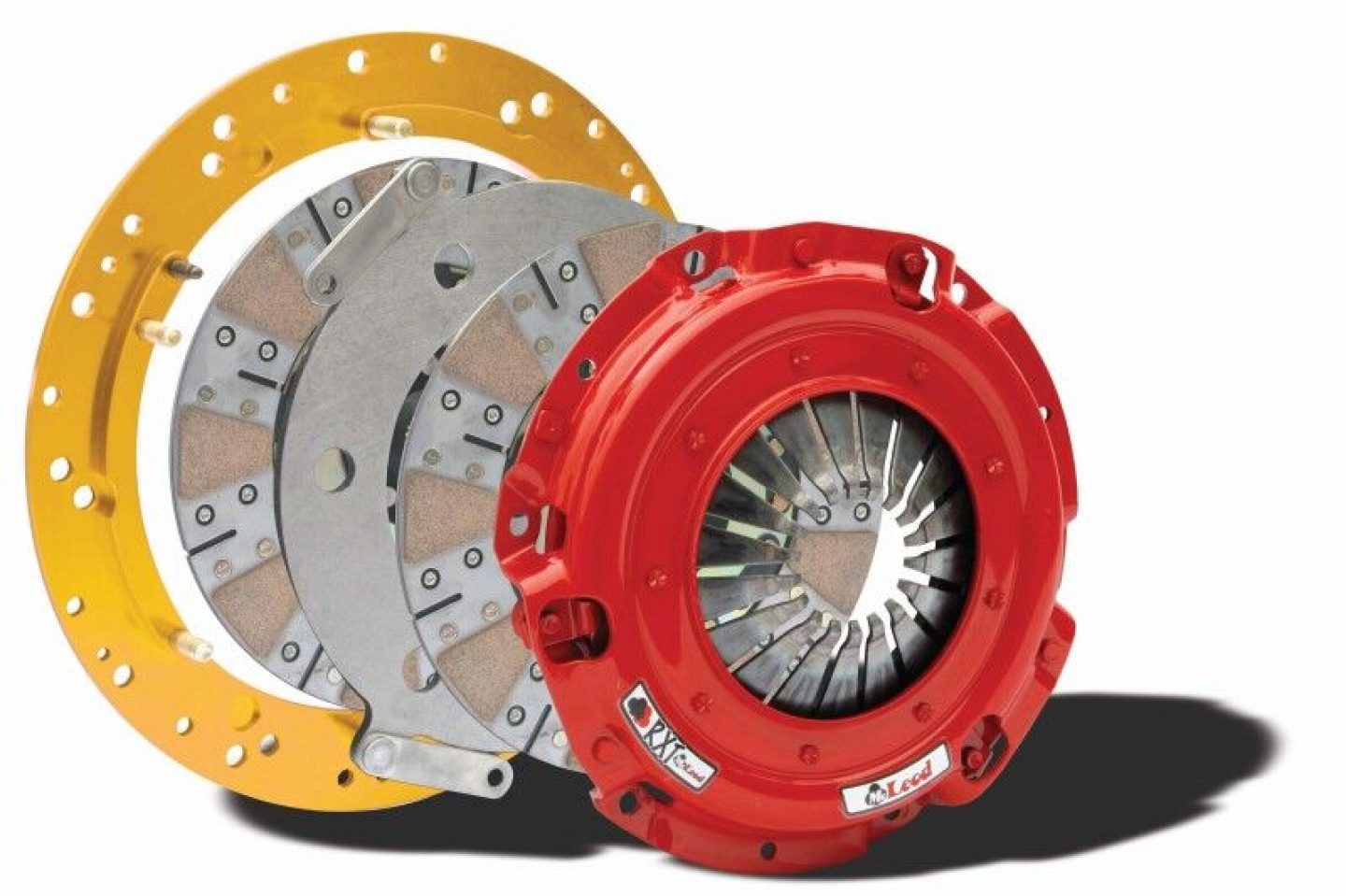

Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ¼ mile passes then drive back home, the RXT is what you’ll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.
RXT Twin Disc:Aluminum Flywheel:1997-2013 LS-X 6 Bolt Crank:0Bal:168T:1-1/8x26
Chevrolet: Camaro 98 - 02 5.7 L Engine, Chevrolet: Camaro 10 - 13 6.2 L Engine, Chevrolet: Corvette 97 - 04 5.7 L Engine, Chevrolet: Corvette 05 - 07 6 L Engine, Chevrolet: Corvette 08 - 13 6.2 L Engine, Chevrolet: Corvette 06 - 13 7 L Engine, Chevrolet: SSR 05 - 06 6 L Engine, Pontiac: Firebird 98 - 02 5.7 L Engine, Pontiac: GTO 04 - 04 5.7 L Engine, Pontiac: GTO 05 - 06 6 L Engine
Transmission Clutch and Flywheel Kit
McLeod RXT Street Twin clutch kits are ideal for the extreme horsepower enthusiast who wants performance and economy. Capable of handling up to 1,000 hp, the RXT Street Twin clutches are for those who've kicked it up another notch—but still require streetability. The ceramic facing on the clutch discs provides slightly aggressive engagement with a soft pedal effort, making these clutches suitable for most street performance enthusiasts. Match your vehicle specs to the correct model from McLeod.
Additional features include:
Brand | McLeod Racing |
Manufacturer's Part Number | 6305507M |
Part Type | Clutch Kits |
Product Line | McLeod RXT Street Twin Clutch Kits |
UPC | 887753012227 |
Clutch Usage | Performance |
Clutch Disc Quantity | 2 |
Flywheel Included | Yes |
Input Spline Quantity | 26 |
Input Shaft Diameter | 1.125 in. |
Disc Diameter (in.) | 9.688 in. |
Disc Diameter (mm) | 246mm |
Disc Material | Ceramic |
Disc Style | Full face |
Hub Style | Solid |
Pressure Plate Style | Diaphragm |
Throwout Bearing Included | No |
Alignment Tool Included | Yes |
Pilot Bushing Included | No |
Flywheel Material | Billet aluminum |
Ring Gear Tooth Quantity | 168-tooth |
Flywheel Bolt Quantity | 6 |
Counterweight Assist | No |
Mounting Hardware Included | No |
Quantity | Sold as a kit. |
Compatibility & Application Information | |
---|---|
Make | CADILLAC |
Model | CTS |
Submodel | V |
Beginning Year | 2004 |
Ending Year | 2005 |
Engine Type | V8 |
Liter | 5.7 |
CID | 346 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 5.7L/346 |
Application Notes | Transmission Control Type: Manual |
Engine VIN Code | S |
Make | CADILLAC |
Model | CTS |
Submodel | V |
Beginning Year | 2006 |
Ending Year | 2007 |
Engine Type | V8 |
Liter | 6.0 |
CID | 364 |
CC | 5967 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 6.0L/364 |
Application Notes | Transmission Control Type: Manual |
Engine VIN Code | U |
Make | CHEVROLET |
Model | CAMARO |
Submodel | SS |
Beginning Year | 2010 |
Ending Year | 2015 |
Engine Type | V8 |
Liter | 6.2 |
CID | 376 |
CC | 6162 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 6.2L/376 |
Application Notes | Transmission Control Type: Manual |
Engine VIN Code | J |
Make | CHEVROLET |
Model | CAMARO |
Submodel | SS |
Beginning Year | 2010 |
Ending Year | 2015 |
Engine Type | V8 |
Liter | 6.2 |
CID | 376 |
CC | 6162 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 6.2L/376 |
Application Notes | Transmission Control Type: Manual |
McLeod RXT Street Twin Aluminum LS Eng 1-1/8 X 26 Spl Brz Facing 6 Bolt Crank 168 | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1997 | Chevrolet | C1500 | Base | US |
1997 | Chevrolet | C2500 | Cheyenne | US |
1997 | Chevrolet | K1500 | Cheyenne | US |
1997 | Chevrolet | P30 | Base | US |
1997 | Chevrolet | K1500 | WT | US |
1997 | Chevrolet | C1500 | WT | US |
1997 | Chevrolet | C3500 | Silverado | US |
1997 | Chevrolet | K1500 | Silverado | US |
1997 | Chevrolet | K2500 | Cheyenne | US |
1997 | Chevrolet | K1500 | Base | US |
1997 | Chevrolet | K3500 | Silverado | US |
1997 | Chevrolet | C1500 | Silverado | US |
1997 | Chevrolet | K2500 | Base | US |
1997 | Chevrolet | K2500 | Silverado | US |
1997 | Chevrolet | K3500 | Cheyenne | US |
1997 | Chevrolet | Corvette | Base | US |
1997 | Chevrolet | C3500 | Cheyenne | US |
1997 | Chevrolet | C2500 | Base | US |
1997 | Chevrolet | C1500 | Cheyenne | US |
1997 | Chevrolet | C2500 | Silverado | US |
1997 | Chevrolet | Camaro | Z28 | US |
1997 | Chevrolet | C3500 | Base | US |
1997 | Chevrolet | K3500 | Base | US |
1998 | Chevrolet | C3500 | Cheyenne | US |
1998 | Chevrolet | C3500 | Silverado | US |
1998 | Chevrolet | K2500 | Silverado | US |
1998 | Chevrolet | K3500 | Silverado | US |
1998 | Chevrolet | Camaro | Z28 | US |
1998 | Chevrolet | C2500 | Cheyenne | US |
1998 | Chevrolet | K1500 | WT | US |
1998 | Chevrolet | C2500 | Silverado | US |
1998 | Chevrolet | P30 | Base | US |
1998 | Chevrolet | Corvette | Indianapolis 500 Pace Car | US |
1998 | Chevrolet | K1500 | Silverado | US |
1998 | Chevrolet | C1500 | Silverado | US |
1998 | Chevrolet | C1500 | WT | US |
1998 | Chevrolet | K2500 | Cheyenne | US |
1998 | Chevrolet | K3500 | Cheyenne | US |
1998 | Pontiac | Firebird | Formula | US |
1998 | Chevrolet | Camaro | Z28 SS | US |
1998 | Chevrolet | C1500 | Cheyenne | US |
1998 | Chevrolet | K2500 | WT | US |
1998 | Pontiac | Firebird | Trans Am | US |
1998 | Chevrolet | C2500 | WT | US |
1998 | Chevrolet | K1500 | Cheyenne | US |
1998 | Chevrolet | Corvette | Base | US |
1999 | GMC | Sierra 2500 | SLE | US |
1999 | Chevrolet | C2500 | LS | US |
1999 | Chevrolet | Silverado 2500 | LS | US |
1999 | GMC | P3500 | Base | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
