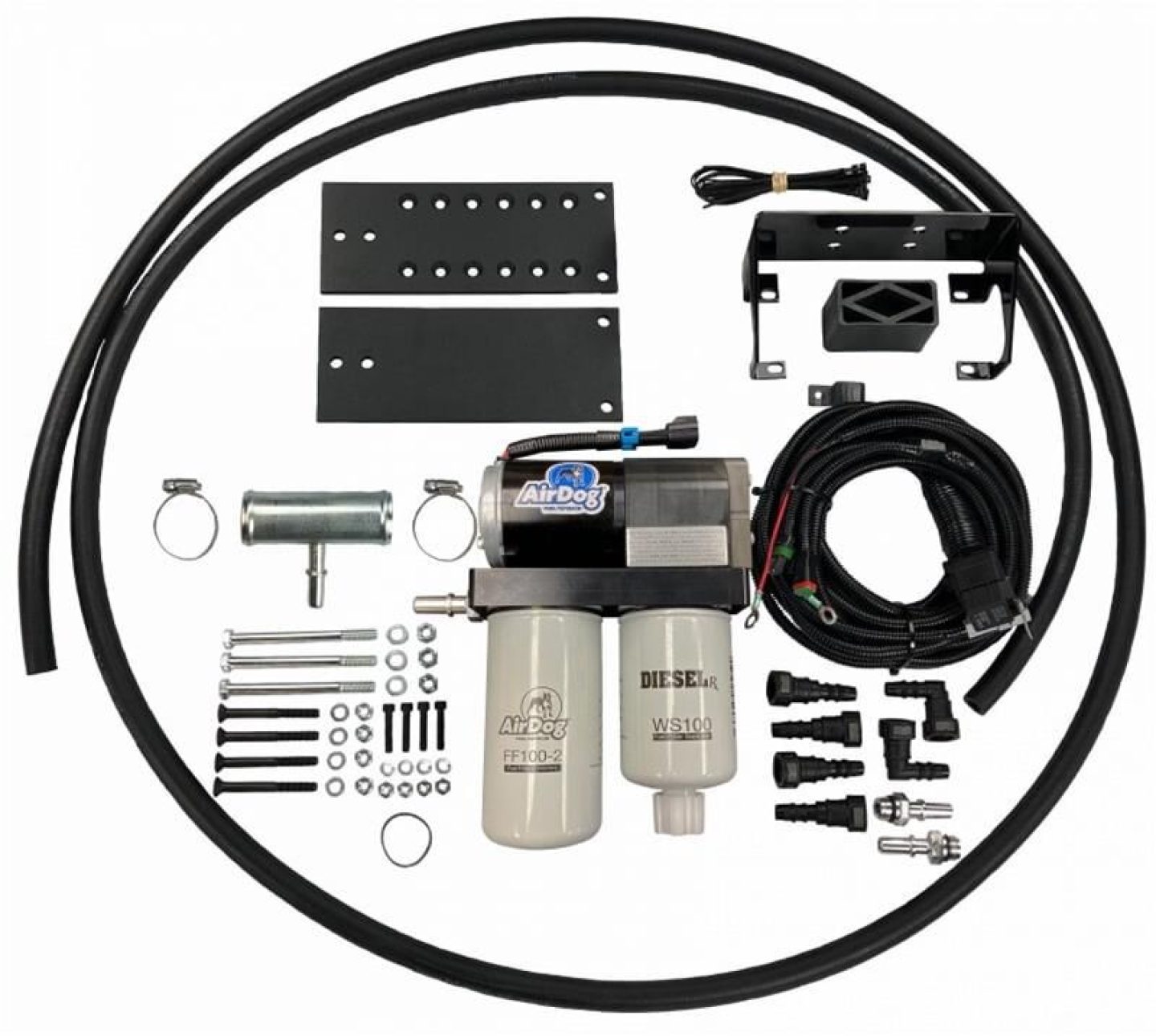

This is the AirDog I FP-100-4G fuel system for the 2001-2010 Chevy/GMC Duramax 6.6L. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. This system utilizes the factory suction port in the fuel module for suction and plugs into the factory fuel line on the pressure side to supply fuel to the CP3 injection pump. The return is sent back to the tank through a filler neck tee. This is one of the easiest fuel systems to install. This is a 100GPH (Gallon Per Hour) lift pump system. Check out our installation manual for a list of parts that are included with this kit.
AirDog® recommends that a certified diesel shop technician install this product. Please note, if the end user performs the installation, it is recommended they have basic knowledge on how electric fuel systems operate and function. Failure to properly set up this fuel system may result in a voided warranty
The Original AirDog® uses a ball and spring on the return side of the pump to regulate fuel pressure. The pressure for this application is 8-10psi. The fuel pressure is not adjustible other than stretching the spring for higher pressure or cutting the spring for lower pressure.

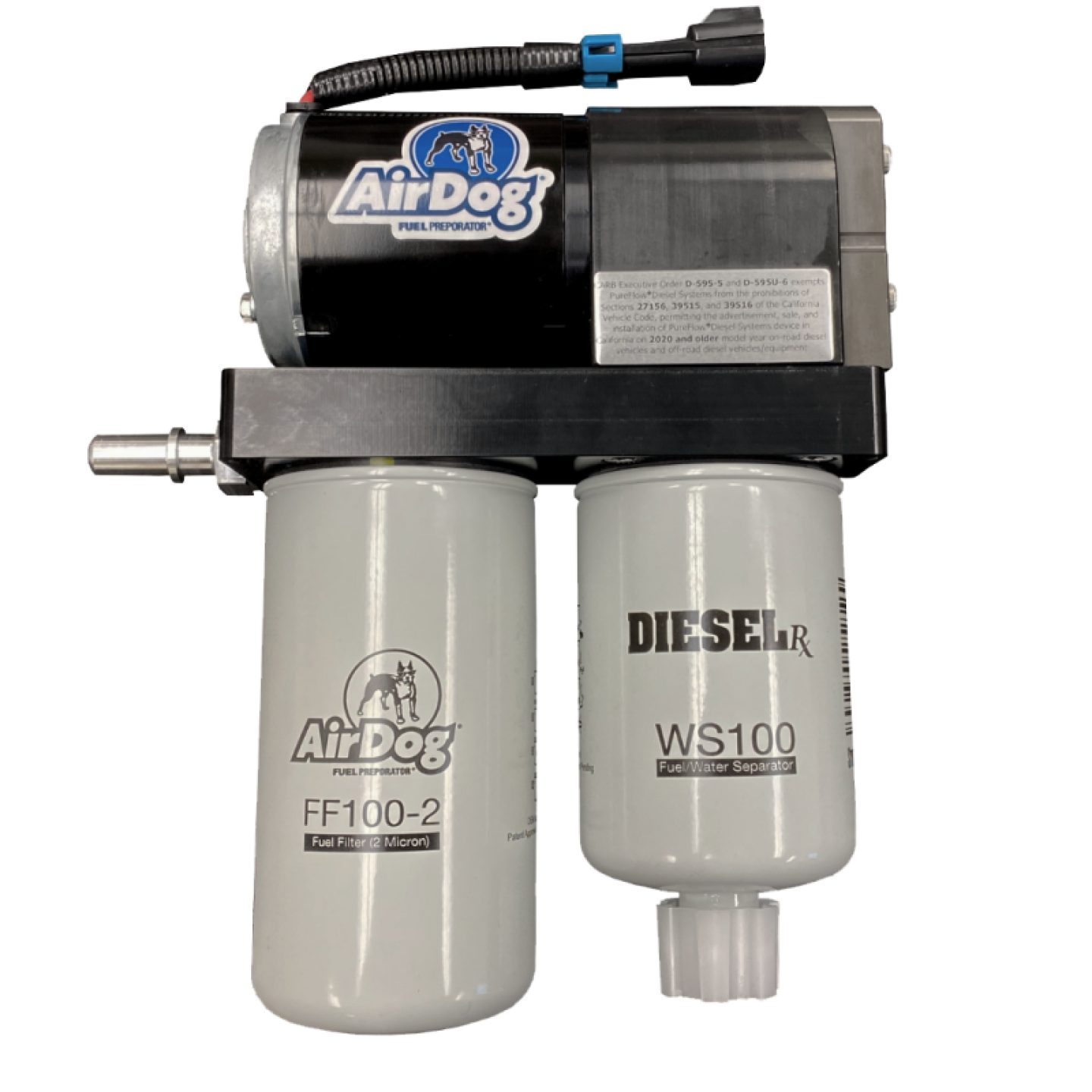

The AirDog® draws fuel from the tank from the factory tank fitting for the FP-100-4G and a high flow suction tube for the FP-150-4G. The fuel is then pulled through a water separator before being pressurized through the Gerotor pump. The pressurized fuel is sent through the 2 micron fuel filter before being sent to the engine. The pump maintains pressure through a high flow ball and spring regulator behind the tank fitting in the filter base.
YEAR | ENGINE |
---|---|
2010 | GM 6.6L DURAMAX LMM |
2009 | GM 6.6L DURAMAX LMM |
2008 | GM 6.6L DURAMAX LMM |
2007.5 | GM 6.6L DURAMAX LMM |
2007 | GM 6.6L DURAMAX LMM |
2007 | GM 6.6L DURAMAX LBZ |
2006 | GM 6.6L DURAMAX LLY |
2006 | GM 6.6L DURAMAX LBZ |
2005 | GM 6.6L DURAMAX LLY |
2004.5 | GM 6.6L DURAMAX LLY |
2004 | GM 6.6L DURAMAX LB7 |
2003 | GM 6.6L DURAMAX LB7 |
2002 | GM 6.6L DURAMAX LB7 |
2001 | GM 6.6L DURAMAX LB7 |
This is the AirDog I FP-100-4G fuel system for the 2001-2010 Chevy/GMC Duramax 6.6L. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. This system utilizes the factory suction port in the fuel module for suction and plugs into the factory fuel line on the pressure side to supply fuel to the CP3 injection pump. The return is sent back to the tank through a filler neck tee. This is one of the easiest fuel systems to install. This is a 100GPH (Gallon Per Hour) lift pump system. Check out our installation manual for a list of parts that are included with this kit.
AirDog® recommends that a certified diesel shop technician install this product. Please note, if the end user performs the installation, it is recommended they have basic knowledge on how electric fuel systems operate and function. Failure to properly set up this fuel system may result in a voided warranty
The Original AirDog® uses a ball and spring on the return side of the pump to regulate fuel pressure. The pressure for this application is 8-10psi. The fuel pressure is not adjustible other than stretching the spring for higher pressure or cutting the spring for lower pressure.
The AirDog® draws fuel from the tank from the factory tank fitting for the FP-100-4G and a high flow suction tube for the FP-150-4G. The fuel is then pulled through a water separator before being pressurized through the Gerotor pump. The pressurized fuel is sent through the 2 micron fuel filter before being sent to the engine. The pump maintains pressure through a high flow ball and spring regulator behind the tank fitting in the filter base.
