Rear HQ CO 67-69 F-

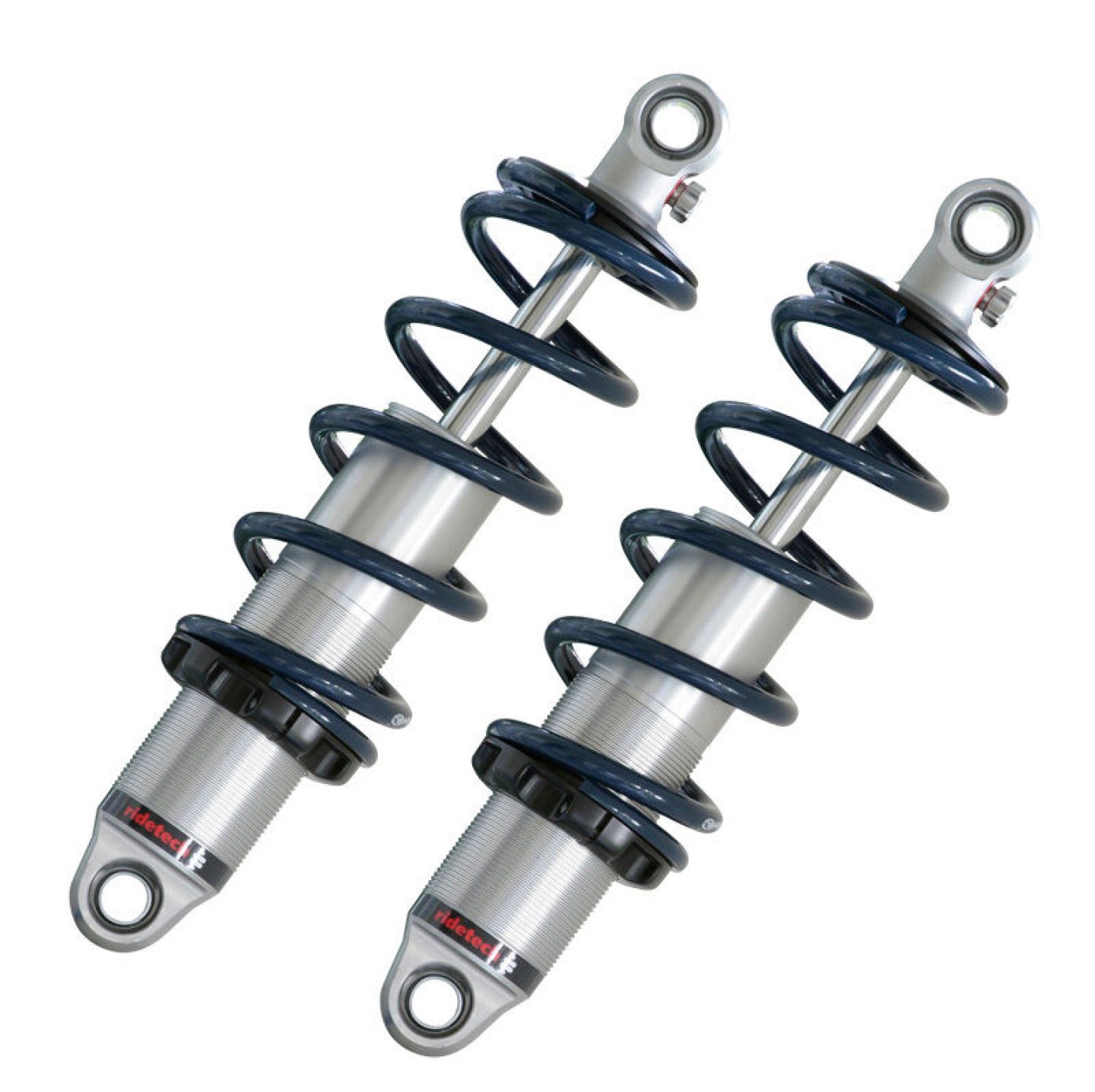

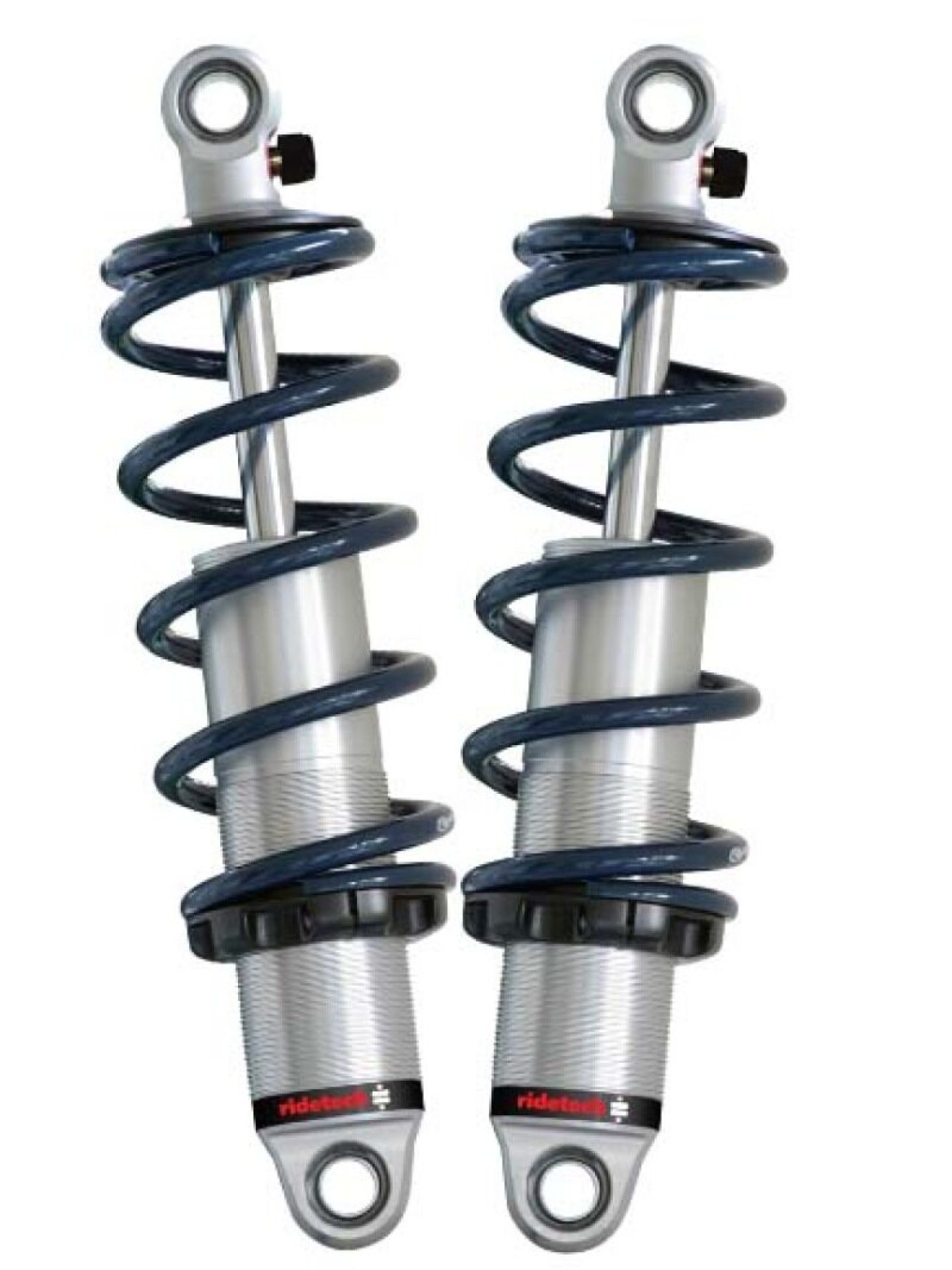

Rear HQ Coil-Overs 1967-1969 GM F-Body . For use with Ridetech 4-Link. Includes a pair of rebound adjustable shocks, springs, spring mounts and delrin spring washers.
1967-1969 Camaro & Firebird
Coilover Spring and Shock Assembly
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Coilover, HQ Series, 4-Link, 200 lb./in. Spring Rate, Chevy, Pontiac, Rear, Kit

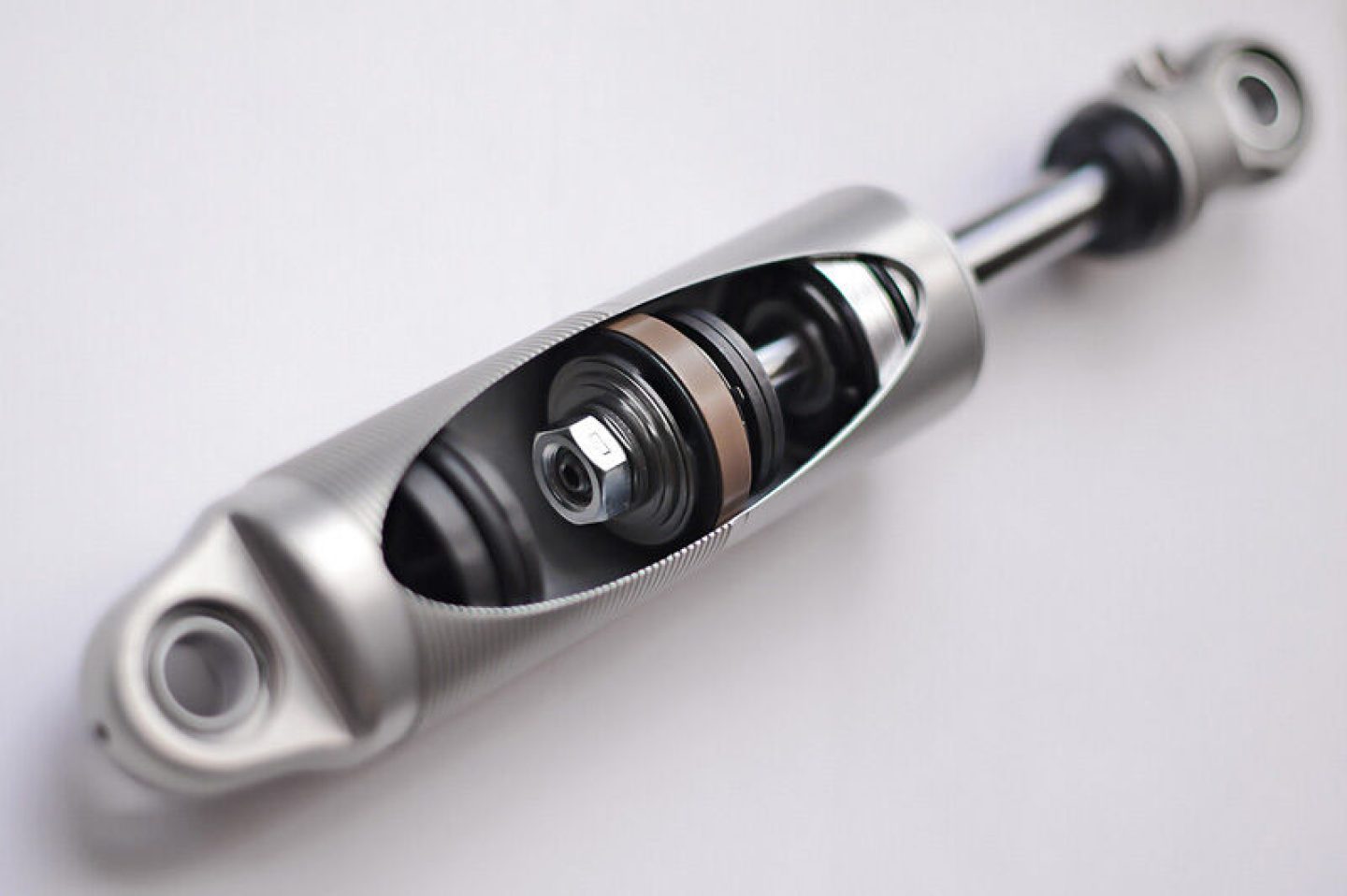

RideTech HQ Series 4-Link coilovers feature a monotube gas pressure design that offers fade-free performance. Their springs are made of high-tensile premium steel that's CNC cold-wound. They weigh less, are more resistant to bowing, and have increased travel with a durable powdercoated finish. Machined from impact-forged aluminum for superior strength, these shocks feature a large piston that provides outstanding ride quality, a double-sealed rod guide with a dust cover that eliminates oil leakage, and an anodized finish that protects against corrosion. RideTech HQ Series 4-Link coilovers give hot rodders the ultimate in ride quality, handling, and performance. Order the kit designed for fitment on your vehicle application.
Brand | RideTech |
Notes | This coil-over kit is designed to be used with Ridetech Airbar 4-link kit part number ART-11167199. |
Quantity | Sold as a kit. |
Part Type | Coilover Kits |
Gas Charged | Yes |
Lower Mount | Eyelet |
Upper Mount | Eyelet |
Product Line | RideTech HQ Series 4-Link Coilovers |
Bushing Color | Natural |
Spring Finish | Black |
Internal Design | Monotube |
Shocks Included | Yes |
Bushing Material | Spherical bearing |
Welding Required | No |
Hardware Included | Yes |
Shock Body Finish | Clear anodized |
Adjustable Valving | Yes |
Shock Body Material | Aluminum |
Crossmember Included | No |
Coilover Kit Position | Rear |
Extended Length (in.) | 16.42 |
Spring Rate (lbs/in.) | 200 lbs./in. |
Collapsed Length (in.) | 11.85 |
Coilover Springs Included | Yes |
Manufacturer's Part Number | 11166510 |
Number of Valving Selections | 24 |
Adjustable Mounting Bracket Included | No |
Ridetech 67-69 Camaro and Firebird Rear HQ Series CoilOver Pair | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
1967-1969 | Chevrolet | Camaro | Base, RS, SS, Z28 | US |
1967-1969 | Pontiac | Firebird | Base, 400, HO, Sprint, 326, 350, 350 HO, Trans Am | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Universal | No |
Make | CHEVROLET |
Model | CAMARO |
Submodel | BASE |
Beginning Year | 1967 |
Ending Year | 1967 |
Engine Type | V8 |
CC | 6489 |
CID | 396 |
Liter | 6.5 |
Engine Size | 6.5L/396 |
Engine Family | Chevy big block Mark IV |
Drivetrain | RWD |
Application Notes | For use with RideTech 4 Link |
Universal | No |
Make | CHEVROLET |
Model | CAMARO |
Submodel | BASE |
Beginning Year | 1967 |
Ending Year | 1969 |
Engine Type | L6 |
CC | 3769 |
CID | 230 |
Liter | 3.8 |
Engine Size | 3.8L/230 |
Engine Family | GM inline 6-cylinder |
Drivetrain | RWD |
Application Notes | For use with RideTech 4 Link |
Universal | No |
Make | CHEVROLET |
Model | CAMARO |
Submodel | BASE |
Beginning Year | 1967 |
Ending Year | 1969 |
Engine Type | L6 |
CC | 4097 |
CID | 250 |
Liter | 4.1 |
Engine Size | 4.1L/250 |
Engine Family | GM inline 6-cylinder |
Drivetrain | RWD |
Application Notes | For use with RideTech 4 Link |
