Rear HQ CO 70-81 F-

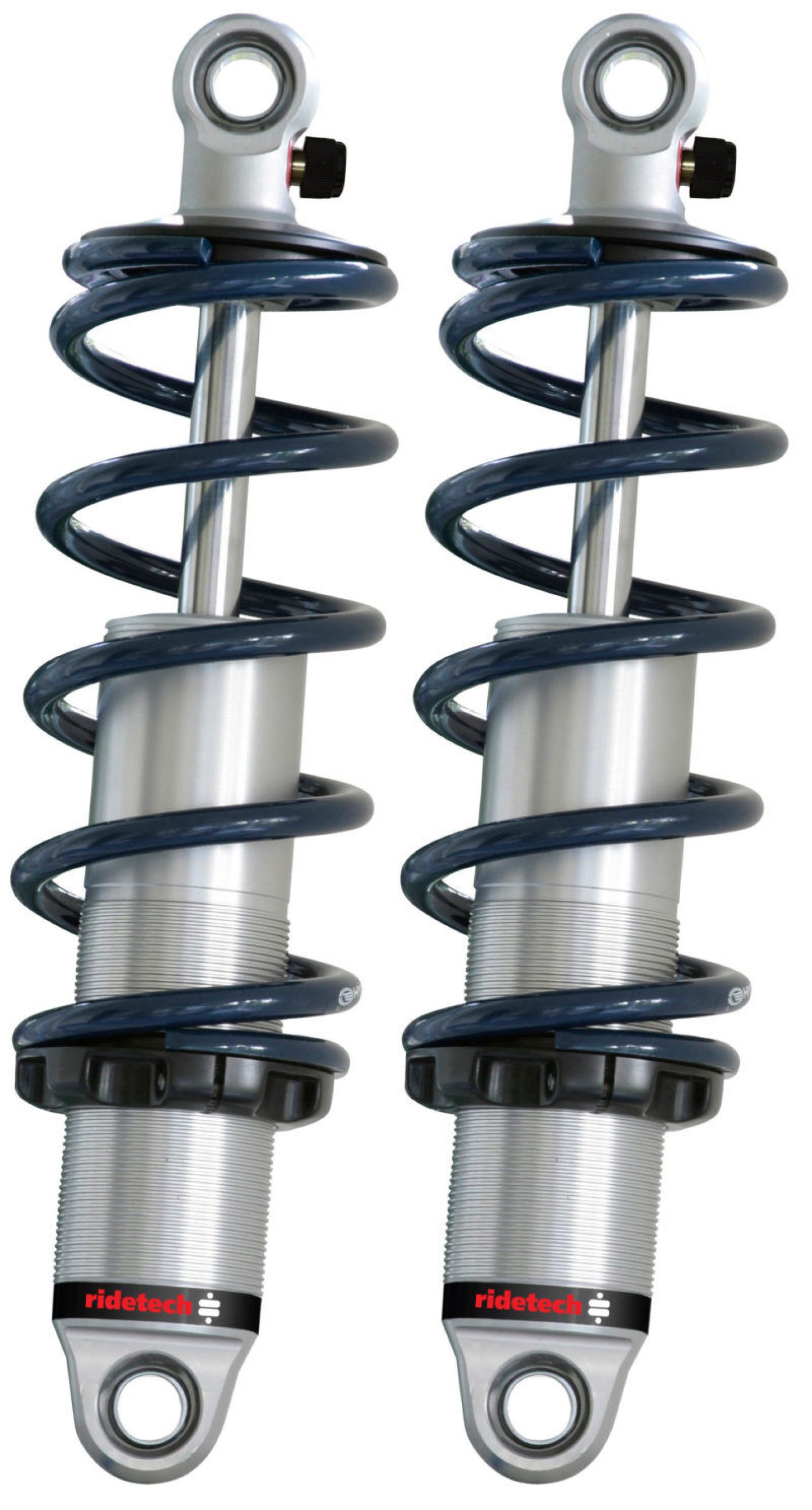

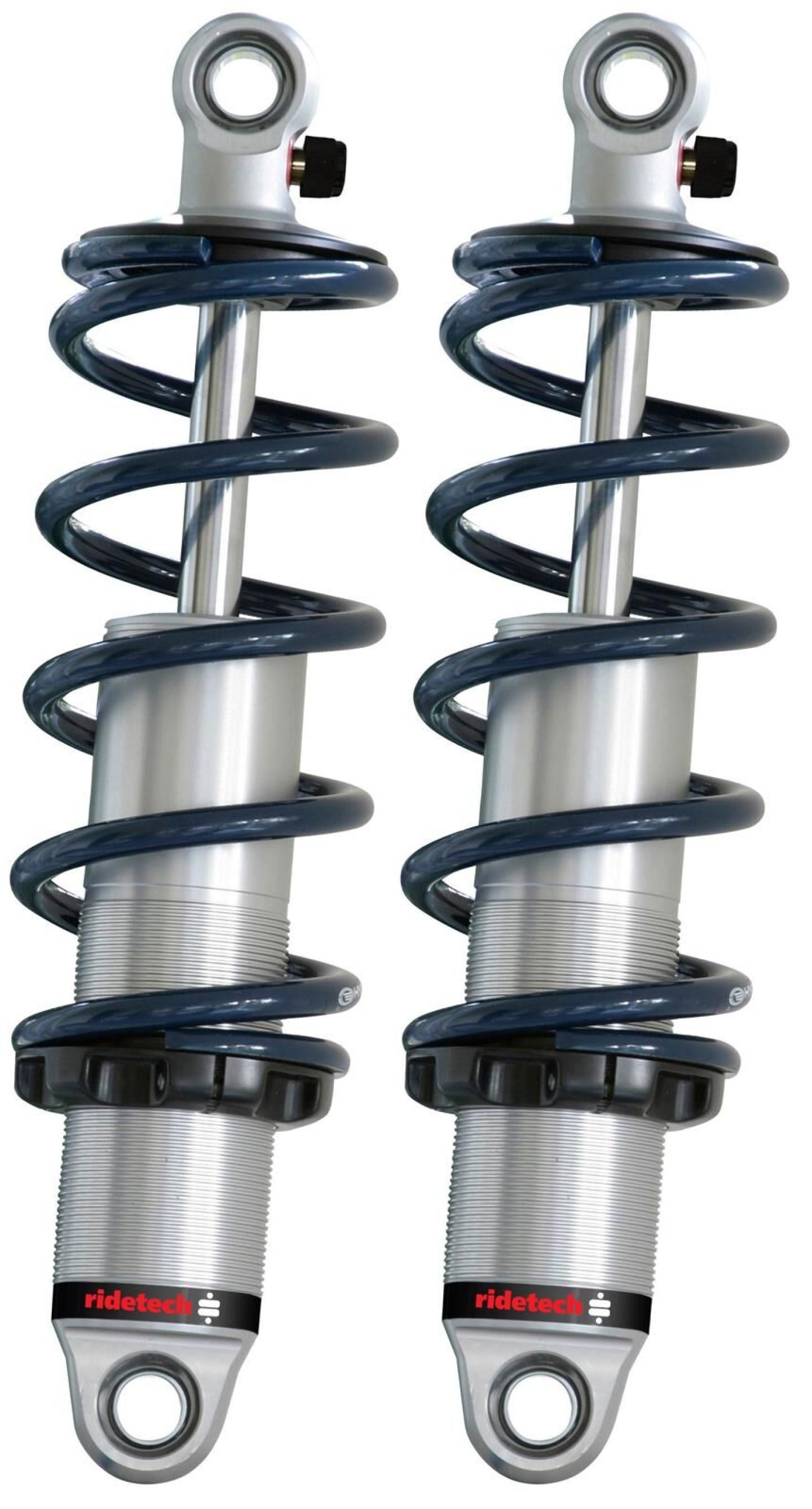

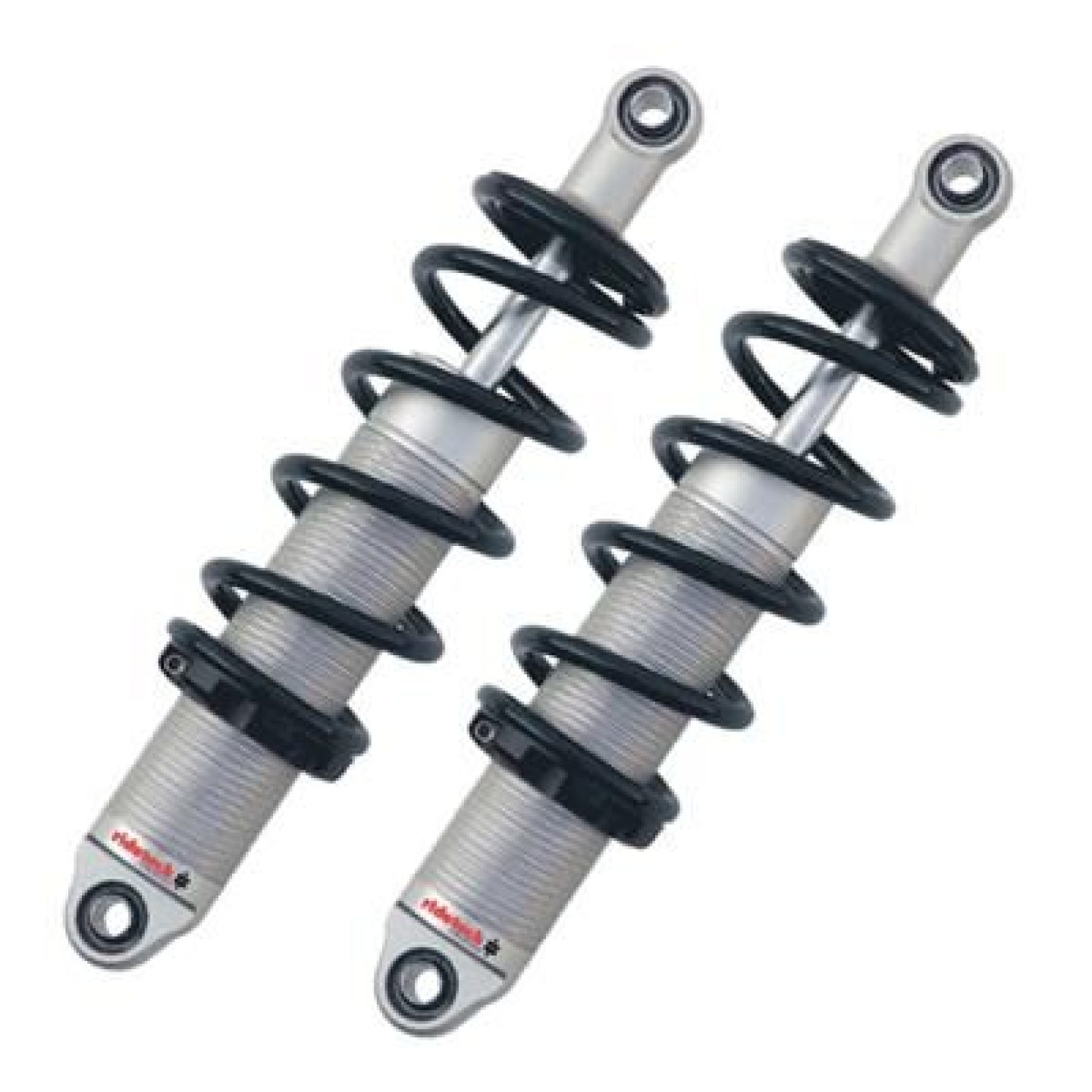

Rear HQ Coil-Overs for 1970-1981 GM F-Body. For use with Ridetech 4-Link. Includes a pair of rebound adjustable shocks, springs, spring mounts and delrin spring washers.
1970-1981 Camaro & Firebird
Coilover Spring and Shock Assembly
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Coilover Kit, Monotube, Rear Position, Aluminum, Kit

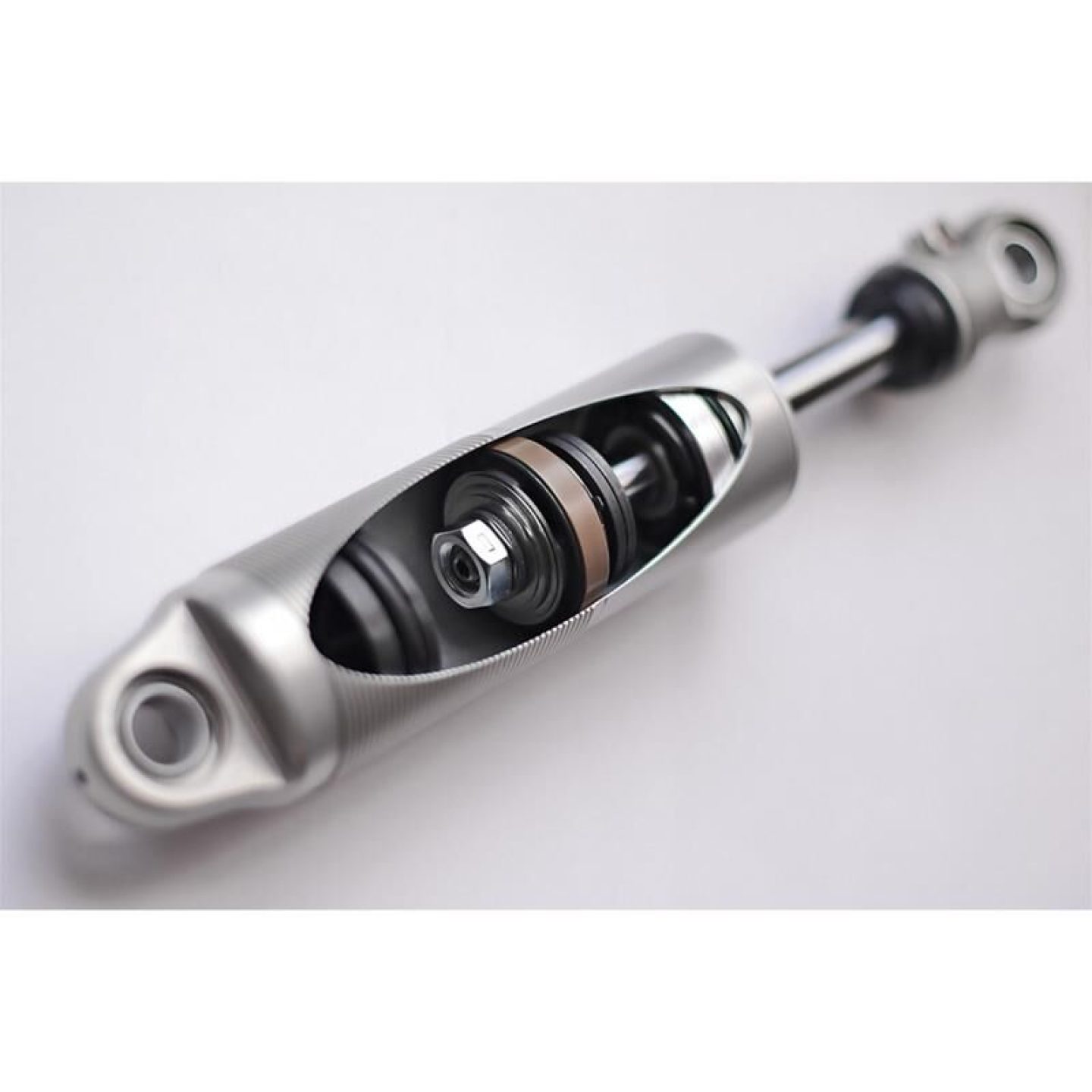

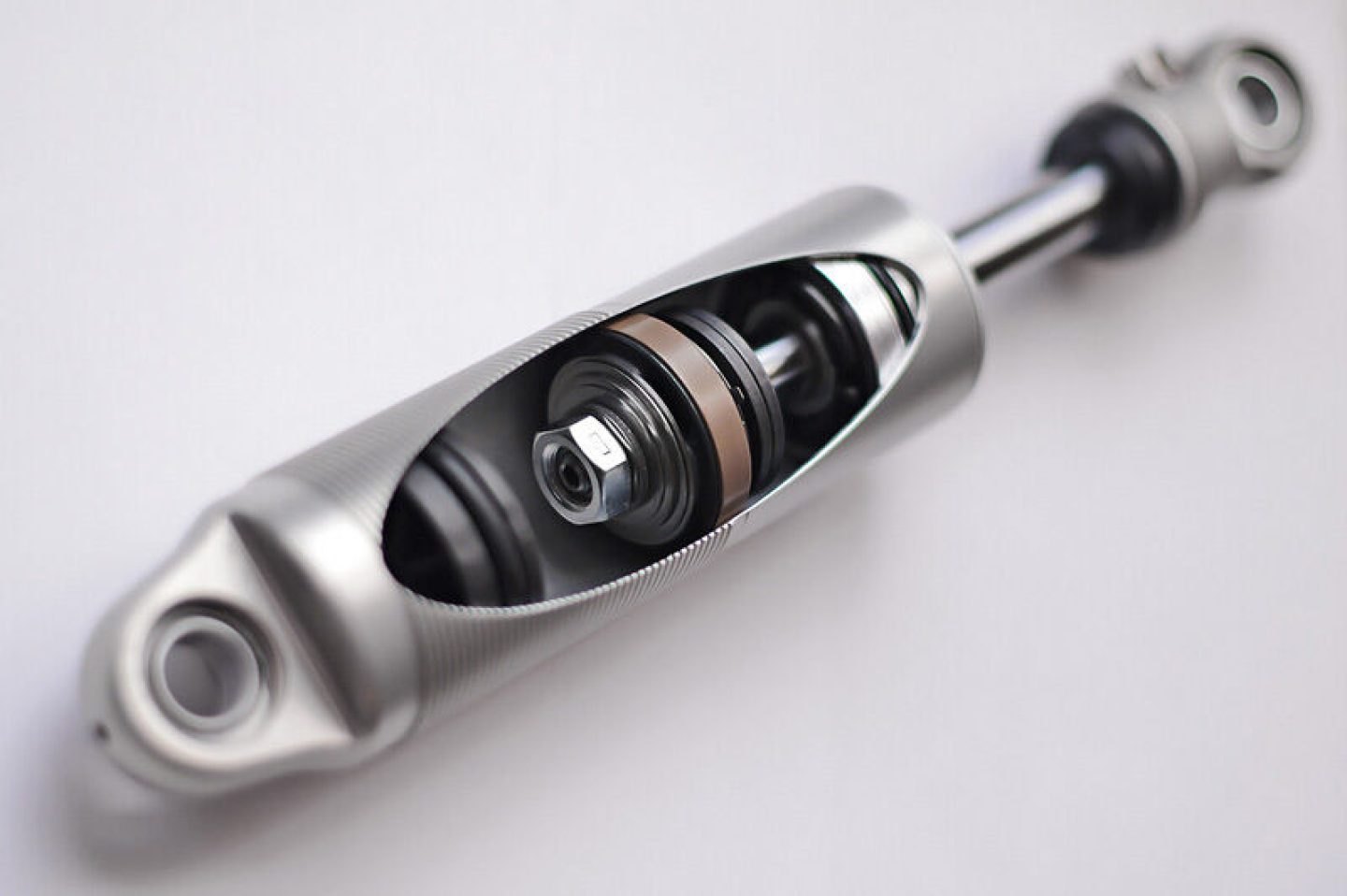

RideTech continues to offer today's hot rodders the ultimate in ride quality and handling performance with these RideTech coilovers. Order shocks recommended for your vehicle. Features include: * Easy-access adjuster knob allows for a wide range of 26 clicks of rebound adjustment * Large rubber external bump stop to prevent harsh bottoming out * 5/8 in. hardened shaft, precision-ground and straightened to a tolerance of .001 in. for increased durability and performance * Billet end cap with integrated debris wiper to prevent seal damage * Oversized rod guide improves piston rod stability * Integral internal bump stop eliminates extension crashing * Monotube design allows large piston for superior oil control, ride quality, and handling * Hard coat external anodizing ensures years of lasting beauty and performance * PTFE piston wiper and progressive valving allow for consistent piston/bore contact and repeatable performance * Monotube bore is cathode-anodized for years of wear resistance * Specially contoured composite gas separator cup optimizes dead length and ensures proper nitrogen/oil separation * One-piece, impact-forged body allows for reliable, leak-free operation * Long-lasting, KEVLAR®-lined bearings allow for side articulation and low noise * 2 1/2 in. coilover springs are made from high-tensile premium steel that's CNC cold-wound; and then a durable blue powdercoat finish is applied
Brand | RideTech |
Manufacturer's Part Number | 11176510 |
Part Type | Coilover Kits |
Product Line | RideTech Coilovers |
Coilover Kit Position | Rear |
Adjustable Valving | Yes |
Number of Valving Selections | 24 |
Shocks Included | Yes |
Internal Design | Monotube |
Coilover Springs Included | Yes |
Spring Rate (lbs/in.) | 200 lbs./in. |
Gas Charged | Yes |
Extended Length (in.) | 16.50 |
Collapsed Length (in.) | 11.61 |
Upper Mount | Eyelet |
Lower Mount | Eyelet |
Body Diameter (in.) | 2.000 |
Shock Body Material | Aluminum |
Shock Body Finish | Clear anodized |
Bushing Material | Thermoplastic |
Bushing Color | Silver |
Spring Finish | Black |
Crossmember Included | No |
Adjustable Mounting Bracket Included | No |
Hardware Included | No |
Welding Required | No |
Quantity | Sold as a kit. |
Notes | For use with Ridetech Airbar rear 4-link suspension. |
Ridetech 70-81 Camaro and Firebird Rear HQ Series CoilOvers Pair use w/ Ridetech Bolt-On 4 Link | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
1970-1981 | Chevrolet | Camaro | Base, RS, SS, Z28, LT, Rally Sport, LT Rally Sport, Berlinetta, Sport | US |
1970-1981 | Pontiac | Firebird | Base, Esprit, Formula, Trans Am | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
