SuspLinkArmJt

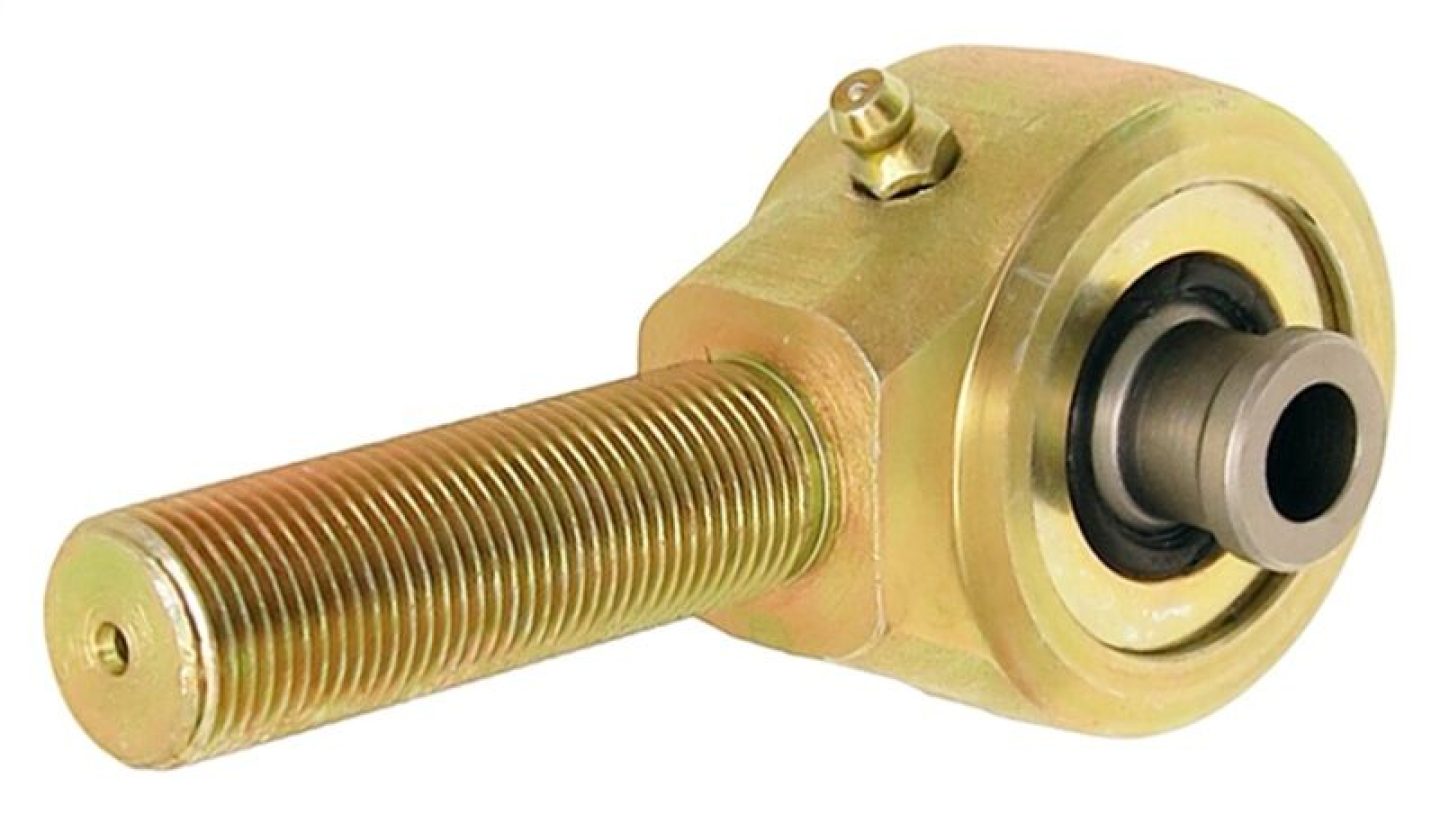

RockJocks narrow forged Johnny Joints(R) for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint(R) rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 3/4 in.-16 right hand threads on the shank, and a 1.600 in. mounting width ball with a .562 in. thru bolt hole. Finished in gold zinc plating.
Narrow Forged Johnny Joint®; 2 in.; w/3/4 in. RH Thread/.562 in. X 1.600 in. Ball;
This product is designed and tested for the US Domestic Market to comply with relevant US standards. Consequently, it may have features that are not compatible or compliant with regulations outside the US. As such, this item is offered for off-road use. If this item includes a tow-ball, it is important that you ensure compatibility with your trailer. Please contact a support agent for more information if required.
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Rod End, Johnny Joint, 3/4 in.-16, Male Threads, 1-piece, Forged Steel, 0.563 in. Bore, Each
Rock Jock Johnny Joint rod ends offer 30 degrees (up to 40 degrees on some units) of unrestricted movement in any direction, as compared to 22 degrees on common Heim joints. They come with high-density "tough 88" urethane bushings that are very durable and impervious to weather. Higher density, one-piece bushings are used in narrow-bodied joints to handle heavy load applications, such as traction bars. All Johnny Joints are greasable for long-lasting durability and quiet operation—and are fully rebuildable. Johnny Joints are available in a variety of sizes with a nearly infinite range of narrow and wide-style configurations, including: * Forged steel * Billet steel * Specialty joints * Right hand and left hand threads * Male and female threaded * Weld-on joints—internally or externally greasable * 4130 chromoly outer shells with heat-treated steel balls and 4340 chromoly side-retaining washers * Housing kits for Jeep upper control arms
Brand | Rock Jock |
Manufacturer's Part Number | CE-9112N75-13 |
Part Type | Rod Ends |
Product Line | Rock Jock Johnny Joint Rod Ends |
UPC | 810038151083 |
Rod End Thread Size | 3/4 in.-16 |
Rod End Attachment | Male threads |
Rod End Head Bore Size | 0.563 in. |
Rod End Construction | 1-piece |
Jam Nut Included | No |
Rod End Style | Solid |
Thread Length | 2.250 in. |
Rod End Head Diameter | 2.000 in. |
Rod End Head Width | 1.200 in. |
Grease Fitting | Yes |
Heat-Treated | Yes |
Rod End Ball Width | 1.600 in. |
Rod End Misalign Angle | 28 degrees |
Rod End Material | Forged steel |
Rod End Finish | Zinc plated |
Quantity | Sold individually. |
No specific fitment data available for this part. For clarification, please contact us.
