Skunk2 is proud to introduce its all-new FA20 BRZ/FRS Oil Cooler Kit. The kit includes a sandwich adapter which is made from 6061 Aluminum, CNC machined and then hard-anodized. Skunk2s Oil Filter Sandwich Adapter features a 1/8 pipe port to feed a turbo or the addition of a pressure gauge. The Skunk2 FA20 BRZ/FRS Oil Cooler Kit fits the Kraftwerks supercharger kit and has been ran and tested on Kraftwerks very own FA20. The Oil Cooler features 19 rows of fins and sits towards the front of the bay where most cooler and filtered air is located. The positioning of the Cooler allows for cooler air which then results in cooler temperatures. The cooler it self measures at 11.25"x5.5" with -10 outlets and is 2" thick. With all these features combined the Skunk2 Oil Cooler Kit stands apart in performance and quality as well sleek appearance in comparison to any other cooler out in the market. This Bolt-On Solution is compatible with the Kraftwerks Supercharger Kit for the FRS/BRZ and includes everything you need to install. No Cutting, Welding or Drilling Required.
Oil Cooler Kit; Intercooler Kit; L15B; Aluminum; Silver;

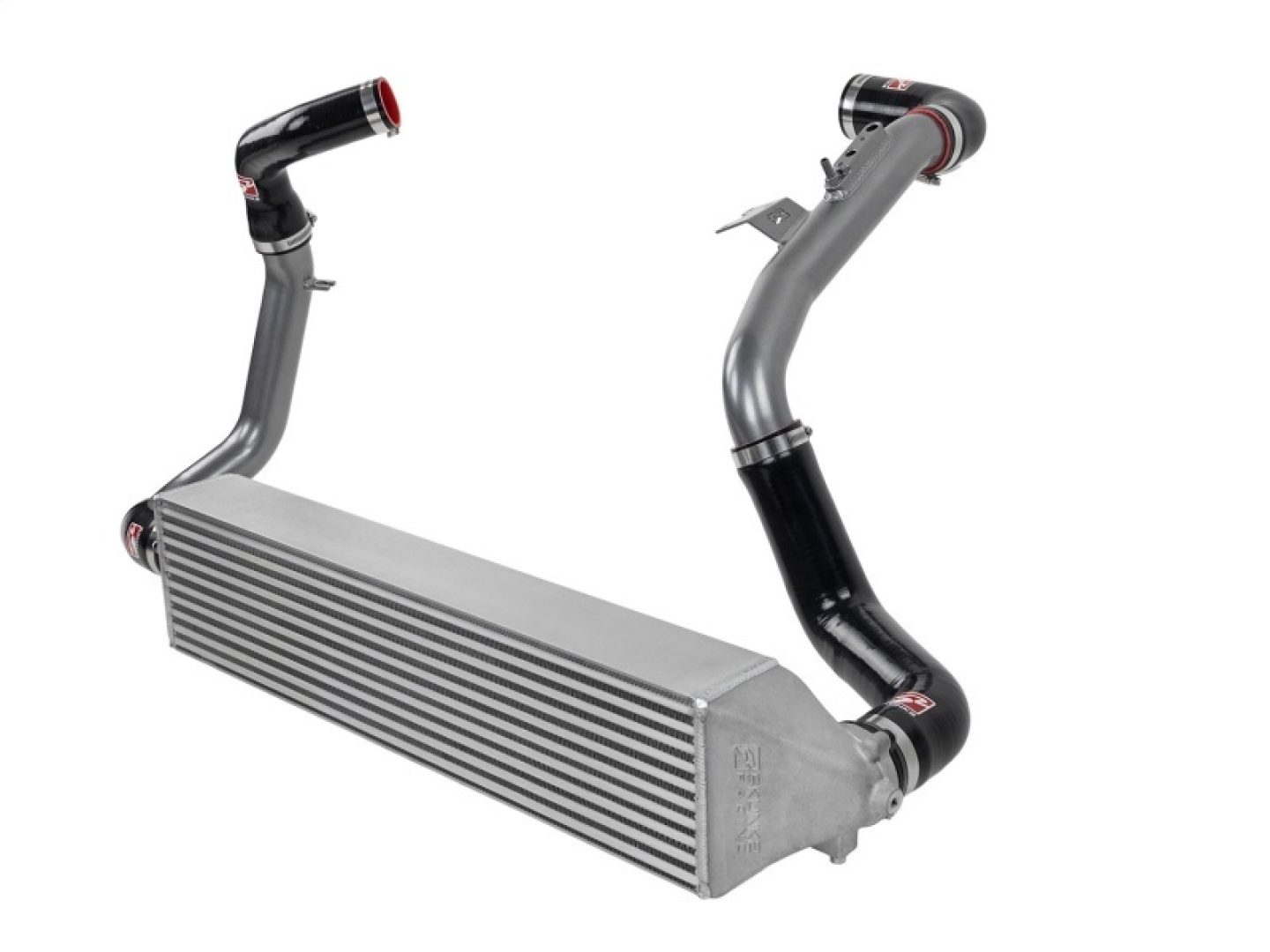

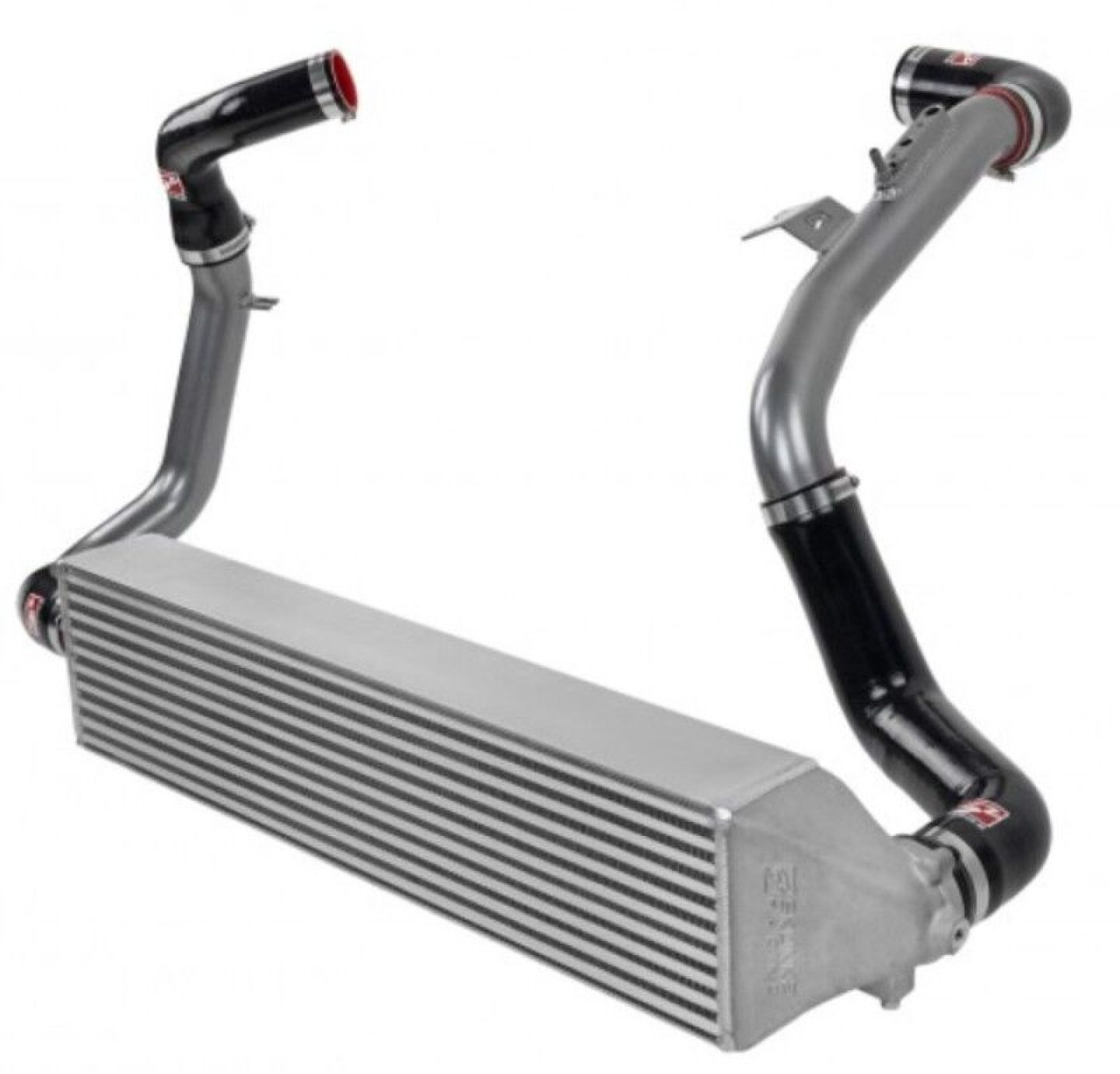

Optimal cooling is imperative for performance and reliability, especially for turbocharged applications. Skunk2 Racing intercooler kits deliver a bolt-on solution that reduces intake air temperatures to maximize your engines performance.

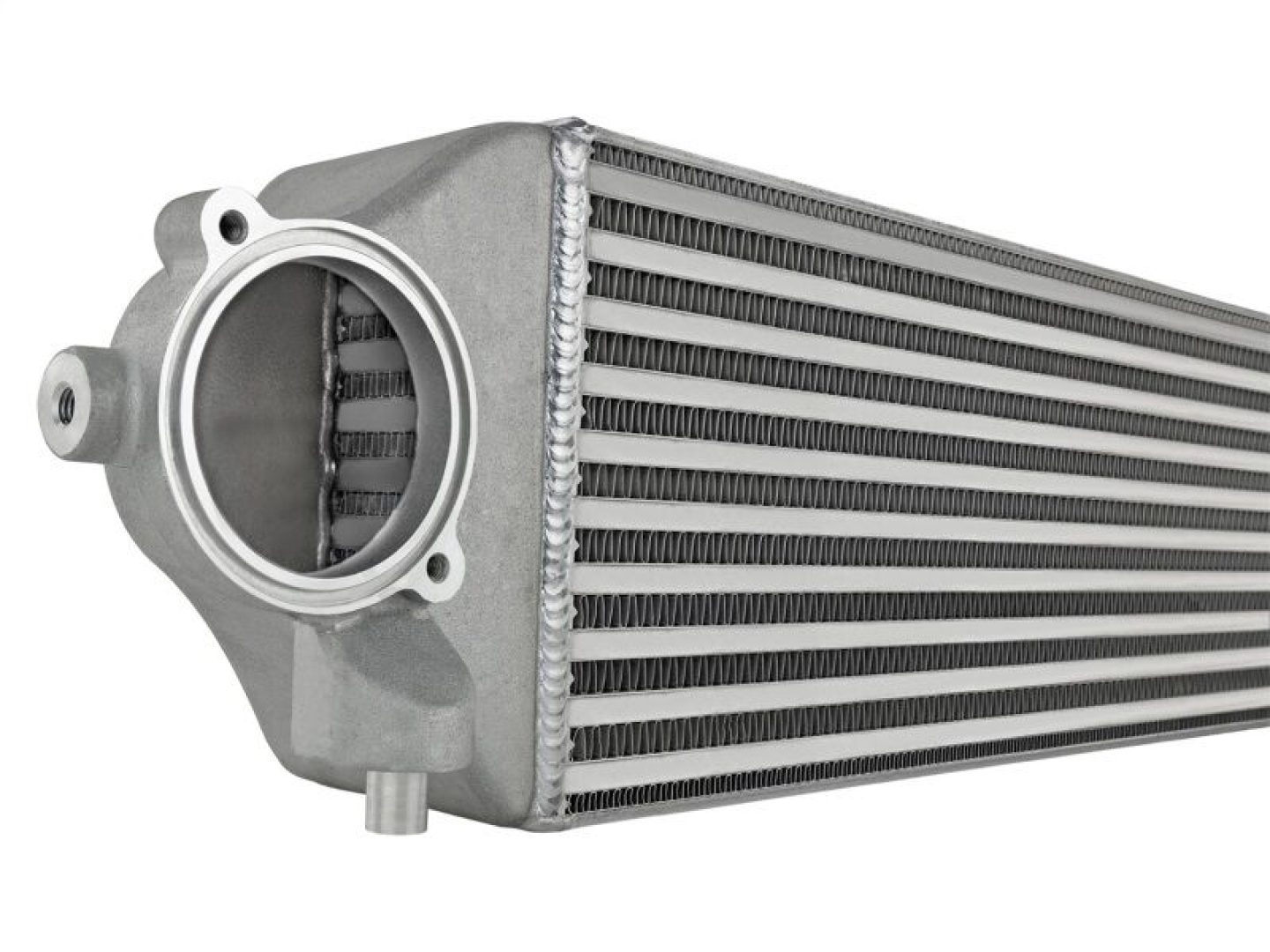

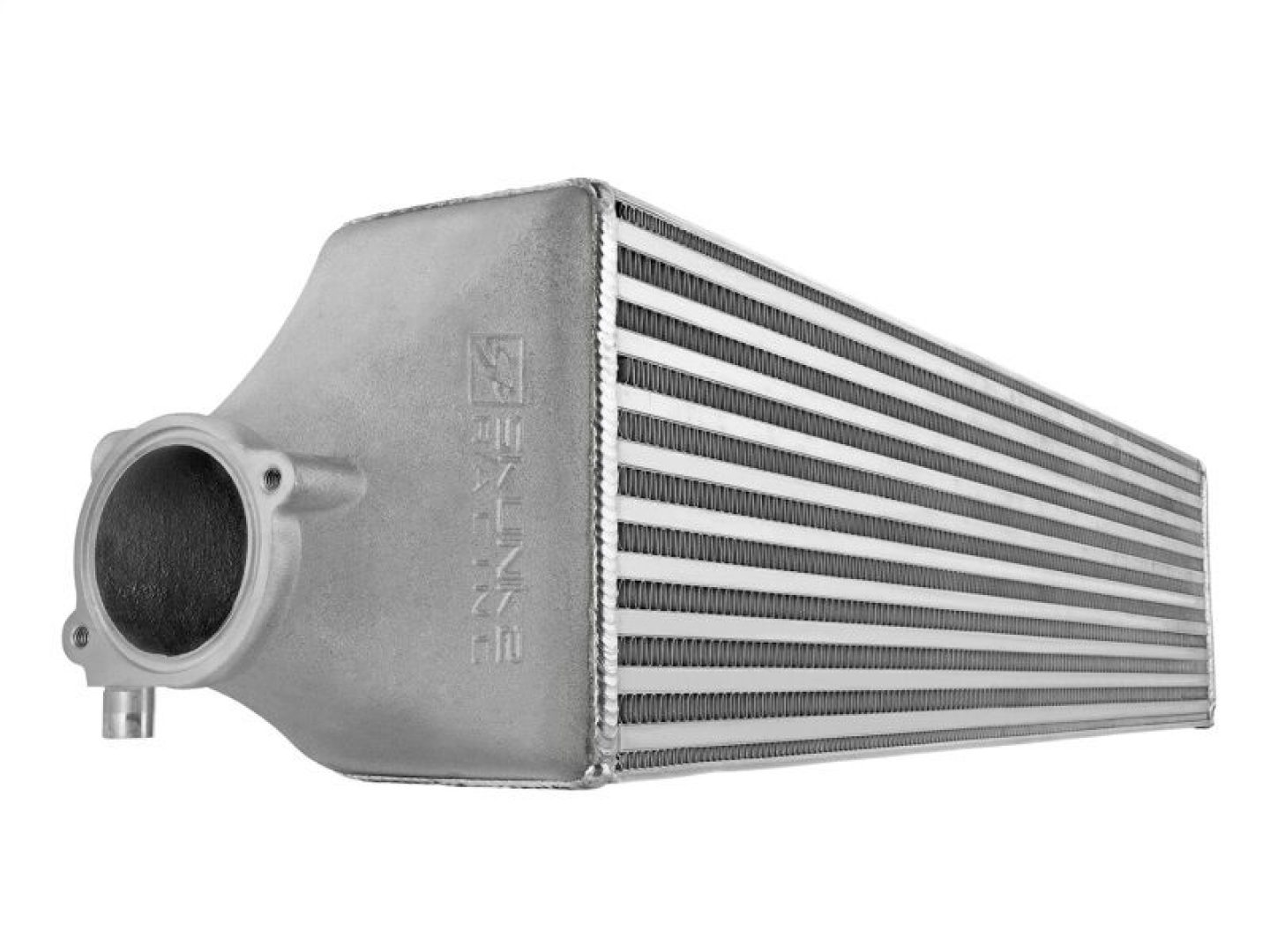

Factory systems with plastic end caps and smaller plastic tubing with rubber couplings quickly get drenched in heat and can result in huge power drops and poor performance. Skunk2 kits provide a 3.5 in. 100 percent aluminum intercooler that is 30 percent larger than stock, flows a higher volume of air, and acts better as a heat sink to reduce intake air temperatures. The kits also included 2.25 in. aluminum tubing to further increase airflow and aid in temperature reduction due to better heat dissipation than the stock plastic.
Additional features and specs:
UPC | 841150913105 |
Brand | Skunk 2 |

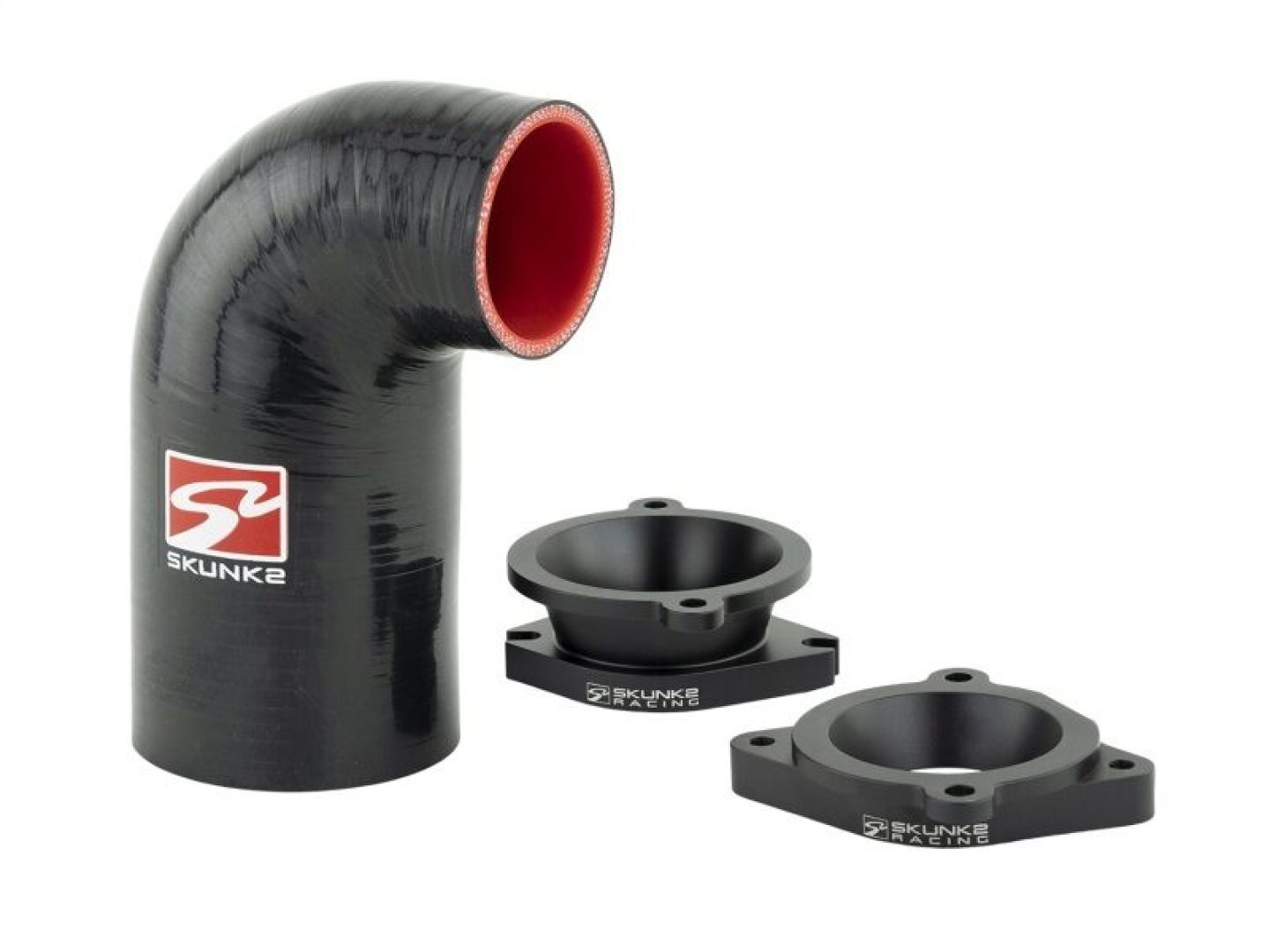

Notes | Includes flanges to fit stock intercooler piping, or slip-fit tubing couplers included in the kit. |

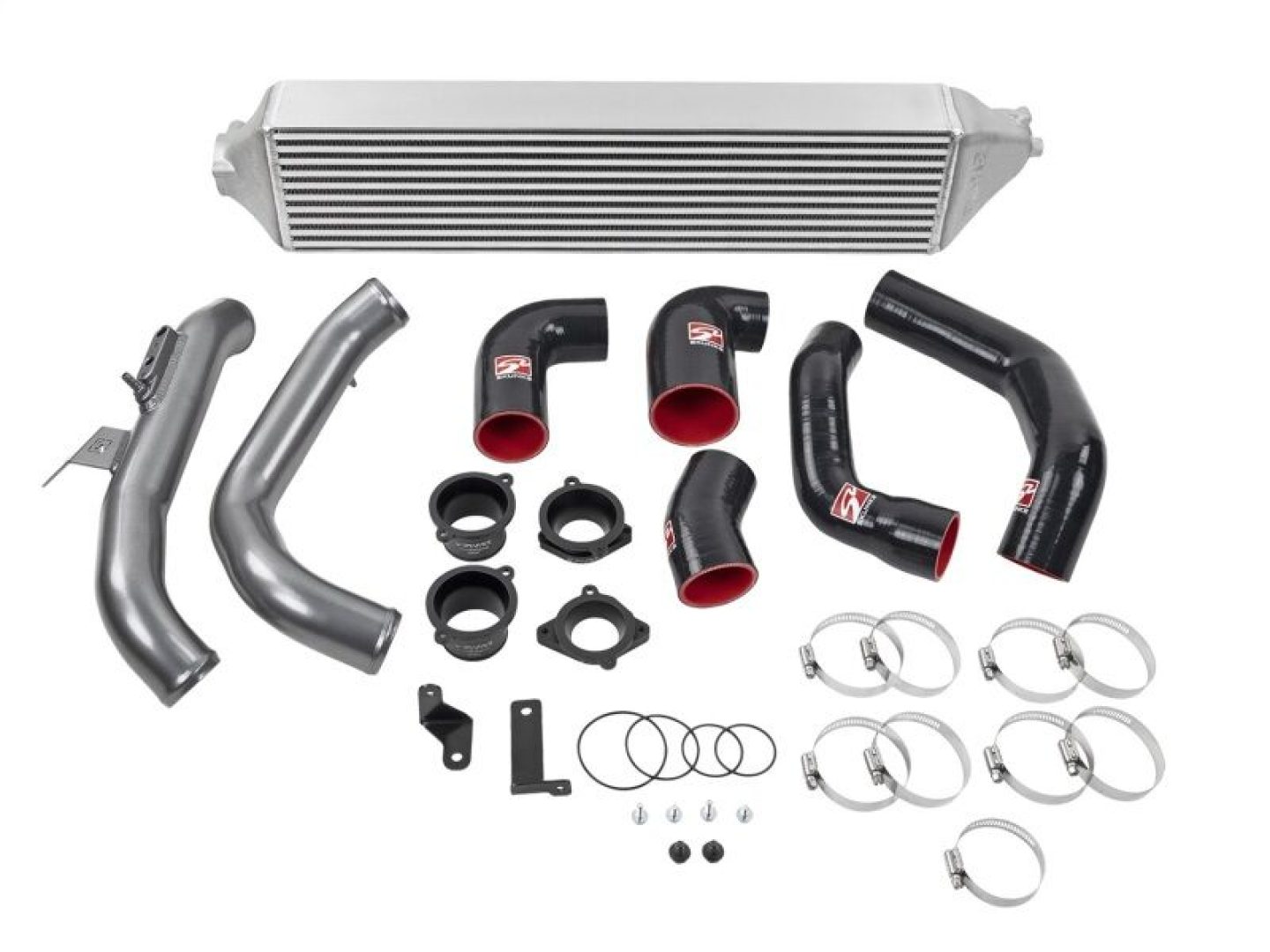

Quantity | Sold as a kit. |
Part Type | Intercoolers |
Product Line | Skunk2 Racing Intercooler Kits |
Intercooler Color | Natural |
Aftercooler Included | No |
Intercooler Material | Aluminum |
Intercooler Core Type | Air-to-air |
Intercooler Inlet Size | 2.250 in. |
Intercooler Pipe Color | Gray/Silver |
Intercooler Depth (in.) | 3.50 in. |
Intercooler Outlet Size | 2.250 in. |
Intercooler Width (in.) | 28.00 in. |
Intercooler Height (in.) | 6.41 in. |
Intercooler Pipe Included | Yes |
Intercooler Pipe Material | Aluminum |
Summit Racing Part Number | SK2-345-05-0100 |
Manufacturer's Part Number | 345-05-0100 |
Intercooler Width Range (in.) | 28.00-28.99 in. |
Intercooler Height Range (in.) | 6.00-6.99 in. |
Intercooler Mounting Brackets Included | Yes |
Remote Mount Electric Water Pump Included | No |
Aftercooler Remote Water Reservoir Included | No |
Compatibility & Application Information | |
---|---|
Universal | No |
Make | HONDA |
Model | CIVIC |
Submodel | EX-L |
Beginning Year | 2016 |
Ending Year | 2021 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 1.5L/1497cc |
Application Notes | Includes flanges to fit stock intercooler piping, or slip fit tubing couplers included in the kit. |
Universal | No |
Make | HONDA |
Model | CIVIC |
Submodel | EX-T |
Beginning Year | 2016 |
Ending Year | 2018 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 1.5L/1497cc |
Application Notes | Includes flanges to fit stock intercooler piping, or slip fit tubing couplers included in the kit. |
Universal | No |
Make | HONDA |
Model | CIVIC |
Submodel | EX |
Beginning Year | 2017 |
Ending Year | 2021 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 1.5L/1497cc |
Application Notes | Includes flanges to fit stock intercooler piping, or slip fit tubing couplers included in the kit. |
Universal | No |
Make | HONDA |
Model | CIVIC |
Submodel | LX |
Beginning Year | 2017 |
Ending Year | 2021 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 1.5L/1497cc |
Application Notes | Includes flanges to fit stock intercooler piping, or slip fit tubing couplers included in the kit. |
Universal | No |
Make | HONDA |
Model | CIVIC |
Submodel | SI |
Beginning Year | 2017 |
Ending Year | 2020 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 1.5L/1497cc |
Application Notes | Includes flanges to fit stock intercooler piping, or slip fit tubing couplers included in the kit. |
Skunk2 16-21 Honda Civic 1.5T Intercooler Kit | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2016 | Honda | Civic | EX-L | US |
2016 | Honda | Civic | EX-T | US |
2016 | Honda | Civic | Touring | US |
2017 | Honda | Civic | Sport | US |
2017 | Honda | Civic | EX-L | US |
2017 | Honda | Civic | LX | US |
2017 | Honda | Civic | Touring | US |
2017 | Honda | Civic | Si | US |
2017 | Honda | Civic | EX | US |
2017 | Honda | Civic | EX-T | US |
2017 | Honda | Civic | Sport Touring | US |
2018 | Honda | Civic | EX | US |
2018 | Honda | Civic | EX-T | US |
2018 | Honda | Civic | Sport Touring | US |
2018 | Honda | Civic | Si | US |
2018 | Honda | Civic | LX | US |
2018 | Honda | Civic | Touring | US |
2018 | Honda | Civic | EX-L | US |
2018 | Honda | Civic | Sport | US |
2019 | Honda | Civic | Sport | US |
2019 | Honda | Civic | Sport Touring | US |
2019 | Honda | Civic | EX | US |
2019 | Honda | Civic | Touring | US |
2019 | Honda | Civic | LX | US |
2019 | Honda | Civic | Si | US |
2019 | Honda | Civic | EX-L | US |
2020 | Honda | Civic | Si | US |
2020 | Honda | Civic | Sport Touring | US |
2020 | Honda | Civic | Sport | US |
2020 | Honda | Civic | EX-L | US |
2020 | Honda | Civic | EX | US |
2020 | Honda | Civic | Touring | US |
2020 | Honda | Civic | LX | US |
2021 | Honda | Civic | EX | US |
2021 | Honda | Civic | Sport Touring | US |
2021 | Honda | Civic | LX | US |
2021 | Honda | Civic | EX-L | US |
2021 | Honda | Civic | Sport | US |
2021 | Honda | Civic | Touring | US |
