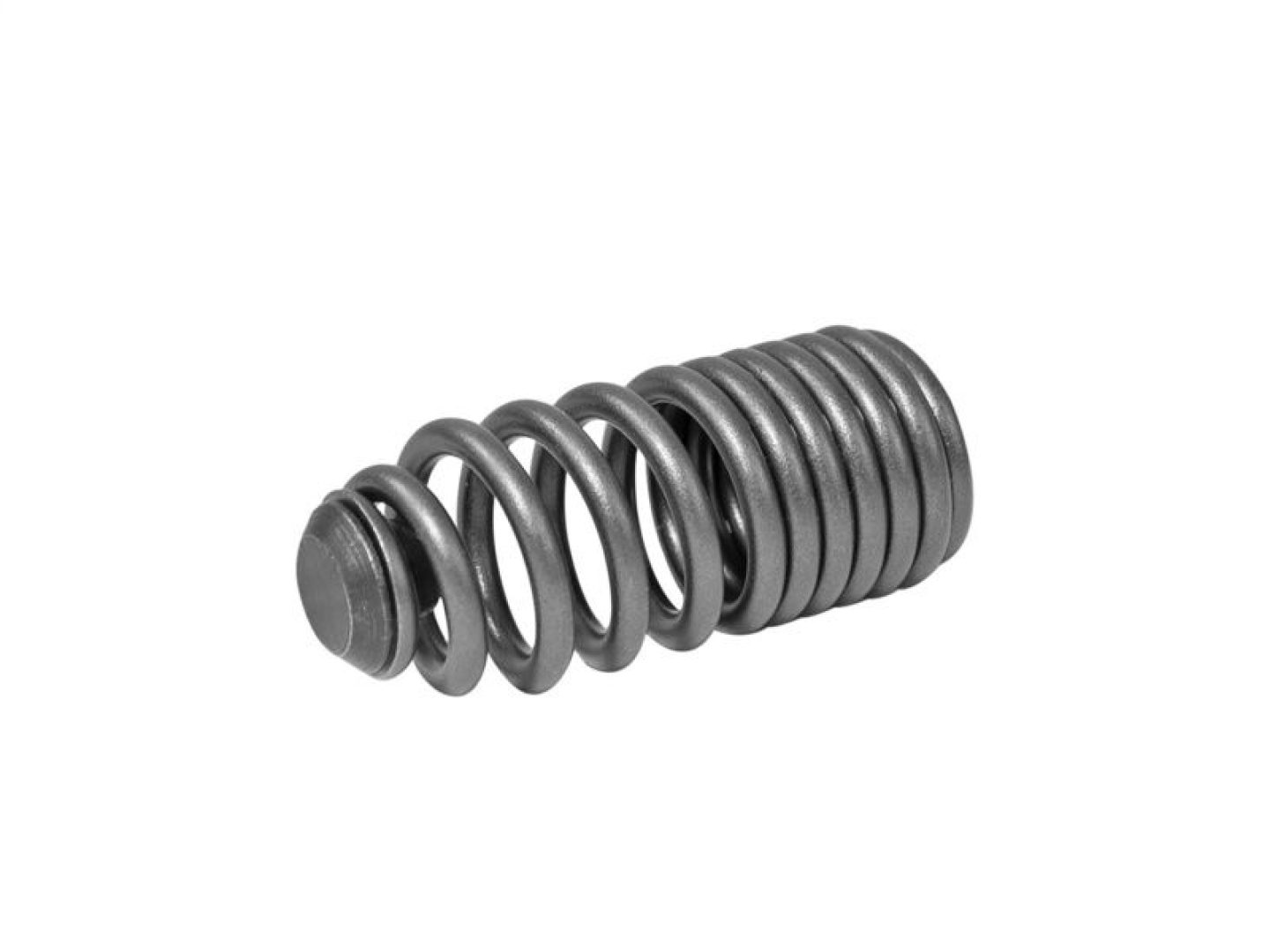

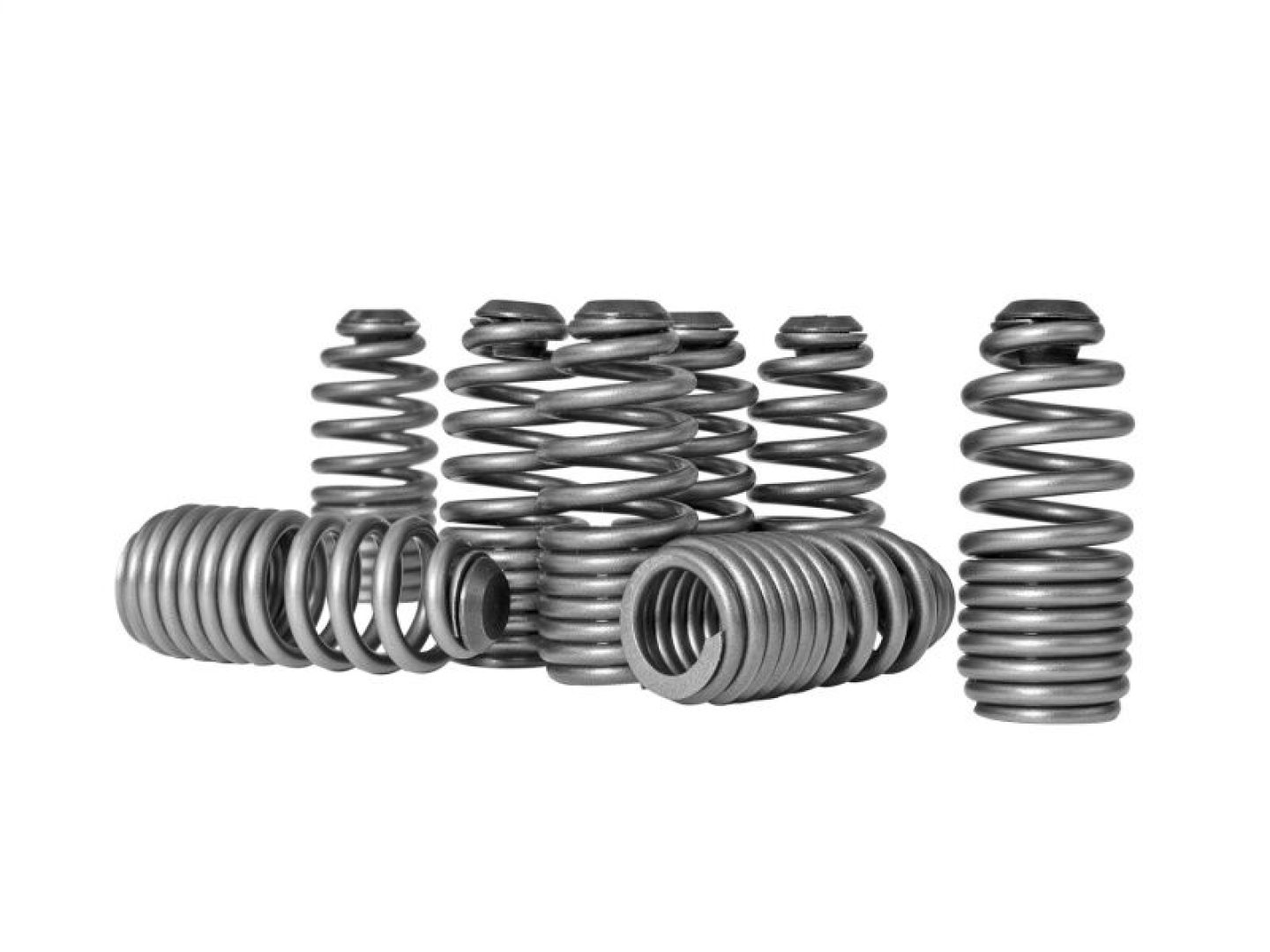

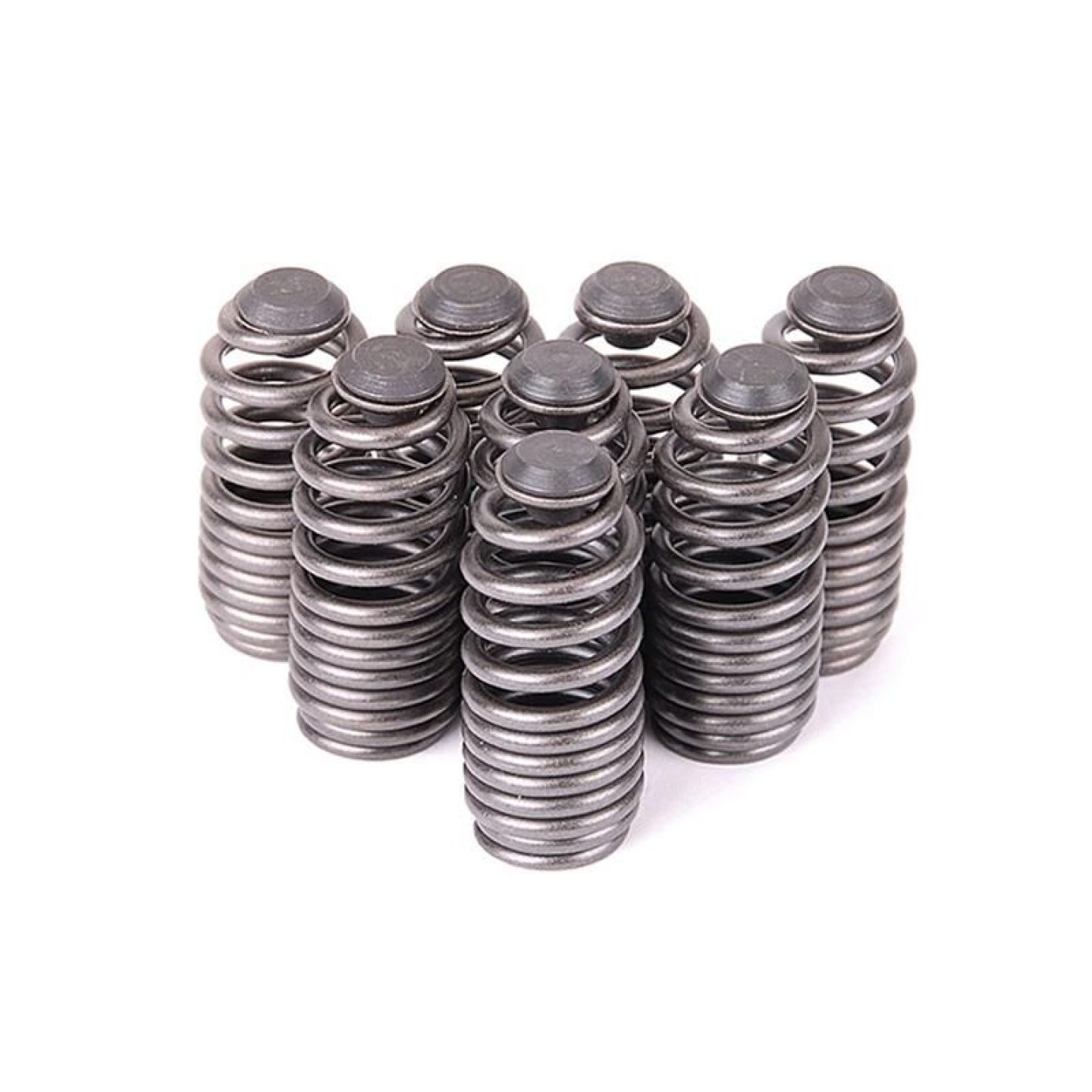

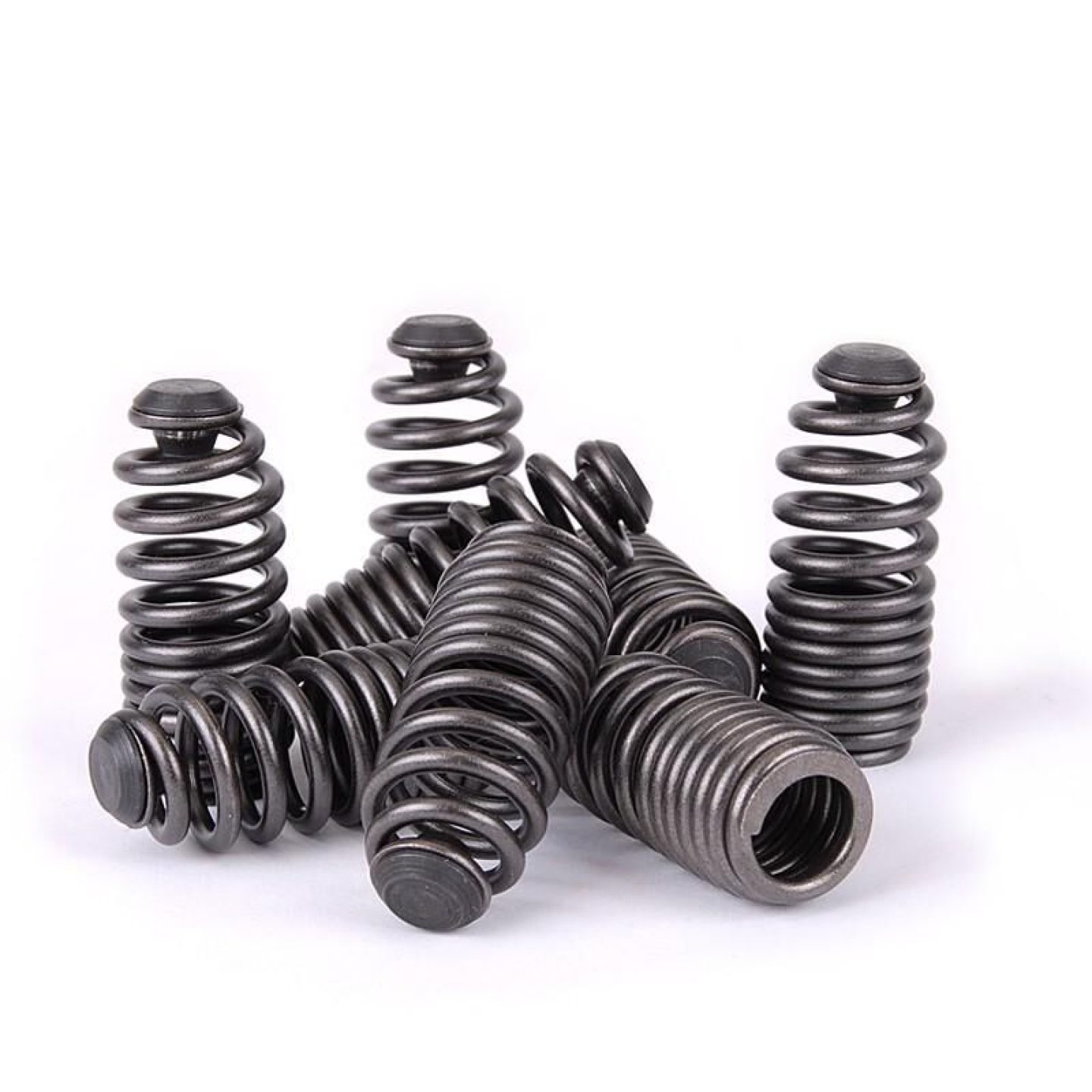

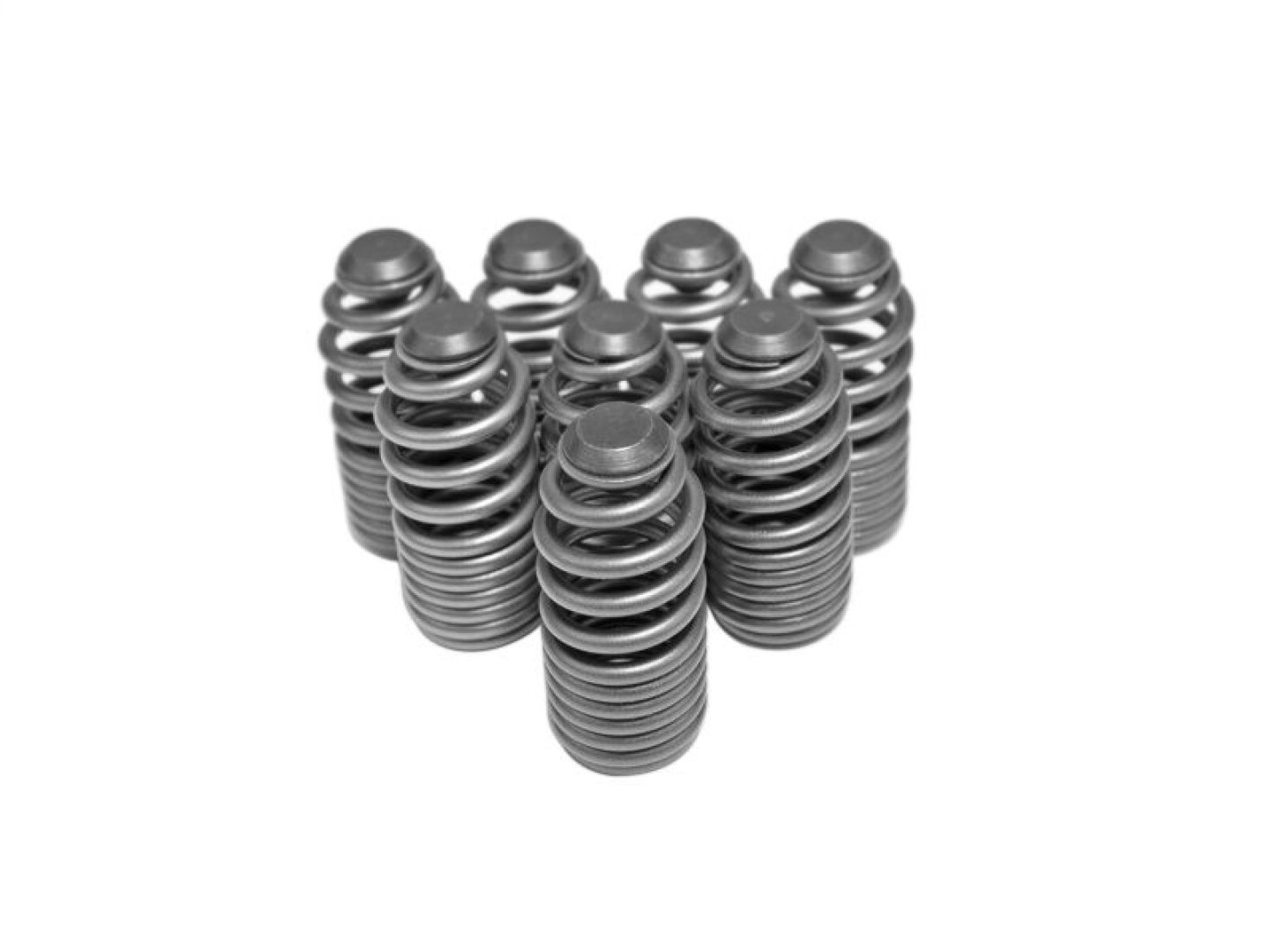

Valve Spring Kit
Skunk2 is proud to introduce its Lost Motion Assembly Kits for Honda's B-series VTEC engines. Skunk2 Lost Motion Assemblies will fit any B-Series DOHC VTEC engine (Type-R/GSR B16A, B17A, B18C). The Skunk2 Lost Motion Assembly is an advance spring device that is designed to put pre-load on the center portion of the VTEC rocker when it is in the unlocked position (when VTEC mode is disabled). During extended operating conditions, the contaminants in the oil will more than likely cause the piston to seize resulting in the VTEC rocker rattling when VTEC is not engaging or when the vehicle is in idle. Each Skunk2 Lost Motion Assembly is manufactured exclusively from chrome silicone steel using the latest 3D CAD (Computer Aided Design) modeling and FEA (Finite Element Analysis) to ensure maximum optimization. Each chrome silicone steel spring features a hardened tip for added durability. Skunk2 engineers then tested and proved their design on the engine dyno as well as the race track. The Skunk2 Lost Motion Assembly Kit replaces the factory piston-style LMA design with an improved design commonly found in newer generation Honda engines. Replacing LMAs are recommended when installing aftermarket camshafts and required when installing Skunk2 Pro Series and other high-lift camshafts. Each Lost Motion Assembly Kit includes a set of 8 assemblies for an entire Honda DOHC VTEC B-Series 4-cylinder engine (Type-R/GSR, B16A, B17A, B18C) and are compatible with all camshafts. When using camshafts with +12.5mm lift, LMAs are an absolute must, and Skunk2 Lost Motion Assembly springs are 3 percent stiffer than ITR springs.
Lost Motion Assembly Spring Set; Spring Type; For Use w/Camshaft Lift Above 0.490 in.;
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Valvetrain, Lost Motion Assembly Springs 99-00 Honda Civic Si B-Series
When using high lift camshafts, factory LMAs may bind and wear down the cam lobe. Skunk2 Racing Lost Motion Assembly (LMA) spring kits are direct replacements for factory piston-style assemblies, offering an improved design with extended travel to accommodate high-lift camshafts. Each Skunk2 Lost Motion Assembly is manufactured exclusively from chrome silicone steel using the latest 3D CAD modeling and FEA (Finite Element Analysis) to ensure maximum optimization. Each spring features a hardened tip for added durability, and is tested and proven on the engine dyno as well as the racetrack.
UPC | 873265006854 |
Brand | Skunk 2 |
Notes | Direct replacement for factory Lost Motion Assemblies, recommended for all high lift VTEC camshafts. Fits all B and H series VTEC cylinder heads. |
Quantity | Sold as a set of 8. |
Part Type | Valve Springs |
Product Line | Skunk2 Racing Lost Motion Assembly Spring Kits |
Locks Included | No |
Retainers Included | No |
Valve Spring Style | Beehive |
Valve Springs Coated | No |
Damper Spring Included | No |
Valve Stem Seals Included | No |
Manufacturer's Part Number | 312-05-0200 |
Number of Springs Per Valve | Single |
Skunk2 Honda/Acura VTEC B Series Spring Type Lost Motion Assembly Kit | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
1992-2001 | Acura | Integra | GS-R, Type R | US |
1999-2000 | Honda | Civic | Si | US |
1994-1997 | Honda | Civic del Sol | VTEC | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Make | ACURA |
Model | INTEGRA |
Submodel | GS-R |
Beginning Year | 1992 |
Ending Year | 1993 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 1.7L/1678cc |
Application Notes | Direct replacement for factory Lost Motion Assemblies, recommended for all high lift VTEC camshafts. Fits all B and H series VTEC cylinder heads. |
Make | ACURA |
Model | INTEGRA |
Submodel | GS-R |
Beginning Year | 1994 |
Ending Year | 2001 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 1.8L/1797cc |
Application Notes | Direct replacement for factory Lost Motion Assemblies, recommended for all high lift VTEC camshafts. Fits all B and H series VTEC cylinder heads. |
Make | ACURA |
Model | INTEGRA |
Submodel | GS-R |
Beginning Year | 1997 |
Ending Year | 2001 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 1.8L/1797cc |
Application Notes | Direct replacement for factory Lost Motion Assemblies, recommended for all high lift VTEC camshafts. Fits all B and H series VTEC cylinder heads. |
