ALIGN BUSHNG

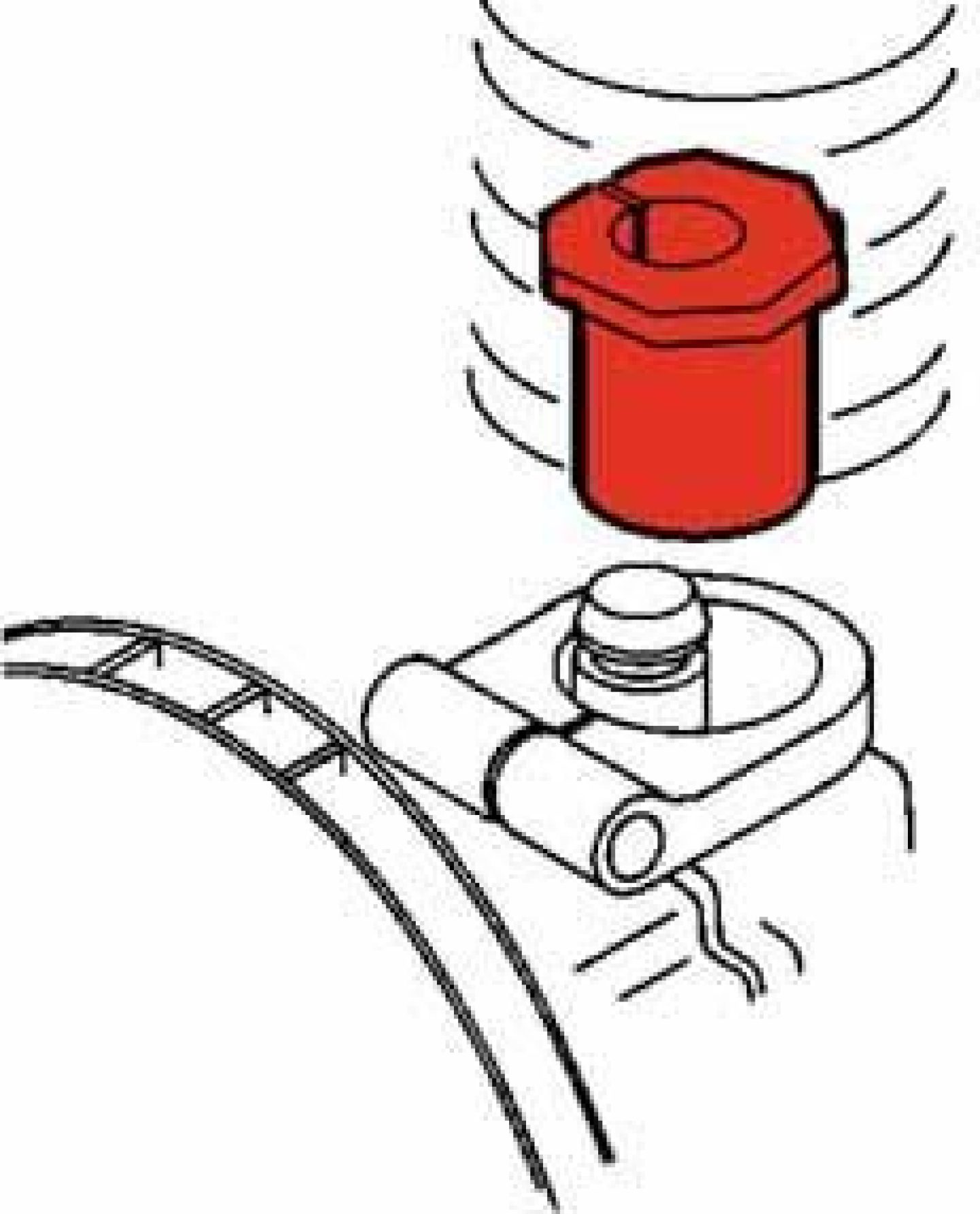

These popular sleeves are widely used to adjust caster and/ or camber on many Ford and Mazda RWD & 4WD trucks. To install, simply loosen and remove upper ball joint pinch bolt. Remove top snap ring if one is present. Use 77880 or 88830 sleeve puller to remove the existing sleeve. To split camber and caster adjustment, rotate sleeve 45°. Save time during alignment, use 23199 zero degree sleeve to determine initial readings, then install correct sleeve. Note: Sleeves adjust to a smaller degree on Ford andMazda 4WD light trucks/SUVS.
Alignment Caster / Camber Bushing
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

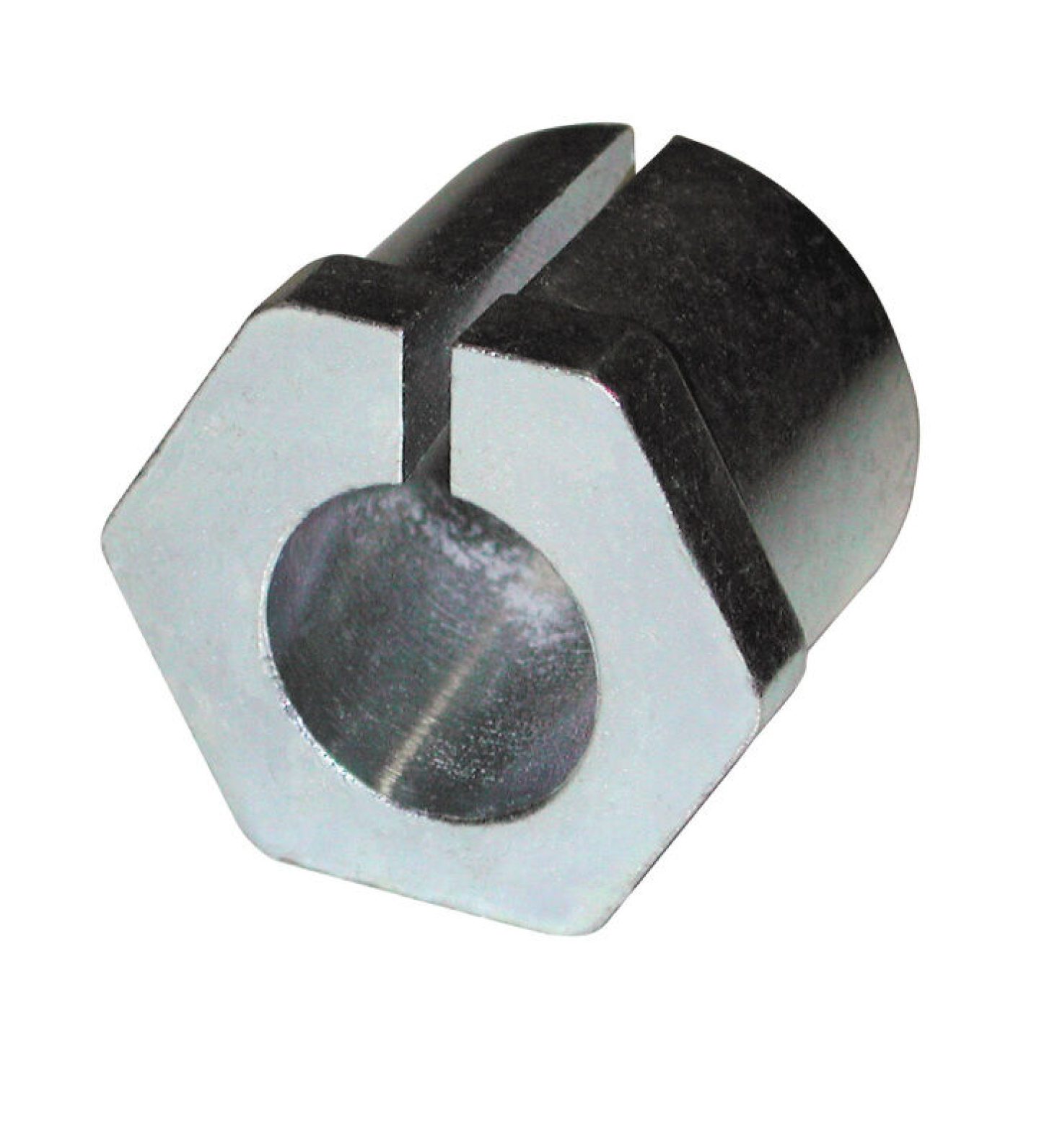

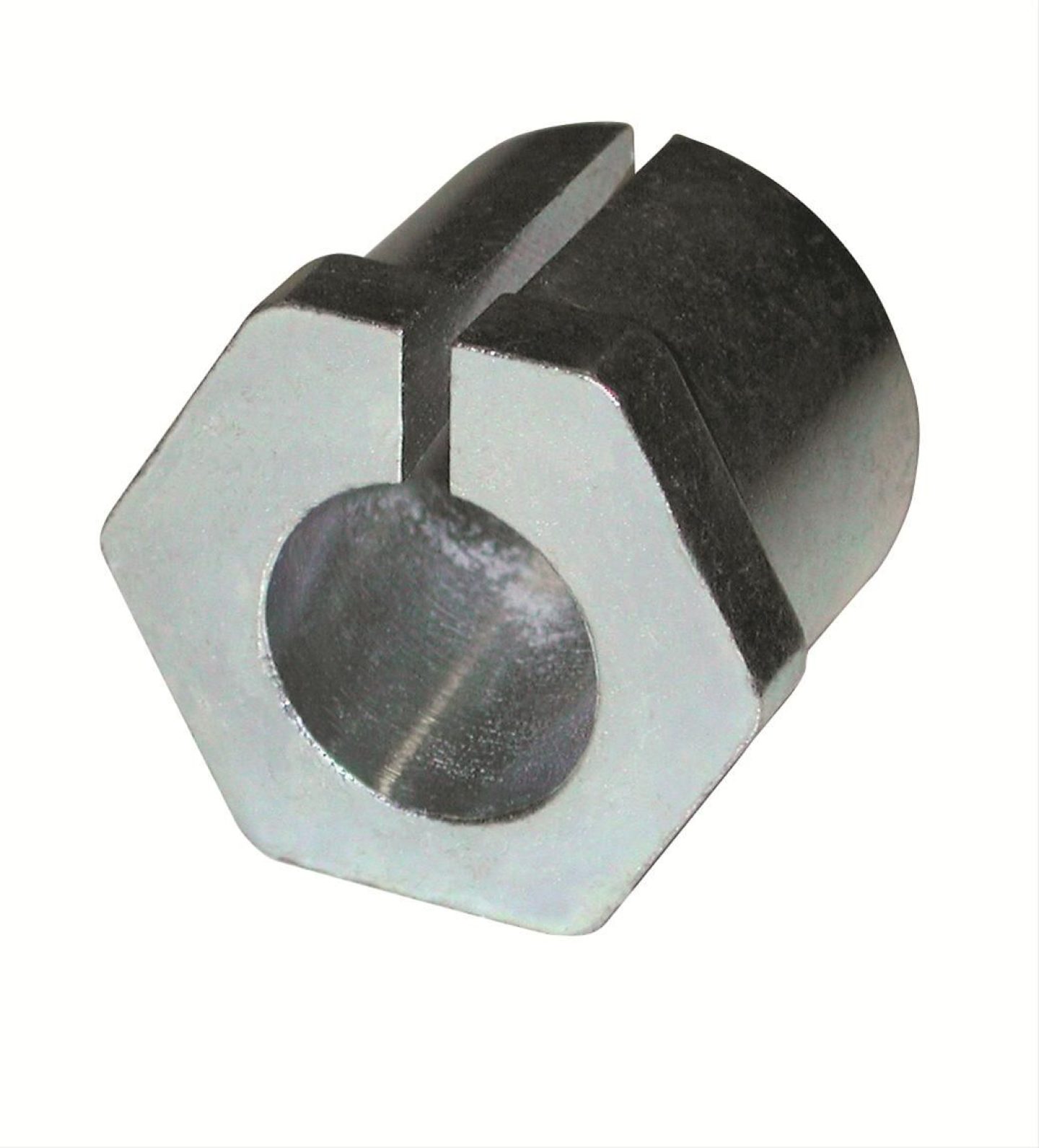

Camber/Caster Sleeve, 2.50 Degrees Negative Caster, 2.50 Degrees Positive Caster, Each
These SPC Performance camber/caster sleeves are designed to solve troublesome front-end alignment problems. They are manufactured from quality materials and are available in a variety of configurations for your specific application. SPC Performance camber/caster sleeves install easily with no modifications and adjust caster, camber, and even both in some applications. Save your tires from wearing out too quickly. Get one of these SPC Performance camber/caster sleeves and you'll be lined up in no time.
UPC | 082642231905 |
Brand | SPC Performance |
Quantity | Sold individually. |
Part Type | Wheel Alignment Parts |
Product Line | SPC Performance Camber/Caster Sleeves |
Manufacturer's Part Number | 23190 |
Wheel Alignment Component Type | Sleeve |
Includes Alignment Components For | One front wheel |
Front Camber Degree of Correction 1 | -2.50 |
Front Camber Degree of Correction 2 | +2.50 |
Front Caster Degree of Correction 1 | -2.50 |
Front Caster Degree of Correction 2 | +2.50 |
SPC Performance 2-1/2 deg. CAMBER/CASTER SLV | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
1989-1990 | Ford | Bronco II | Eddie Bauer, XL, XL Sport, XLT, XLT Plus | US |
2003-2014 | Ford | E-150 | Base, Chateau, XL, XLT | US |
2003-2005 | Ford | E-150 Club Wagon | Chateau, XL, XLT | US |
1992-2002 | Ford | E-150 Econoline | Base, XL | US |
1992-2002 | Ford | E-150 Econoline Club Wagon | Chateau, Custom, XLT, XL | US |
2003-2014 | Ford | E-250 | Base | US |
1992-2002 | Ford | E-250 Econoline | Base, XL | US |
2003-2005 | Ford | E-350 Club Wagon | Chateau, XL, XLT | US |
1992-1998 | Ford | E-350 Econoline | Base, XL | US |
1992-2002 | Ford | E-350 Econoline Club Wagon | Chateau, Custom, XLT, Chateau HD, Custom HD, XLT HD, XL HD, XL | US |
1999-2019 | Ford | E-350 Super Duty | Base, XL, XLT, Chateau | US |
2021-2023 | Ford | E-350 Super Duty | Base | US |
2015-2016 | Ford | E-450 Super Duty | Base | US |
2000-2005 | Ford | Excursion | Limited, XLT, Eddie Bauer, XLS | US |
1991-1994 | Ford | Explorer | Eddie Bauer, Sport, XL, XLT, Limited | US |
1987-1996 | Ford | F-150 | Custom, XL, XLT Lariat, XLT, Lightning, Eddie Bauer, Special | US |
1987-1999 | Ford | F-250 | Custom, XL, XLT Lariat, XLT, Eddie Bauer, Special, Base, Lariat | US |
1997 | Ford | F-250 HD | XL, XLT | US |
1999-2023 | Ford | F-250 Super Duty | Lariat, XL, XLT, King Ranch, Platinum, Limited | US |
1987-1997 | Ford | F-350 | Custom, XL, XLT Lariat, XLT, Eddie Bauer, Special, Base | US |
1999-2023 | Ford | F-350 Super Duty | Lariat, XL, XLT, King Ranch, Harley-Davidson Edition, FX4, Cabela's, Platinum | US |
1989-1997 | Ford | Ranger | Custom, GT, S, STX, XLT, S Plus, Sport, Splash, XL, XL Sport | US |
1994-1997 | Mazda | B2300 | Base, SE | US |
1994-1996 | Mazda | B3000 | Base, SE | US |
1994-1997 | Mazda | B4000 | SE, LE, Base | US |
1991-1994 | Mazda | Navajo | LX, DX | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Universal | No |
Make | FORD |
Model | BRONCO II |
Submodel | EDDIE BAUER |
Beginning Year | 1989 |
Ending Year | 1990 |
Drivetrain | RWD |
Application Notes | Thrust; 2- 1/2 degrees SLEEVE |
Universal | No |
Make | FORD |
Model | BRONCO II |
Submodel | EDDIE BAUER |
Beginning Year | 1989 |
Ending Year | 1990 |
Drivetrain | RWD |
Application Notes | Thrust; 2 1/2 degrees SLEEVE |
Universal | No |
Make | FORD |
Model | BRONCO II |
Submodel | EDDIE BAUER |
Beginning Year | 1989 |
Ending Year | 1990 |
Drivetrain | RWD |
