Winch

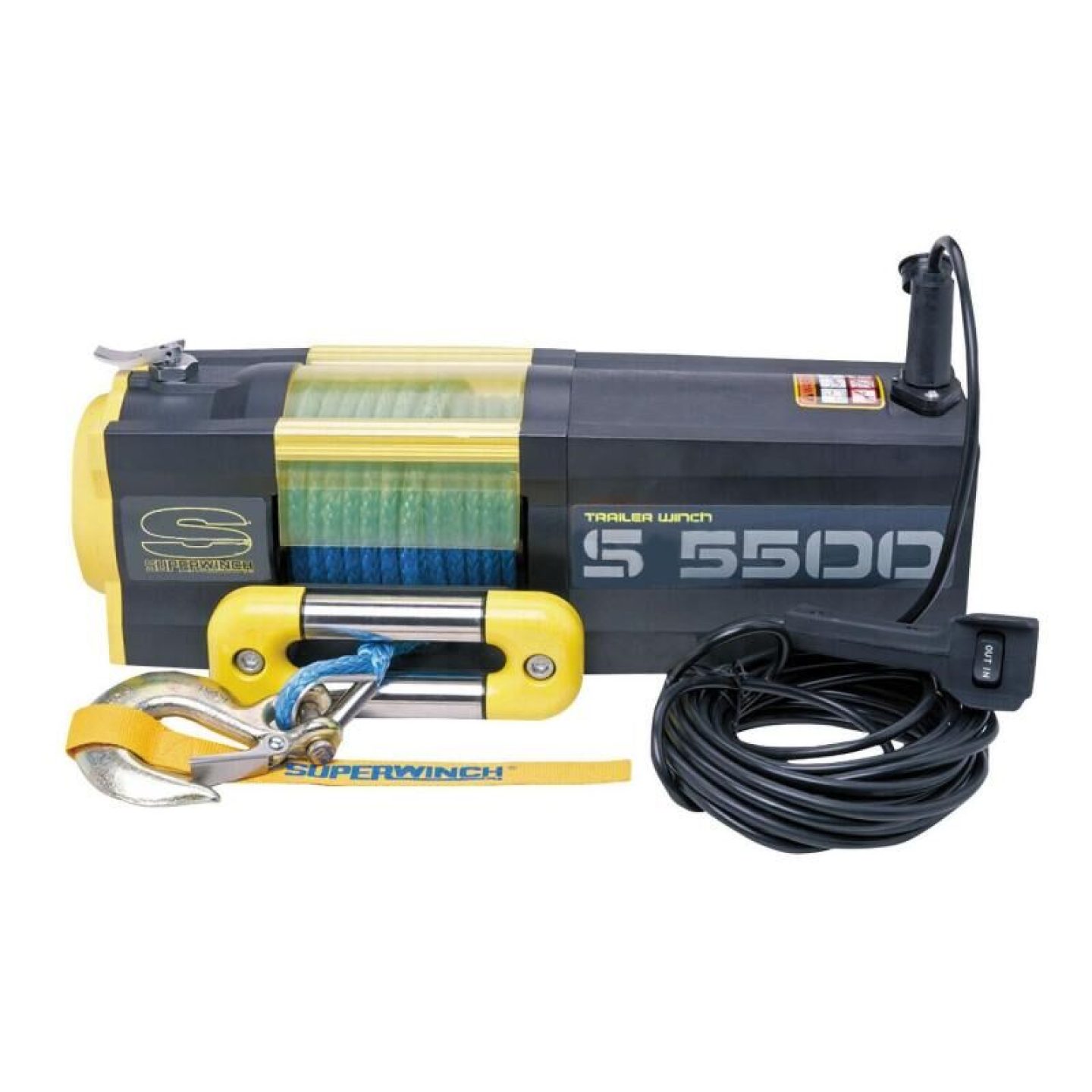

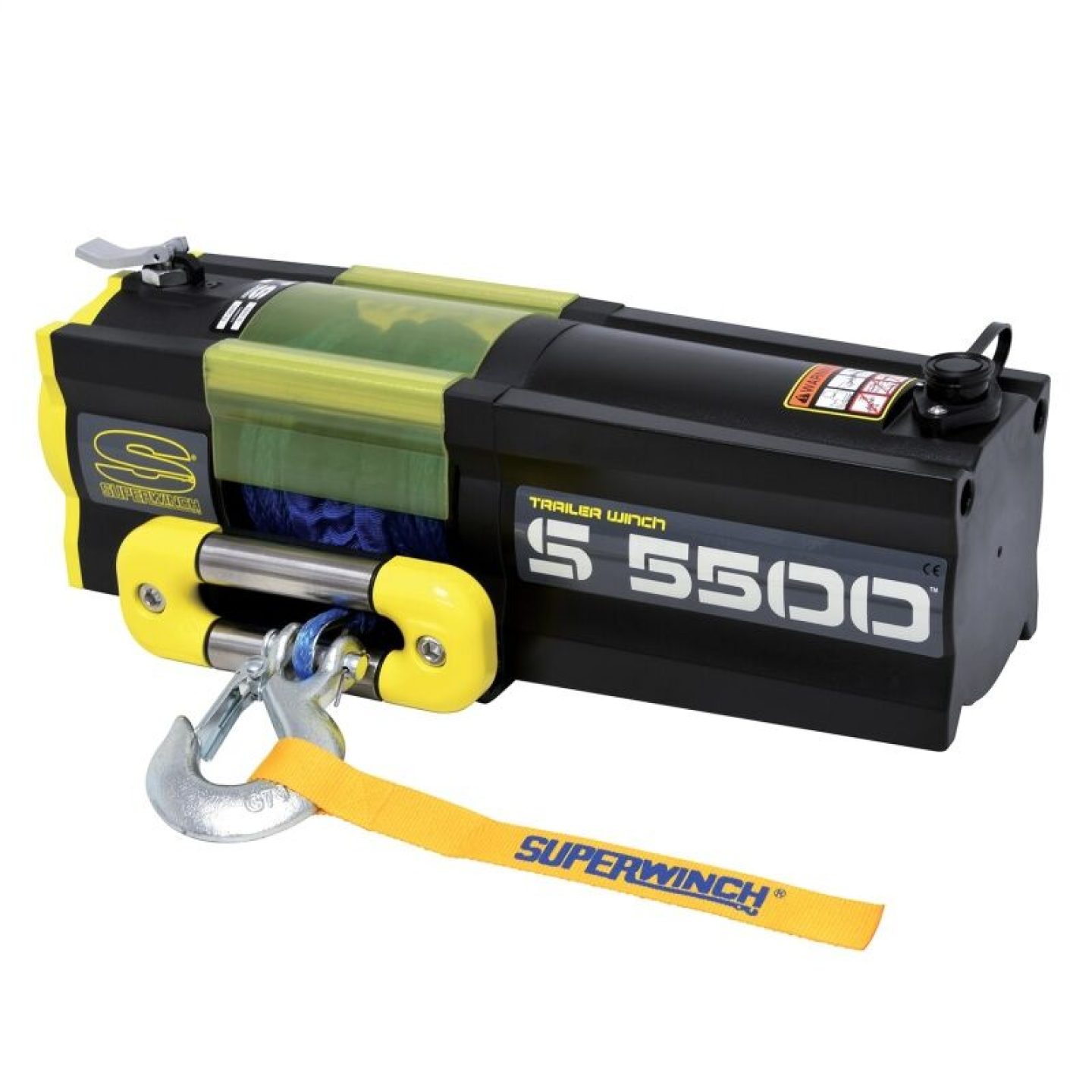

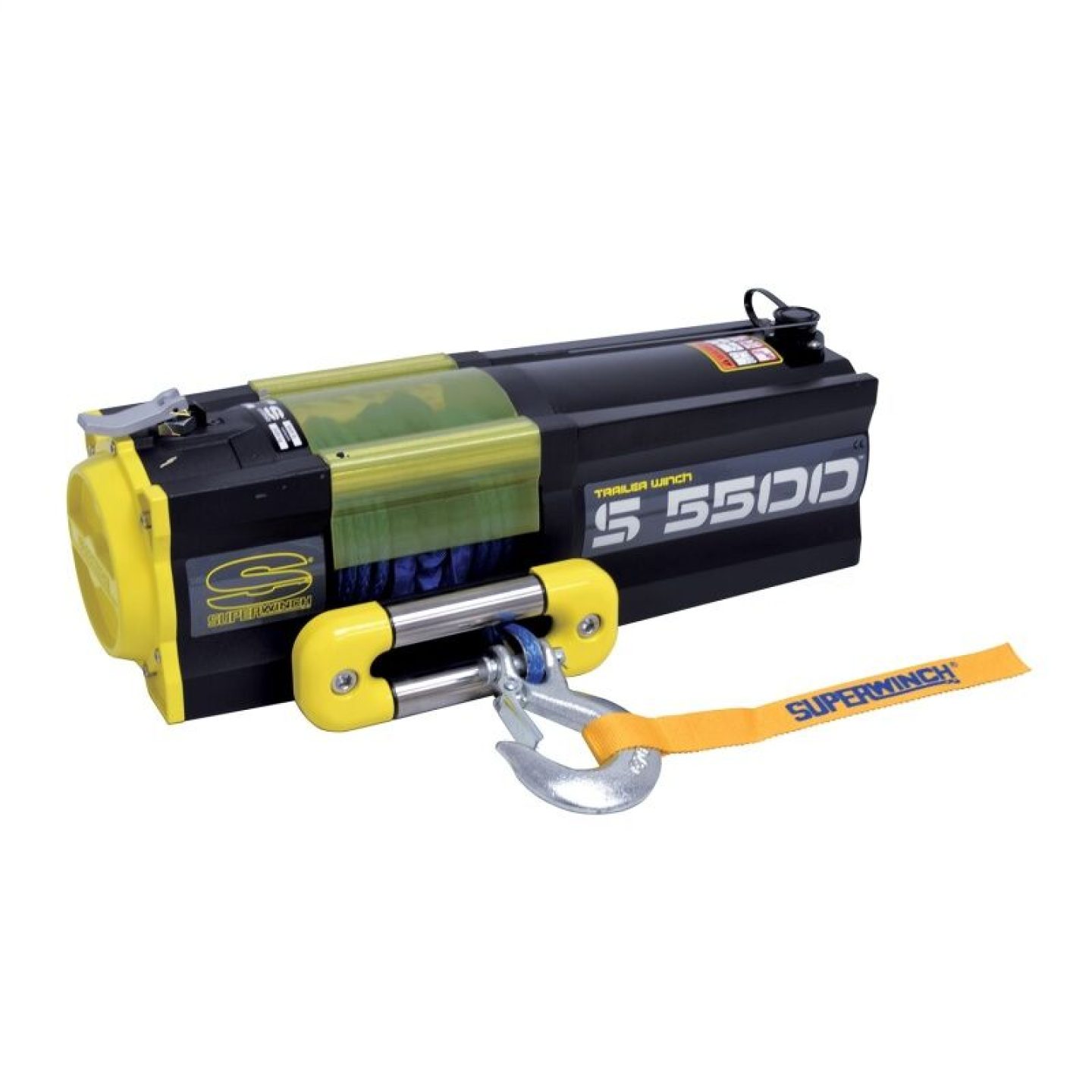

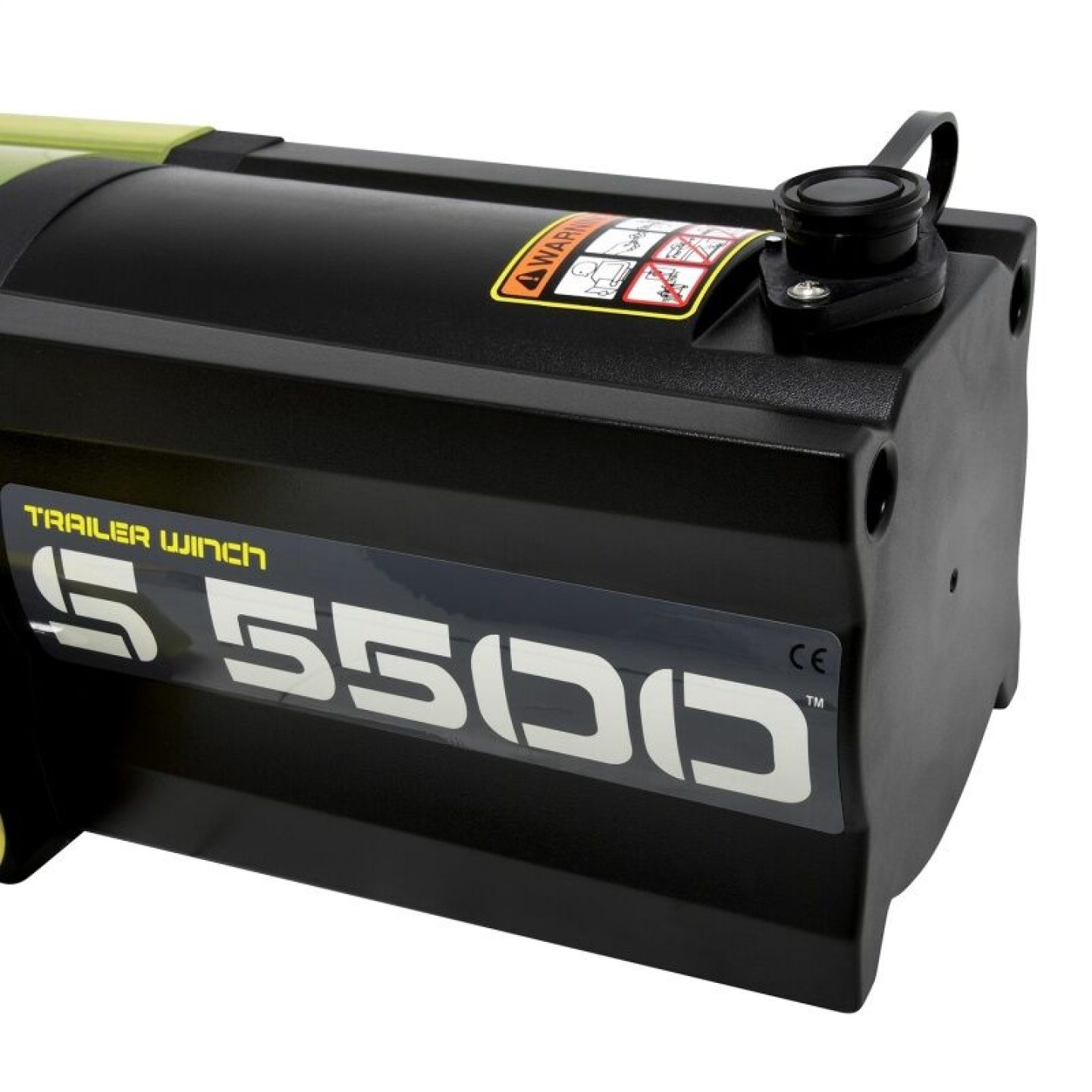

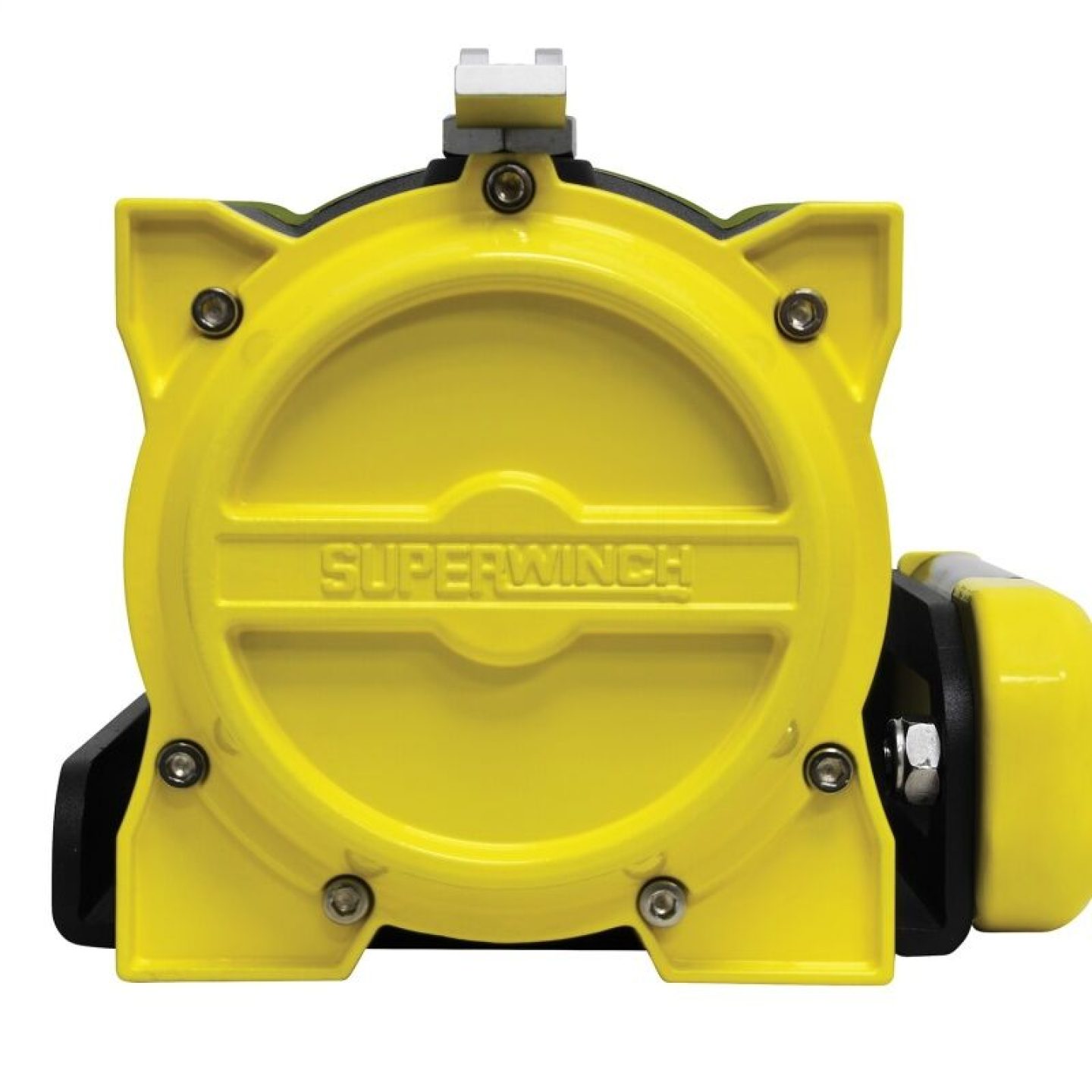

The S5500 Winch continues Superwinch's dominance as the leader in trailer-specific winching. The S5500 trailer winch easily pulls 5,500 lbs powered by its 3.6 hp permanent magnet motor, and its all steel 3-stage planetary gear box. The S5500 includes a safety tinted protective cover which protects the cable, drum and operators fingers. The machined aluminum free-spool lever can also be operated easily by foot.

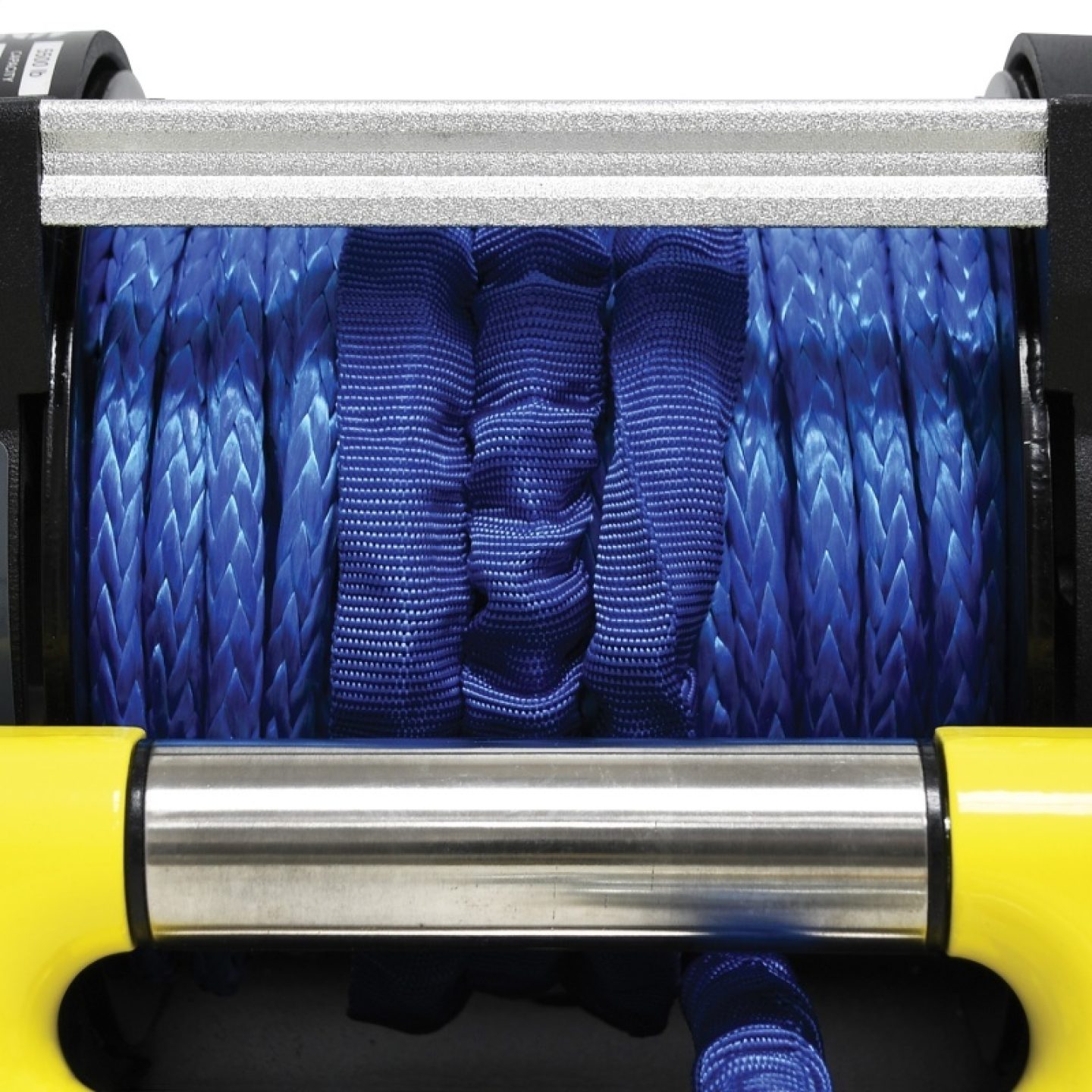

S5500 Winch Synthetic; 5500 lbs.; 3.6hp; 12V; 1/4 in. x 60 ft. Synthetic Rope; Yellow;

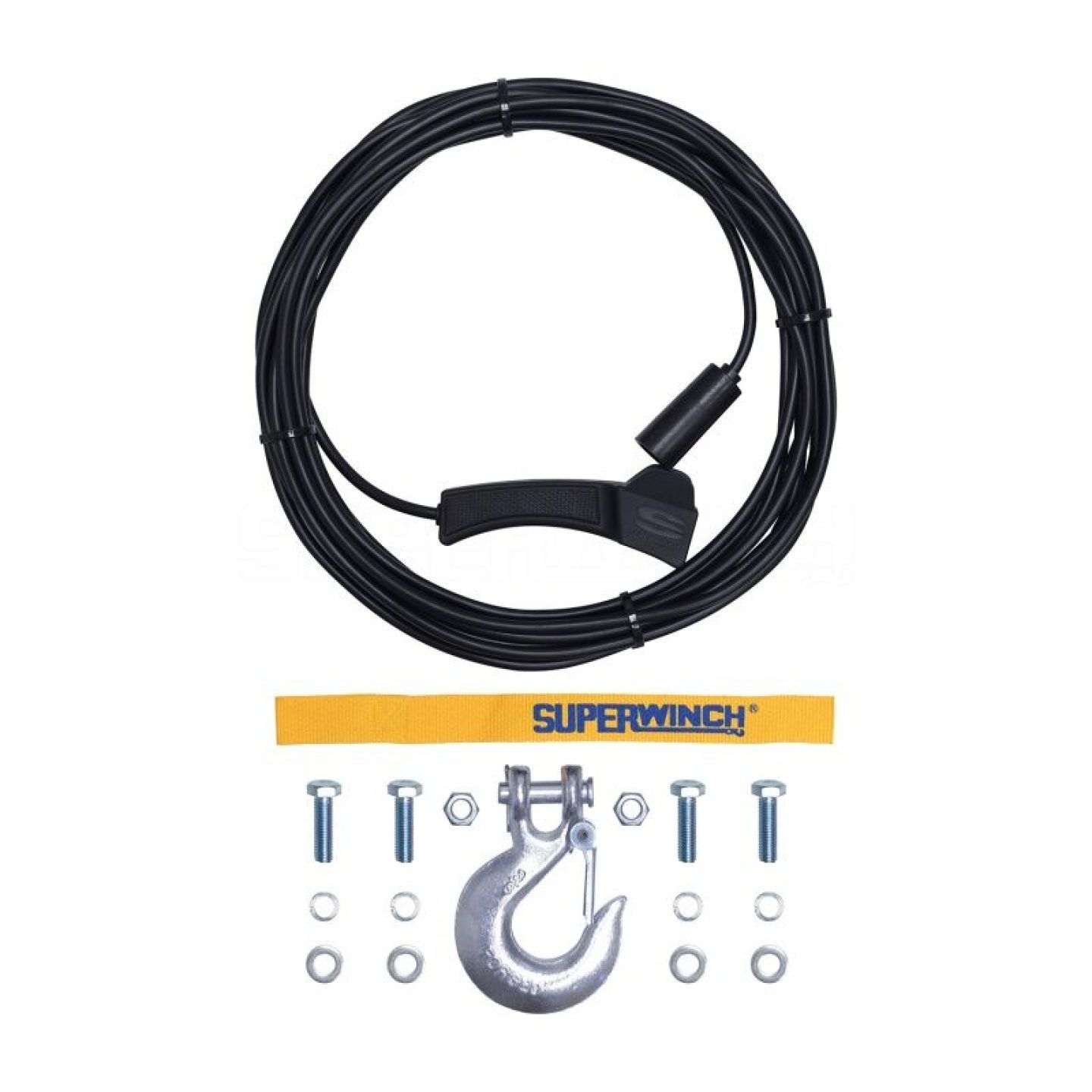

5;500 lbs; 12 VDC; 1/4 in x 60 ft synthetic rope; 30.5 ft handheld remote control; 3.6 Hp; mechanical brake; 3-stage planetary; 185:1 gear ratio; 2-way fairlead
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Winch, S Series Trailer Winch, Electric, 12 V, 60 ft. Length Synthetic Rope, 30 ft. Wired Remote, Each
Superwinch S Series trailer winches are known for their reliability, brute strength, and durability. "S" stands for simple, and they feature more power and capacity, lower amp draw, and a foot-activated aluminum "kick-flip lever" to control freespool with ease. And now there are more ways to control your winch. Choose the line material, length, and pull rating needed for your application. Superwinch S Series trailer winches—smart and simple with no parts to rust!
UPC | 22705006019 |
Brake | Yes |
Brand | Superwinch |
Notes | Winch can be mounted with the 2-bolt or 4-bolt pattern. |
Volts | 12 V |
Weight | 42.000 lbs. |
Quantity | Sold individually. |
Part Type | Winches |
Power Out | Yes |
Drive Gear | 3-stage planetary |
Remote Type | Wired |
Winch Style | Electric |
Product Line | Superwinch S Series Trailer Winches |
Remote Style | Hand-held |
Free-Spooling | Yes |
Remote Included | Yes |
Winch Line Type | Rope |
Motor Horsepower | 3.60 hp |
Pull Rating (lbs.) | 5,500 lbs. |

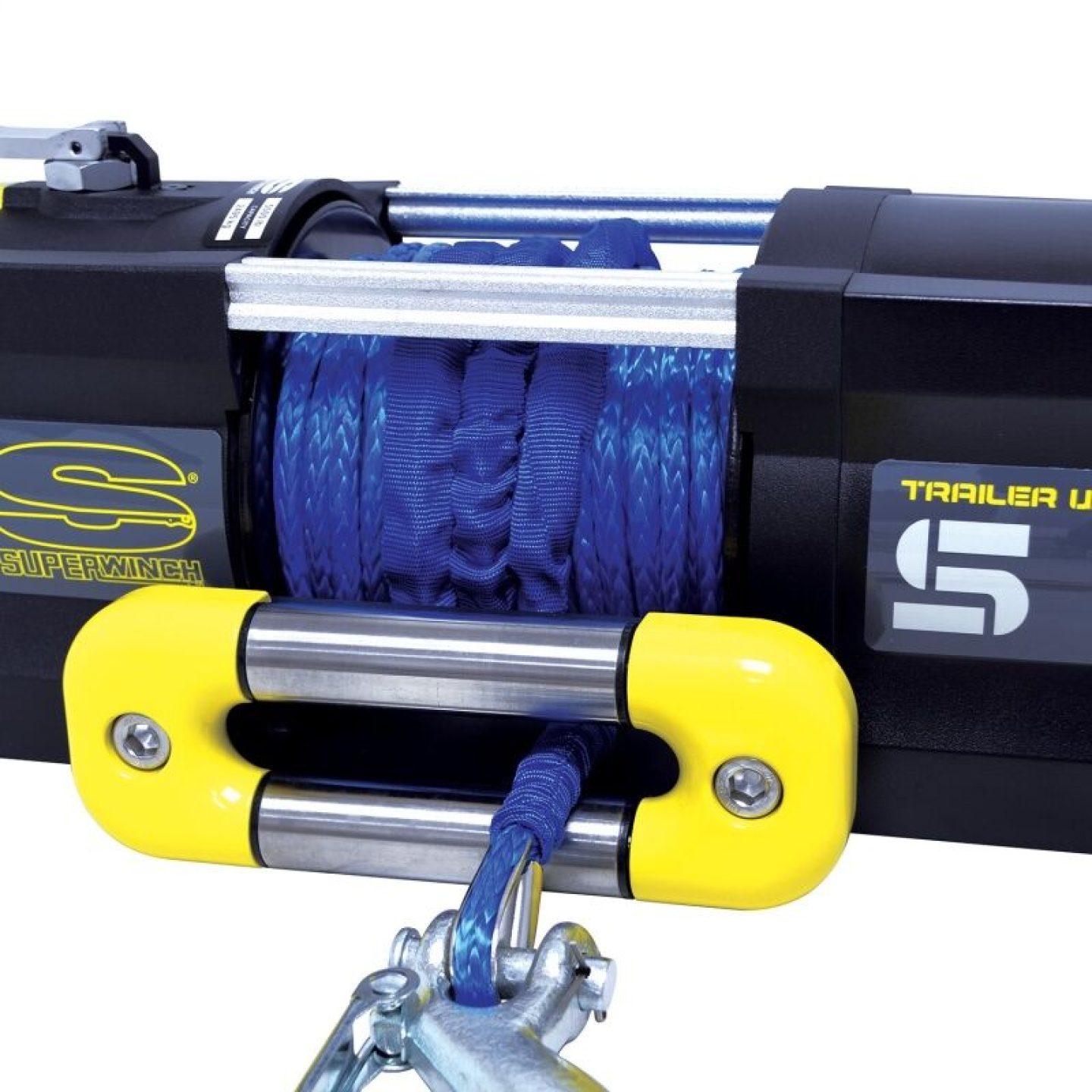

Winch Fairlead Type | Roller |
Winch Line Included | Yes |
Winch Line Material | Synthetic |
Gear Reduction Ratio | 185:1 |
Mounting Hole Quantity | 6 holes |
Winch Line Length (ft.) | 60.00 ft. |
Remote Cord Length (ft.) | 30.00 ft. |
Winch Line Diameter (in.) | 1/4 in. |
Conforms to J706 Standards | No |
Manufacturer's Part Number | 1455201 |
Mounting Pattern Width (in.) | 4.490 in. |
Mounting Pattern Length (in.) | 6.000 in. |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Universal | Yes |
