A-Arm Set
Features:
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

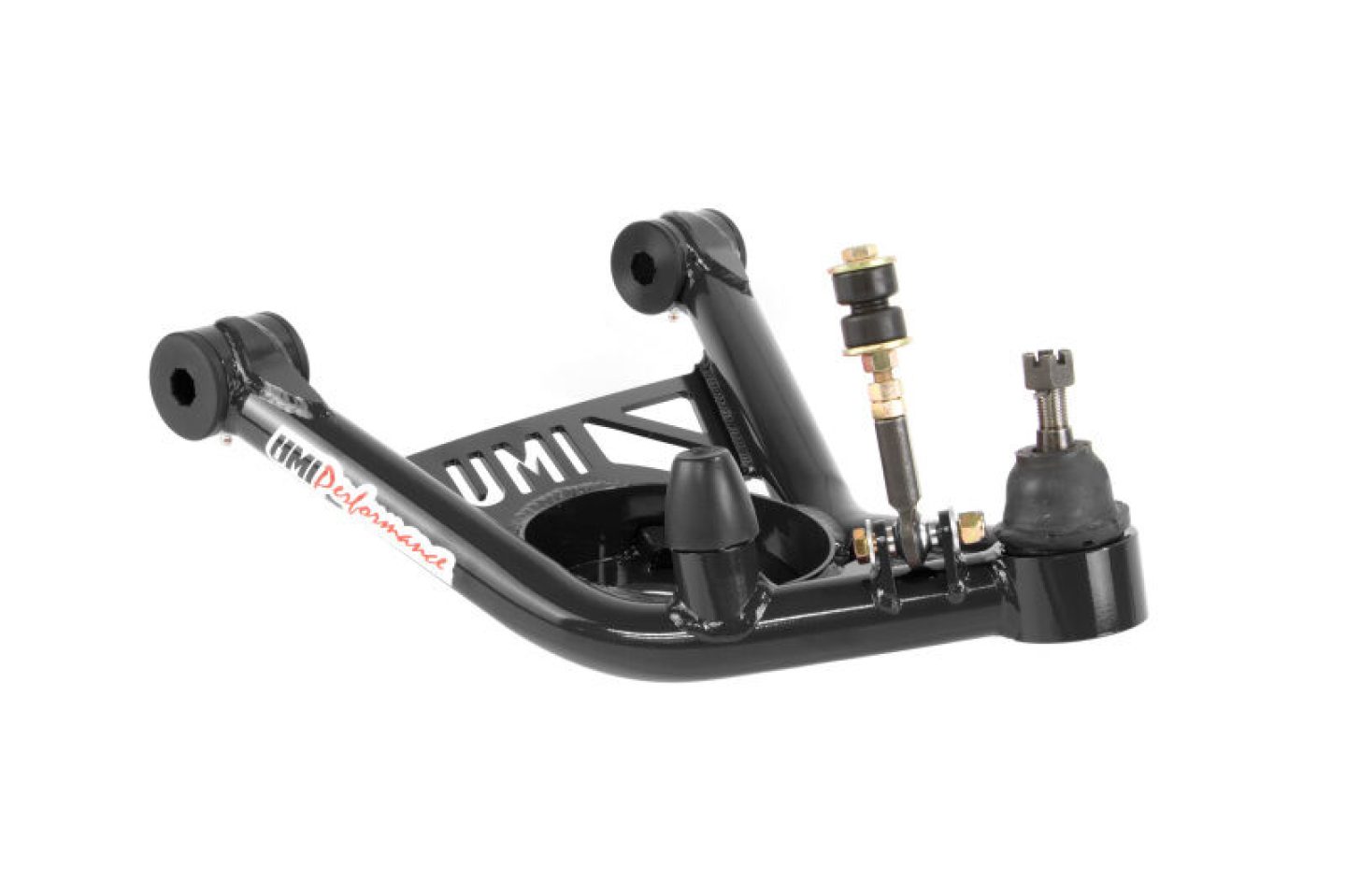

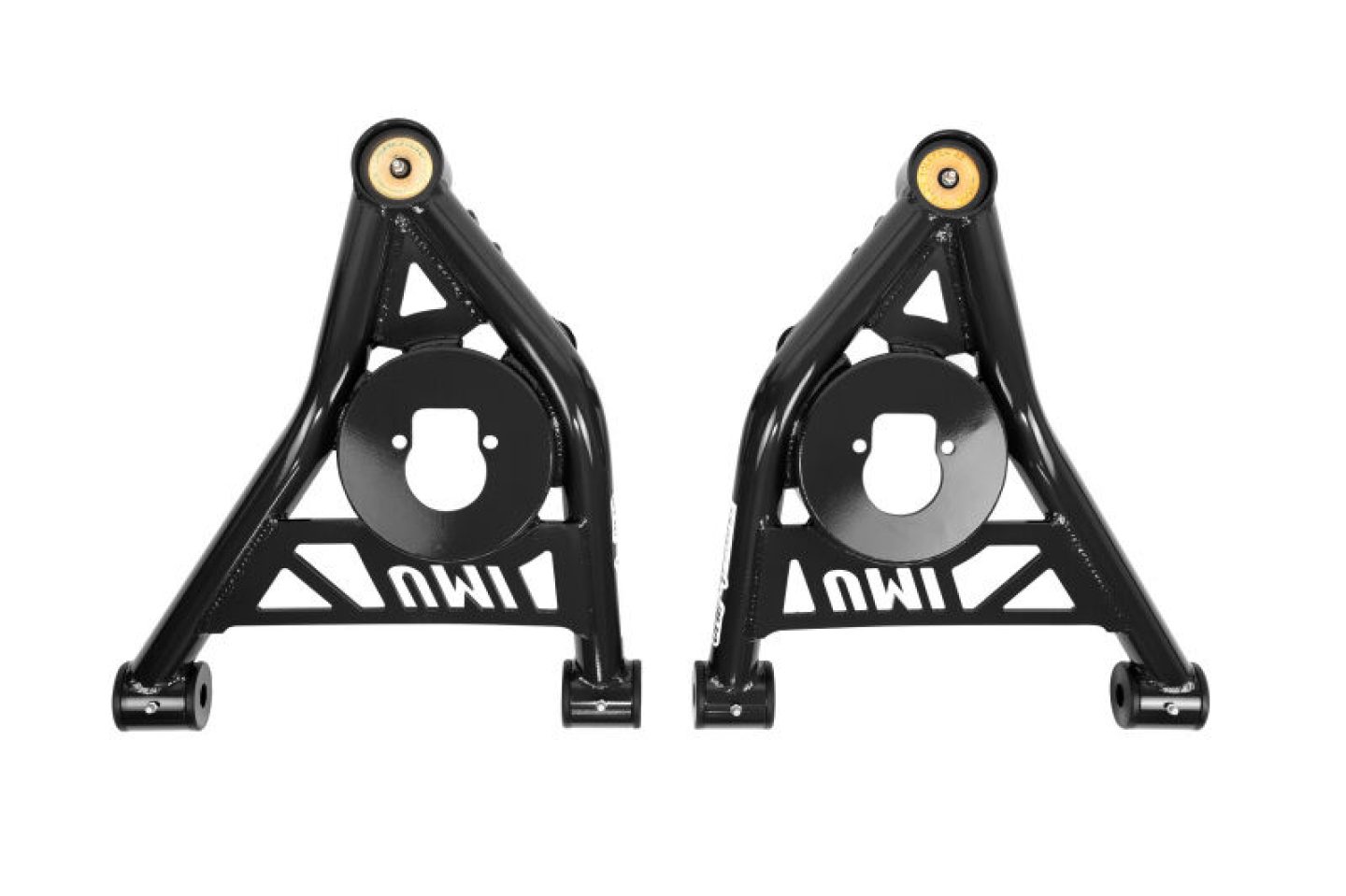

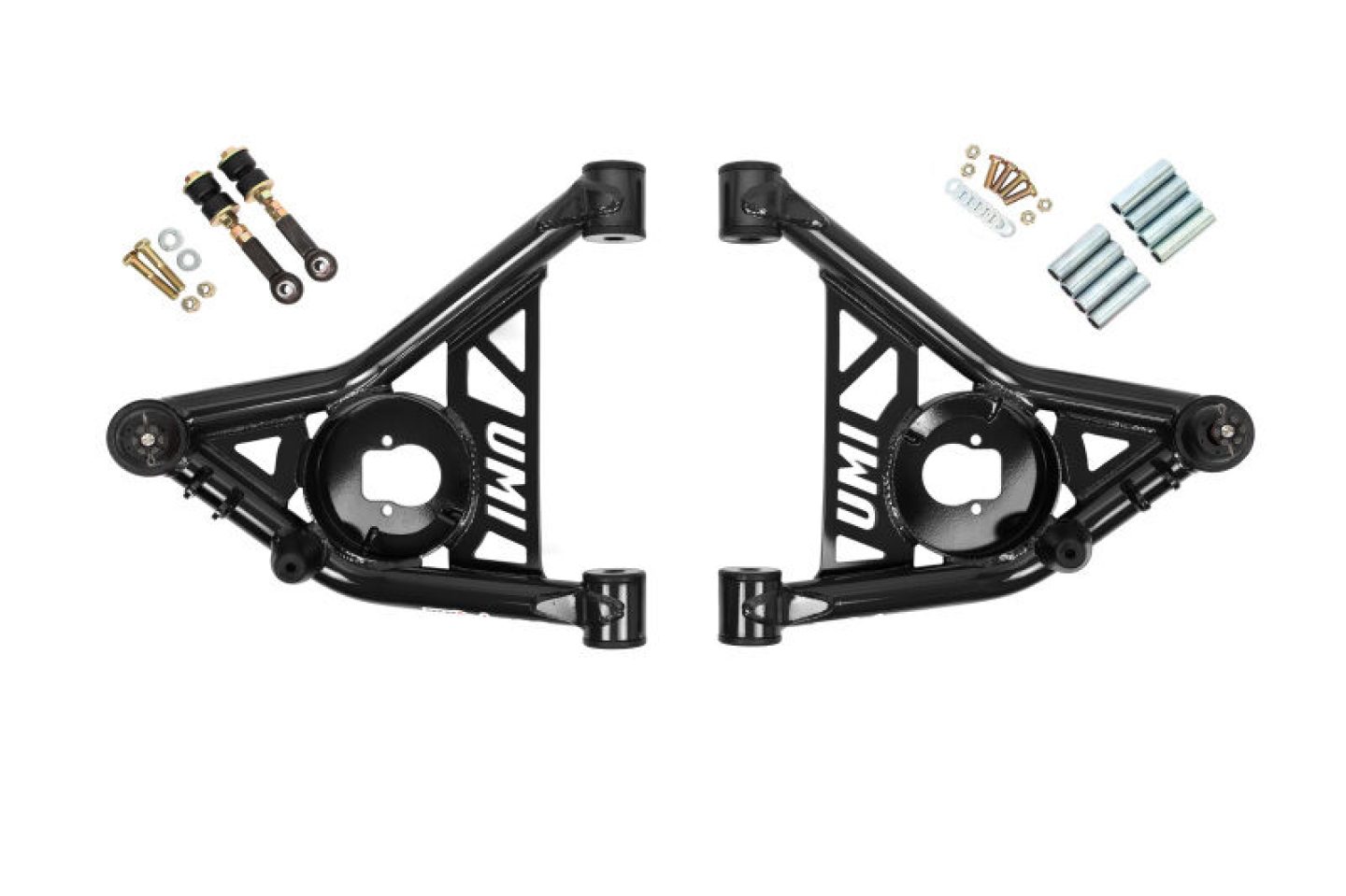

CONTROL ARM KIT Front Lower A-arms, Polyurethane Bushings
UMI's 2nd Generation F-body lower A-arms are perfect for the F-body enthusiast seeking to improve the performance and appearance of their front suspension. They feature caster relocation of the ball joint to enhance steering feel and improve high-speed stability. UMI Performance 1970-81 GM F-body front lower A-arm kits are built with heavy-duty spring buckets, premium ball joints, laser-cut reinforcement plates, double-shear sway bar end links, and either polyurethane or Delrin® bushings. Available with a red or black powdercoating, choose the color and bushings preferred. Additional features: * Ball joint relocation increases caster by 2 degrees for enhanced performance * 1.500 in. DOM steel tubing construction * Heavy-duty spring bucket accepts factory and aftermarket coil springs * Spring bucket is compatible with popular hybrid coils, such as Viking and QA1 * Laser-cut UMI reinforcement plates add a great appearance and excellent strength * High-quality greaseable polyurethane bushings and bump stops provide a crisp yet comfortable ride * Delrin® bushings enhance steering precision and reduce friction for all racing applications * Double shear, swivel-style sway bar mounts and hardware work with UMI's front sway bar and most other factory eyelet-style sway bars
Brand | UMI Performance |
Manufacturer's Part Number | 2651-B |
Part Type | Control Arms |
Product Line | UMI Performance 1970-81 GM F-Body Front Lower A-Arm Kits |
Control Arm Style | Tubular |
Control Arm Material | Steel |
Ball Joint Included | Yes |
Bushings Included | Yes |
Control Arm Color | Black |
Adjustable | No |
Hardware Included | No |
Bushing Material | Polyurethane |
Quantity | Sold as a pair. |
UMI Performance 70-81 GM F-Body Front Lower A-arms Polyurethane Bushings | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
1978-1985 | Buick | LeSabre | Base, Custom, Sport, Limited, Limited Edition F/E, Collector's Edition, Estate Wagon | US |
1991-1996 | Buick | Roadmaster | Estate Wagon, Base, Limited, Collector's Edition, Limited Collector's Edition, Estate Wagon Collector's Edition | US |
1970-1981 | Chevrolet | Camaro | Base, RS, SS, Z28, LT, Rally Sport, LT Rally Sport, Berlinetta, Sport | US |
1978-1996 | Chevrolet | Caprice | Classic, Classic Estate, Classic Landau, Classic Sport, Base, Classic Brougham, Classic LS Brougham, Classic LTZ, Classic LS | US |
1994-1996 | Chevrolet | Impala | SS | US |
1977-1981 | Pontiac | Bonneville | Base, Brougham, Safari | US |
1977-1981 | Pontiac | Catalina | Base, Safari | US |
1970-1981 | Pontiac | Firebird | Base, Esprit, Formula, Trans Am | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Universal | No |
Control Arm Position | Front Left Lower |
Make | CHEVROLET |
Model | CAMARO |
Submodel | BASE |
Beginning Year | 1970 |
Ending Year | 1973 |
Drivetrain | RWD |
Engine Type | V8 |
Engine Size | 5.0L/307 |
Engine Family | Chevy small block Gen I |
Universal | No |
Control Arm Position | Front Left Lower |
Make | CHEVROLET |
Model | CAMARO |
Submodel | BASE |
Beginning Year | 1970 |
Ending Year | 1979 |
Drivetrain | RWD |
Engine Type | L6 |
Engine Size | 4.1L/250 |
Engine Family | GM inline 6-cylinder |
Universal | No |
Control Arm Position | Front Left Lower |
Make | CHEVROLET |
Model | CAMARO |
Submodel | BASE |
Beginning Year | 1970 |
Ending Year | 1980 |
Drivetrain | RWD |
Engine Type | V8 |
Engine Size | 5.7L/350 |
Engine Family | Chevy small block Gen I |
