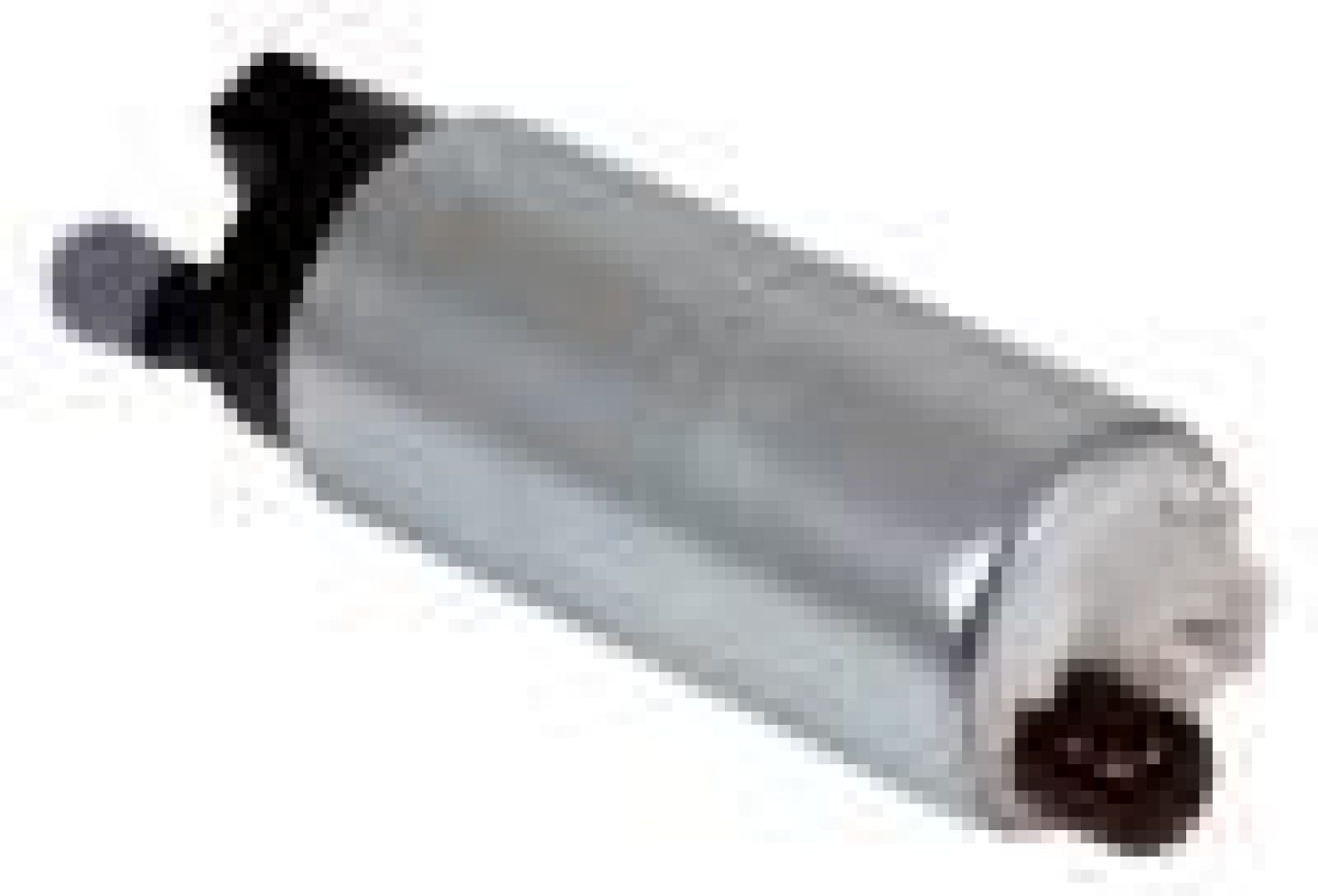

Walbro electric in-tank fuel pumps are available in a variety of flow ratings, including pumps that flow significantly more fuel at higher pressure. The outside dimensions, however, of many pumps are compact enough to fit existing hanger assemblies, without modification. All pumping components have been validated to OEM specifications for use in E85/flex fuel applications.
Most Walbro in-tank fuel pumps utilize a proven gerotor design. Some high-performance models, including those designed for engines with more than 750 hp, feature a dual-channel turbine design for maximum efficiency in high-pressure and high-temperature applications. The blades feed two high-pressure pumping channels, as opposed to a conventional single-stage pump that uses an impeller with a single row of blades at its outer edge. This innovative design results in improved hot fuel flow, as well as minimal noise and current use, resulting in efficiency that's higher than conventional pumps. Some pumps require modifications to system wiring, fuel lines, and the fuel module, and should be professionally installed.

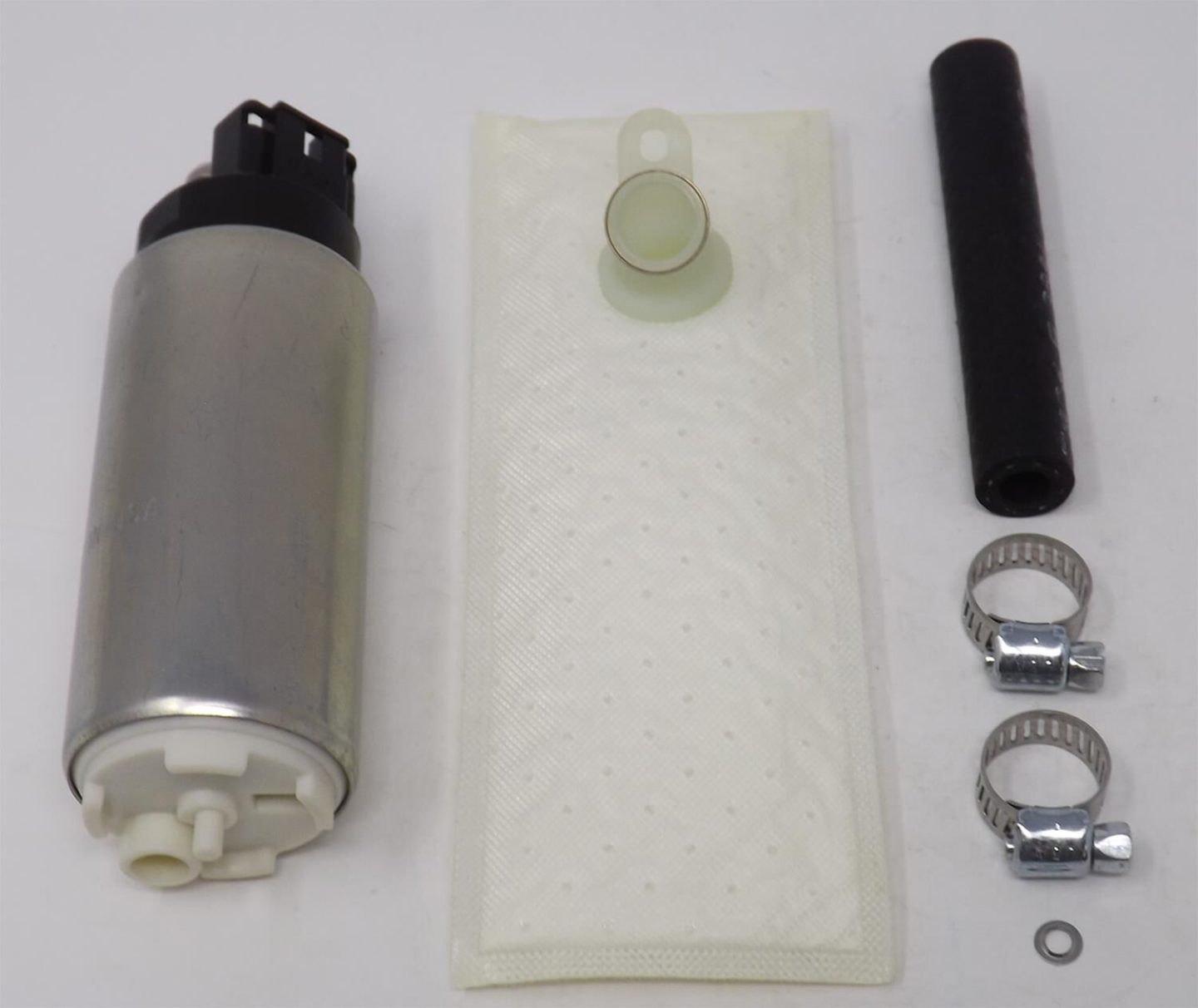

Installation kits including a fuel strainer, fuel hose, harness pigtail, clamps, and wire connectors are sold separately.
UPC | 086235336626 |
Brand | Walbro |
Quantity | Sold individually. |
Flow Rate | 67 gph/255 lph |
Part Type | Fuel Pumps |
Product Line | Walbro Electric In-Tank Fuel Pumps |
Fuel Pump Type | Electric In-tank |
Inlet Quantity | 1 |
Gasket Included | No |
Outlet Quantity | 1 |
Pulley Included | No |
Inlet Attachment | Stock |
Fuel Pump Voltage | 12 V |
Outlet Attachment | Stock |
Fuel Pressure (psi) | 60 psi |
Fuel Pump Inlet Size | Stock |
Fuel Pump Outlet Size | Stock |
Sending Unit Included | No |
Wiring Harness Included | No |
Mounting Bracket Included | No |
Summit Racing Part Number | VPN-GCA3366-2 |
Manufacturer's Part Number | GCA3366-2 |
Mounting Hardware Included | No |
Fuel Pressure Regulator Included | No |
Compatibility & Application Information | |
---|---|
Universal | No |
Make | ACURA |
Model | INTEGRA |
Submodel | GS-R |
Beginning Year | 1994 |
Ending Year | 1999 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 1.8L/1797cc |
Fuel Type | Gasoline |
Universal | No |
Make | ACURA |
Model | INTEGRA |
Submodel | GS |
Beginning Year | 1997 |
Ending Year | 1999 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 1.8L/1834cc |
Fuel Type | Gasoline |
Universal | No |
Make | ACURA |
Model | INTEGRA |
Submodel | LS |
Beginning Year | 1994 |
Ending Year | 1999 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 1.8L/1834cc |
Fuel Type | Gasoline |
Universal | No |
Make | ACURA |
Model | INTEGRA |
Submodel | RS |
Beginning Year | 1994 |
Ending Year | 1998 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 1.8L/1834cc |
Fuel Type | Gasoline |
Universal | No |
Make | ACURA |
Model | INTEGRA |
Submodel | SPECIAL EDITION |
Beginning Year | 1995 |
Ending Year | 1996 |
Engine Type | L4 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 1.8L/1834cc |
Fuel Type | Gasoline |
Walbro PUMP & INSTALLATION KIT PACKAGE | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
1992 | Honda | Civic | DX | US |
1992 | Honda | Civic | Si | US |
1992 | Honda | Civic | CX | US |
1992 | Honda | Civic | LX | US |
1992 | Honda | Civic | EX | US |
1992 | Honda | Civic | VX | US |
1993 | Honda | Civic | DX | US |
1993 | Honda | Civic | Si | US |
1993 | Honda | Civic | LX | US |
1993 | Honda | Civic | CX | US |
1993 | Honda | Civic | VX | US |
1993 | Honda | Civic | EX | US |
1994 | Honda | Civic | Si | US |
1994 | Honda | Civic | CX | US |
1994 | Honda | Civic | VX | US |
1994 | Honda | Civic | LX | US |
1994 | Honda | Civic | EX | US |
1994 | Acura | Integra | GS-R | US |
1994 | Acura | Integra | RS | US |
1994 | Acura | Integra | LS | US |
1994 | Honda | Civic | DX | US |
1995 | Honda | Odyssey | LX | US |
1995 | Acura | Integra | LS | US |
1995 | Honda | Civic | VX | US |
1995 | Honda | Civic | DX | US |
1995 | Honda | Civic | LX | US |
1995 | Honda | Civic | EX | US |
1995 | Acura | Integra | Special Edition | US |
1995 | Honda | Odyssey | EX | US |
1995 | Honda | Civic | Si | US |
1995 | Acura | Integra | GS-R | US |
1995 | Acura | Integra | RS | US |
1995 | Honda | Civic | CX | US |
1996 | Honda | Odyssey | LX | US |
1996 | Honda | Civic | DX | US |
1996 | Honda | Odyssey | EX | US |
1996 | Honda | Civic | HX | US |
1996 | Honda | Civic | CX | US |
1996 | Honda | Civic | LX | US |
1996 | Acura | Integra | GS-R | US |
1996 | Acura | Integra | LS | US |
1996 | Honda | Civic | EX | US |
1996 | Acura | Integra | Special Edition | US |
1996 | Acura | Integra | RS | US |
1997 | Honda | Odyssey | EX | US |
1997 | Honda | Civic | DX | US |
1997 | Honda | Civic | EX | US |
1997 | Honda | Civic | LX | US |
1997 | Acura | Integra | RS | US |
1997 | Honda | Civic | HX | US |
Note: Over 50 fitments returned for this product, this table is trimmed to only display the first 50. |
