Fuel Pump
TI Automotive is the builder of the most popular fuel pumps and modules for over 60 years under the Walbro brand name. We value this heritage and are proud to continue our legacy of reliability, performance and first-time fit. TI Automotive fuel pumps, fuel pump kits, module assemblies, filters and accessories deliver the feed you need for the power you demand. These products deliver unquestioned fuel flow across a wide pressure range to support outrageous horsepower. TI Automotive fuel pumps are available for in-tank or in-line needs across a variety of fuels featuring the award winning 39/50 in-tank pump and the GSS line featuring the popular 255LPH pump. They deliver high-pressure, high flow performance for engines with more than 500hp. Pump kits, filters and accessories are available to help you with your installation needs and are designed as direct-fit replacements. Our products are engineered to win through decades of technical expertise and by settling for nothing less than superior hot fuel performance. Proudly union made in TI Automotive?s Caro, Michigan plant across 5 fuel pump and 14 modules assembly lines. Our fuel pumps and modules are never manufactured or assembled by a third party or sourced from an outside company. Fluid Thinking shapes the mindset of TI Automotive.
TI Automotive High Performance 450lph; 750hp; FFV; Pump Only
Electric Fuel Pump
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

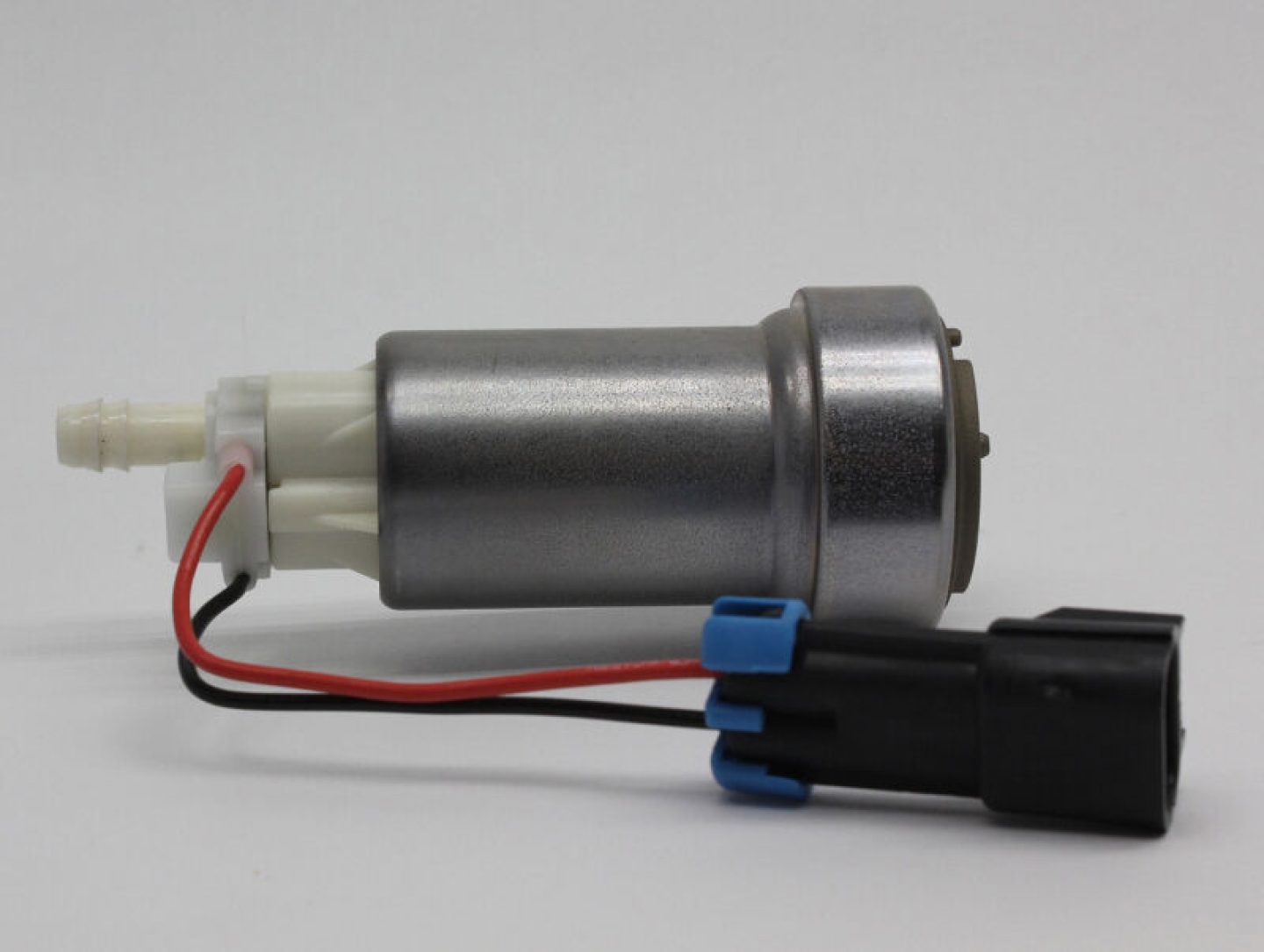

Fuel Pumps, Electric In-Tank, 12 V, 135 psi, 119 gph, One Inlet, One 10mm Hose Barb Outlet, E85, Gasoline, Each
Walbro electric in-tank fuel pumps are available in a variety of flow ratings, including pumps that flow significantly more fuel at higher pressure. The outside dimensions, however, of many pumps are compact enough to fit existing hanger assemblies, without modification. All pumping components have been validated to OEM specifications for use in E85/flex fuel applications. Most Walbro in-tank fuel pumps utilize a proven gerotor design. Some high-performance models, including those designed for engines with more than 750 hp, feature a dual-channel turbine design for maximum efficiency in high-pressure and high-temperature applications. The blades feed two high-pressure pumping channels, as opposed to a conventional single-stage pump that uses an impeller with a single row of blades at its outer edge. This innovative design results in improved hot fuel flow, as well as minimal noise and current use, resulting in efficiency that's higher than conventional pumps. Some pumps require modifications to system wiring, fuel lines, and the fuel module, and should be professionally installed. Installation kits including a fuel strainer, fuel hose, harness pigtail, clamps, and wire connectors are sold separately.
UPC | 00086235592749 |
Brand | Walbro |
Notes | Designed for engines with 750 HP or more. |
Quantity | Sold individually. |
Flow Rate | 119 gph/450 lph |
Part Type | Fuel Pumps |
Product Line | Walbro Electric In-Tank Fuel Pumps |
Fuel Pump Type | Electric In-tank |
Inlet Quantity | 1 |
Gasket Included | No |
Outlet Quantity | 1 |
Pulley Included | No |
Fuel Pump Voltage | 12 V |
Outlet Attachment | Hose barb |
Fuel Pressure (psi) | 135 psi |
Fuel Pump Outlet Size | 10mm |
Sending Unit Included | No |
Wiring Harness Included | No |
Mounting Bracket Included | No |
Manufacturer's Part Number | F90000274 |
Mounting Hardware Included | No |
Fuel Pressure Regulator Included | No |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Universal | Yes |
Fuel Type | FLEX |
Application Notes | Designed for engines with 750 HP or more. |
Universal | Yes |
Fuel Type | GAS |
Application Notes | Designed for engines with 750 HP or more. |
