Combination hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake. CPB kits are built primarily for front wheel drive vehicles, and select rear wheel drive axles that are not well suited for internal shoe style parking brakes. The calipers are coupled with oversized two-piece rotor assemblies with aluminum hats and high friction BP-10 compound pads. CPB kits provide the correct balanced brake performance and matching style to compliment front big brake upgrade kits.
Wilwood combination parking brake kits provide the correct balanced brake performance, plus matching style to complement front big brake upgrade kits. These packages combine hydro-mechanical parking brake calipers using hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake. Wilwood couples the calipers to 11 in., one-piece rotor assemblies with integral hats and high-friction BP-10 compound pads. These combination parking brake kits are ideal for select rear-wheel drive axles that are not well-suited for internal shoe-style parking brakes.
UPC | 889545009248 |
Brand | Wilwood Disc Brakes |
Position | Rear |
Quantity | Sold as a kit. |
Part Type | Disc Brake Kits |
Product Line | Wilwood Combination Parking Brake Kits |
Rear Rotor Style | Slotted surface |
Rear Caliper Color | Black |
Parking Brake Style | Mechanical caliper |
Rear Rotor Diameter | 12.88 in./327.15mm |
Rear Rotor Included | Yes |
Brake Hoses Included | No |
Front Rotor Included | No |
Rear Caliper Included | Yes |
Rear Caliper Material | Forged billet aluminum |
Brake Booster Included | No |
Front Caliper Included | No |
Front Spindles Included | No |
Parking Brake Provision | Yes |
Rear Rotor Construction | Vented |
Master Cylinder Included | No |
Manufacturer's Part Number | 140-10310 |
Rear Rotor Thickness (in.) | 0.81 |
Rear Caliper Piston Quantity | One |
Brake Rotor Bolt Pattern (mm) | 5 x 114.30mm |
Brake Rotor Bolt Pattern (in.) | 5 x 4.50 in. |
Minimum Recommended Wheel Diameter (in.) | 17 in. |
Compatibility & Application Information | |
---|---|
Make | HONDA |
Model | S2000 |
Submodel | BASE |
Beginning Year | 2000 |
Ending Year | 2003 |
Engine Type | L4 |
Engine Size | 2.0L/1997cc |
Engine Family | Honda/Acura 4-cylinder |
Liter | 2.0 |
CC | 1997 |
Drivetrain | RWD |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc |
Make | HONDA |
Model | S2000 |
Submodel | BASE |
Beginning Year | 2004 |
Ending Year | 2009 |
Engine Type | L4 |
Engine Size | 2.2L/2157cc |
Engine Family | Honda/Acura 4-cylinder |
Liter | 2.2 |
CC | 2157 |
Drivetrain | RWD |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc |
Make | HONDA |
Model | S2000 |
Submodel | CR |
Beginning Year | 2008 |
Ending Year | 2009 |
Engine Type | L4 |
Engine Size | 2.2L/2157cc |
Engine Family | Honda/Acura 4-cylinder |
Liter | 2.2 |
CC | 2157 |
Drivetrain | RWD |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc |

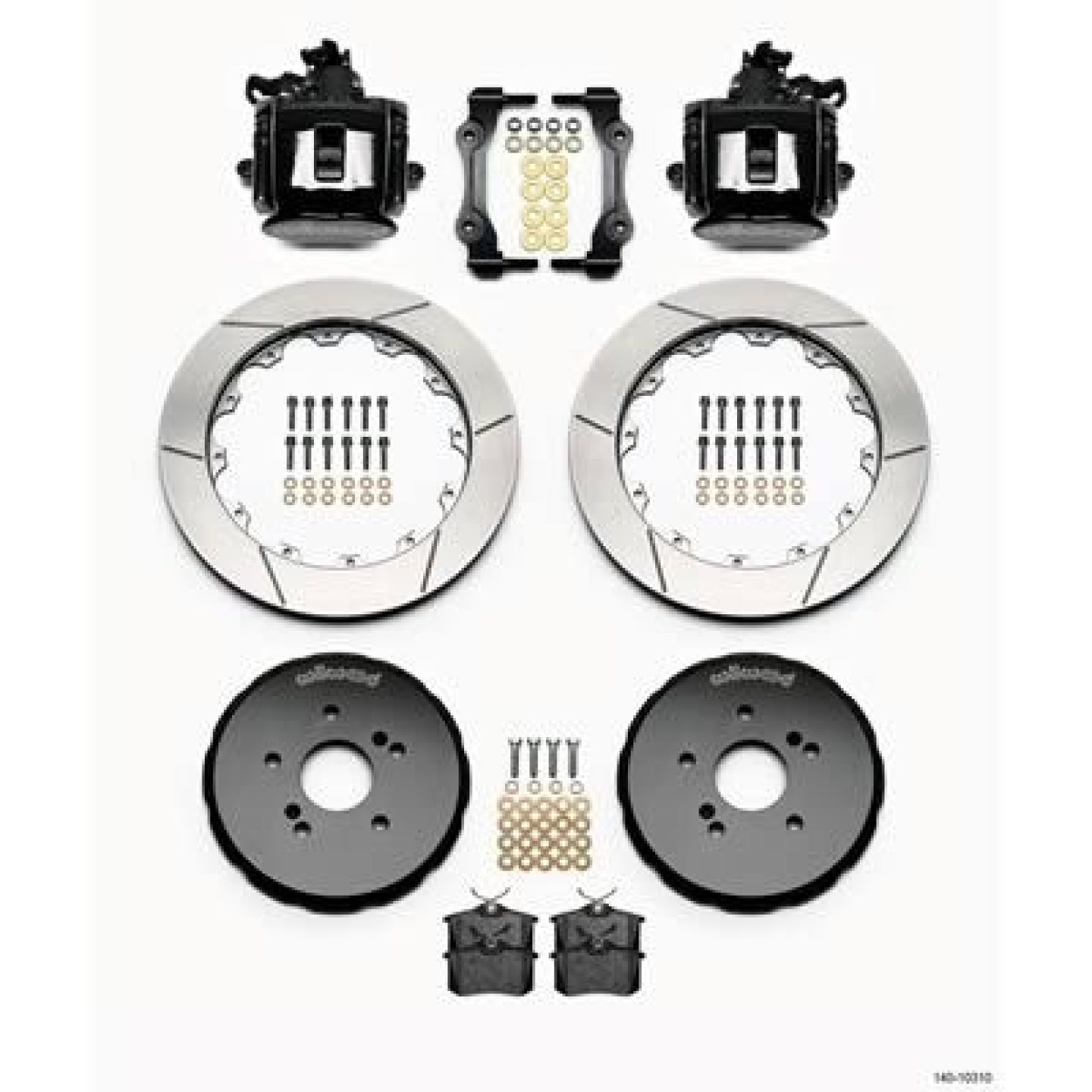

Wilwood Combination Parking Brake Rear Kit 12.88in Honda S2000 | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2000 | Honda | S2000 | Base | US |
2001 | Honda | S2000 | Base | US |
2002 | Honda | S2000 | Base | US |
2003 | Honda | S2000 | Base | US |
2004 | Honda | S2000 | Base | US |
2005 | Honda | S2000 | Base | US |
2006 | Honda | S2000 | Base | US |
2007 | Honda | S2000 | Base | US |
2008 | Honda | S2000 | CR | US |
2008 | Honda | S2000 | Base | US |
2009 | Honda | S2000 | Base | US |
2009 | Honda | S2000 | CR | US |
