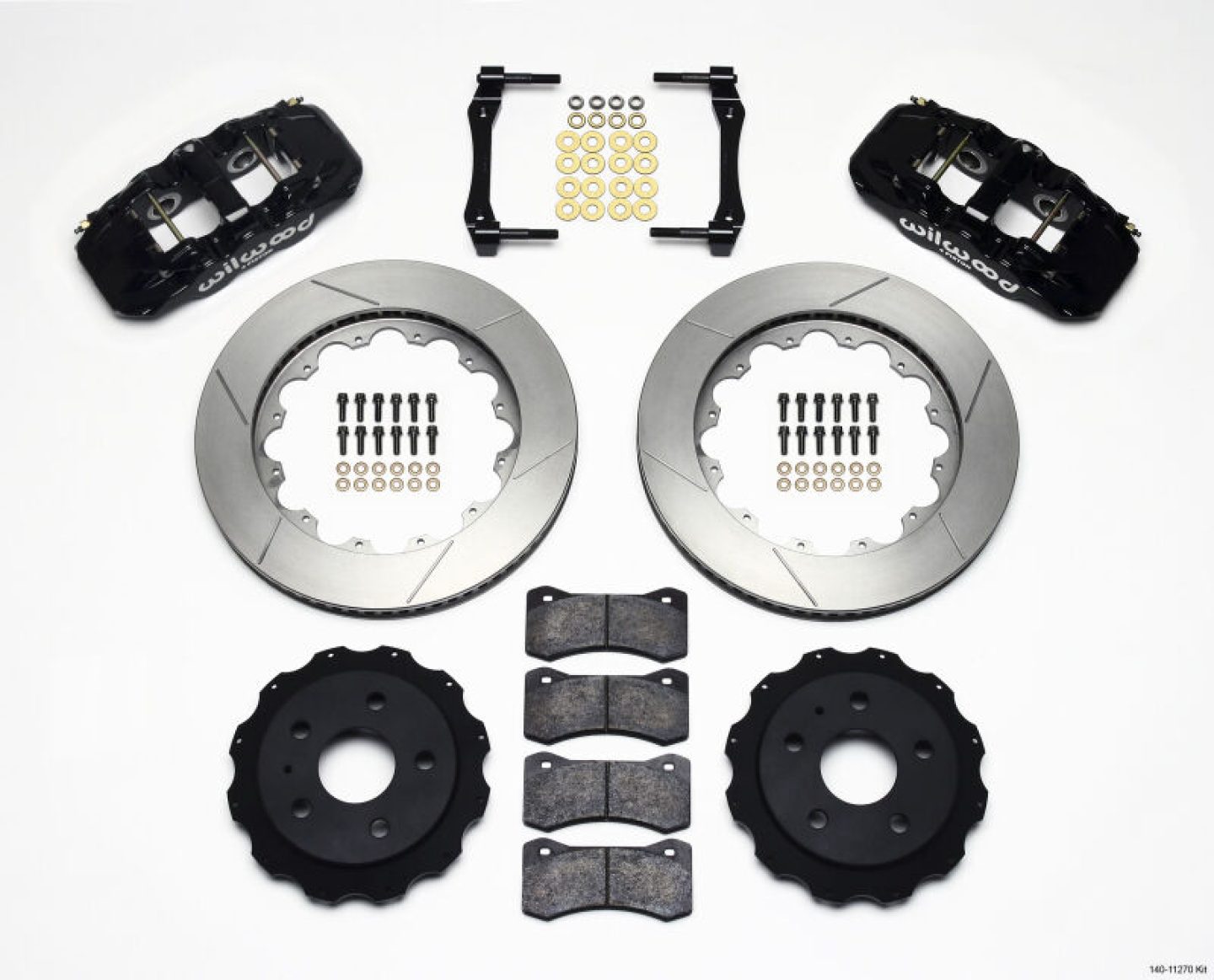

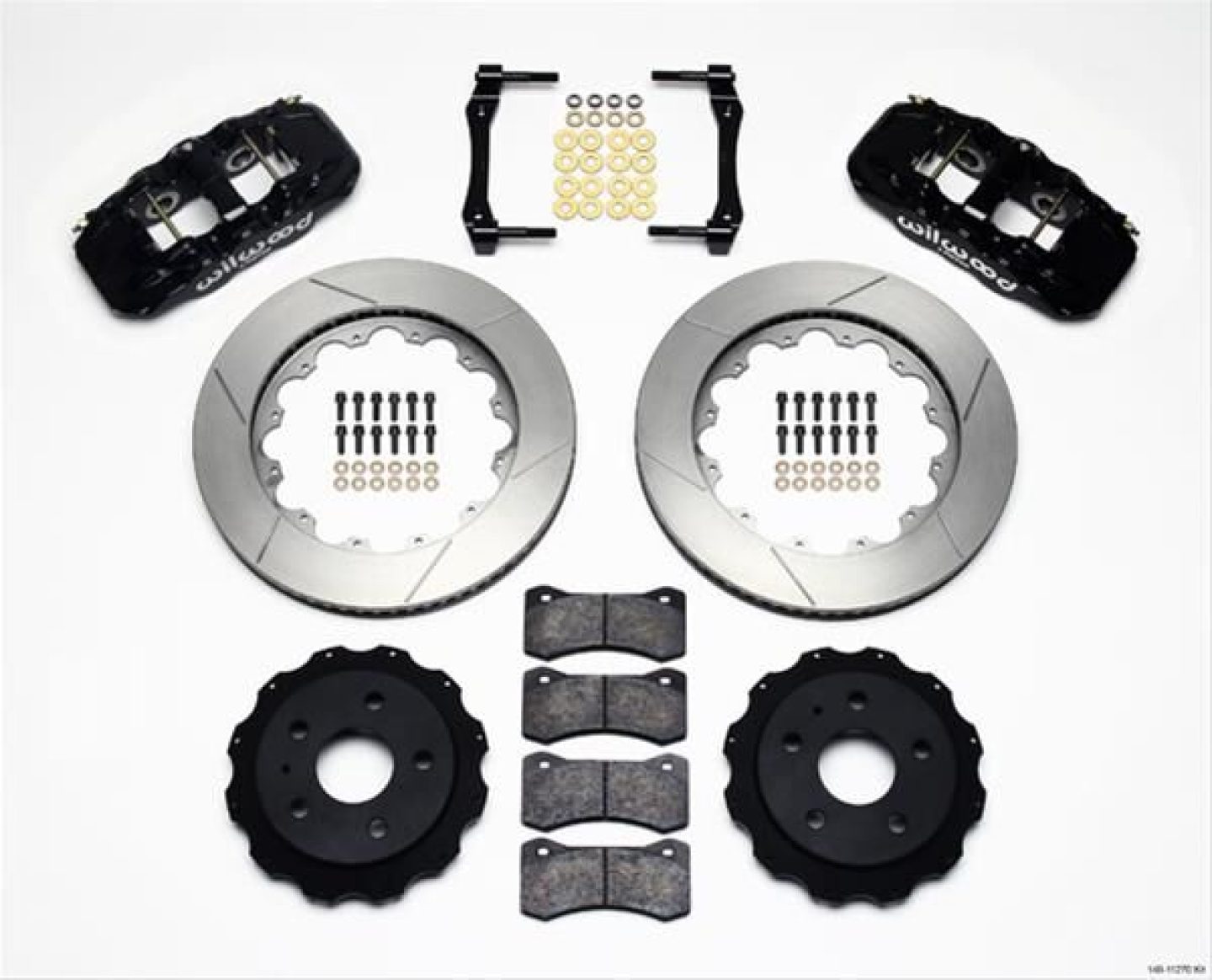

AERO4 Big Brake Rear Axle Kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the W4AR calipers, BP-10 compound pads, and oversized 14.00" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.
Maximize your braking power with AERO4 radial rear disc kits from Wilwood! They provide the ultimate Big Brake solution for muscle car rear axles that require a parking brake. The 4-piston calipers, 2-piece rotors, and high performance BP-10 compound pads deliver both optimized and balanced braking to complement front big brake upgrades on all types of custom, show, and high performance street machines. Plus, the neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs are offered to further personalize style and performance for every application. Order the Wilwood AERO4 Big Brake rear brake kit designed for fitment with your axle and wheel bolt pattern.
UPC | 889545012422 |
Brand | Wilwood Disc Brakes |
Notes | OE. with Brembo Brakes. |
Position | Rear |
Quantity | Sold as a kit. |
Part Type | Disc Brake Kits |
Product Line | Wilwood AERO4 Big Brake Rear Brake Kits |
Rear Rotor Style | Slotted surface |
Rear Caliper Color | Black |
Parking Brake Style | Internal drum |
Rear Rotor Diameter | 14.25 in./361.95mm |
Rear Rotor Included | Yes |
Brake Hoses Included | No |
Front Rotor Included | No |
Rear Caliper Included | Yes |
Rear Caliper Material | Forged billet aluminum |
Brake Booster Included | No |
Front Caliper Included | No |
Front Spindles Included | No |
Parking Brake Provision | Yes |
Rear Rotor Construction | Vented |
Master Cylinder Included | No |
Manufacturer's Part Number | 140-11270 |
Rear Rotor Thickness (in.) | 1.10 |
Rear Caliper Piston Quantity | Four |
Brake Rotor Bolt Pattern (mm) | 5 x 120.00mm |
Minimum Recommended Wheel Diameter (in.) | 18 in. |
Compatibility & Application Information | |
---|---|
Make | CADILLAC |
Model | CTS |
Submodel | BASE |
Beginning Year | 2008 |
Ending Year | 2009 |
Engine Type | V6 |
Engine Size | 3.6L/217 |
Engine Family | GM V6 |
Liter | 3.6 |
CID | 217 |
CC | 3564 |
Drivetrain | AWD |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc |
Engine VIN Code | 7 |
Make | CADILLAC |
Model | CTS |
Submodel | BASE |
Beginning Year | 2008 |
Ending Year | 2009 |
Engine Type | V6 |
Engine Size | 3.6L/217 |
Engine Family | GM V6 |
Liter | 3.6 |
CID | 217 |
CC | 3564 |
Drivetrain | AWD |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc |
Engine VIN Code | V |
Make | CADILLAC |
Model | CTS |
Submodel | BASE |
Beginning Year | 2008 |
Ending Year | 2009 |
Engine Type | V6 |
Engine Size | 3.6L/217 |
Engine Family | GM V6 |
Liter | 3.6 |
CID | 217 |
CC | 3564 |
Drivetrain | RWD |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc |
Engine VIN Code | 7 |
Make | CADILLAC |
Model | CTS |
Submodel | BASE |
Beginning Year | 2008 |
Ending Year | 2009 |
Engine Type | V6 |
Engine Size | 3.6L/217 |
Engine Family | GM V6 |
Wilwood AERO4 Rear Kit 14.25in 2010-2015 Camaro | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2010 | Chevrolet | Camaro | LT | US |
2010 | Chevrolet | Camaro | LS | US |
2010 | Chevrolet | Camaro | SS | US |
2011 | Chevrolet | Camaro | SS | US |
2011 | Chevrolet | Camaro | LS | US |
2011 | Chevrolet | Camaro | LT | US |
2012 | Chevrolet | Camaro | SS | US |
2012 | Chevrolet | Camaro | LS | US |
2012 | Chevrolet | Camaro | ZL1 | US |
2012 | Chevrolet | Camaro | LT | US |
2013 | Chevrolet | Camaro | LS | US |
2013 | Chevrolet | Camaro | LT | US |
2013 | Chevrolet | Camaro | SS | US |
2013 | Chevrolet | Camaro | ZL1 | US |
2014 | Chevrolet | Camaro | LT | US |
2014 | Chevrolet | Camaro | LS | US |
2014 | Chevrolet | Camaro | Z/28 | US |
2014 | Chevrolet | Camaro | SS | US |
2014 | Chevrolet | Camaro | ZL1 | US |
2015 | Chevrolet | Camaro | LS | US |
2015 | Chevrolet | Camaro | LT | US |
2015 | Chevrolet | Camaro | ZL1 | US |
2015 | Chevrolet | Camaro | SS | US |
2015 | Chevrolet | Camaro | Z/28 | US |
2016 | Chevrolet | Camaro | SS | US |
2017 | Chevrolet | Camaro | SS | US |
