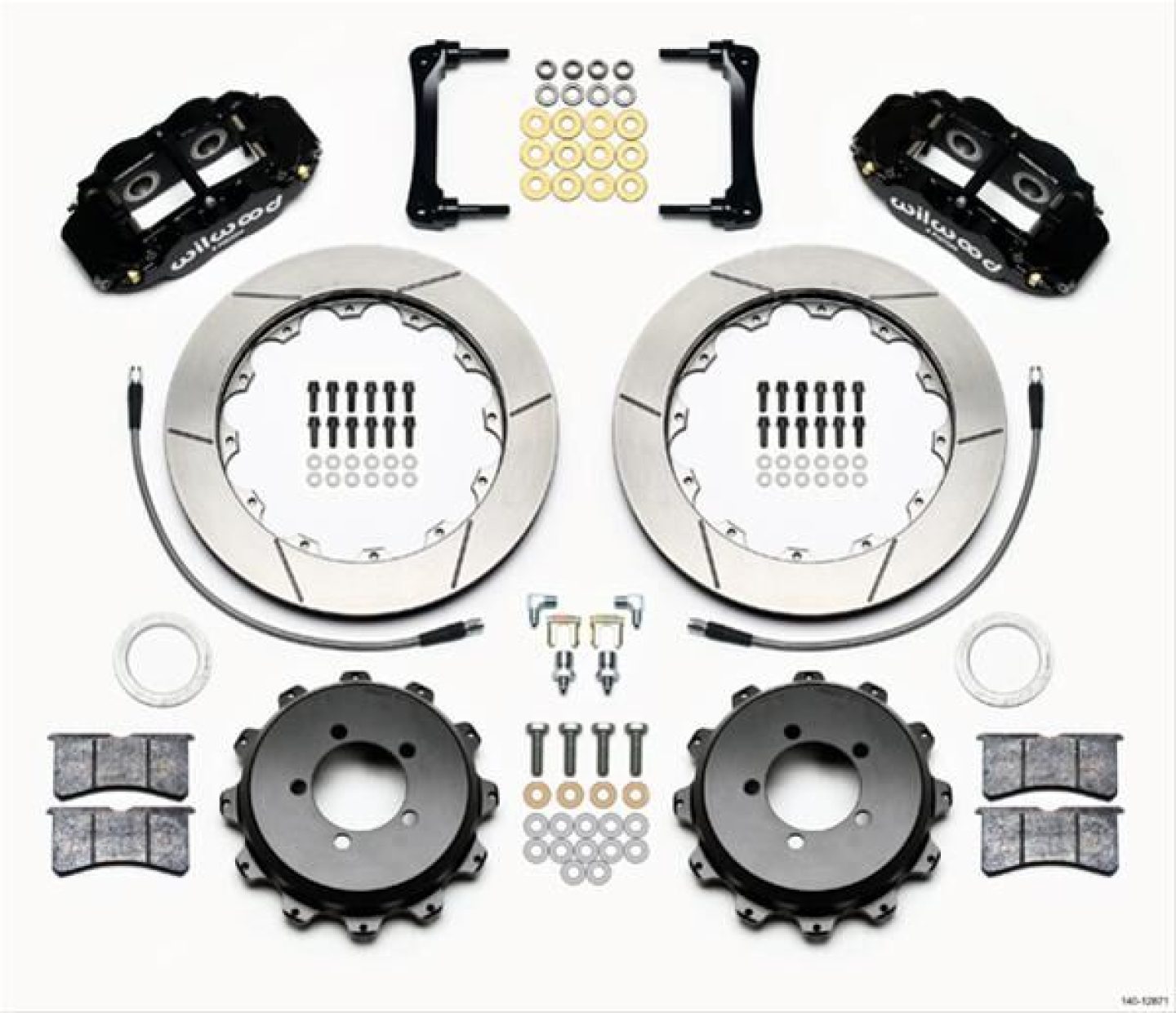

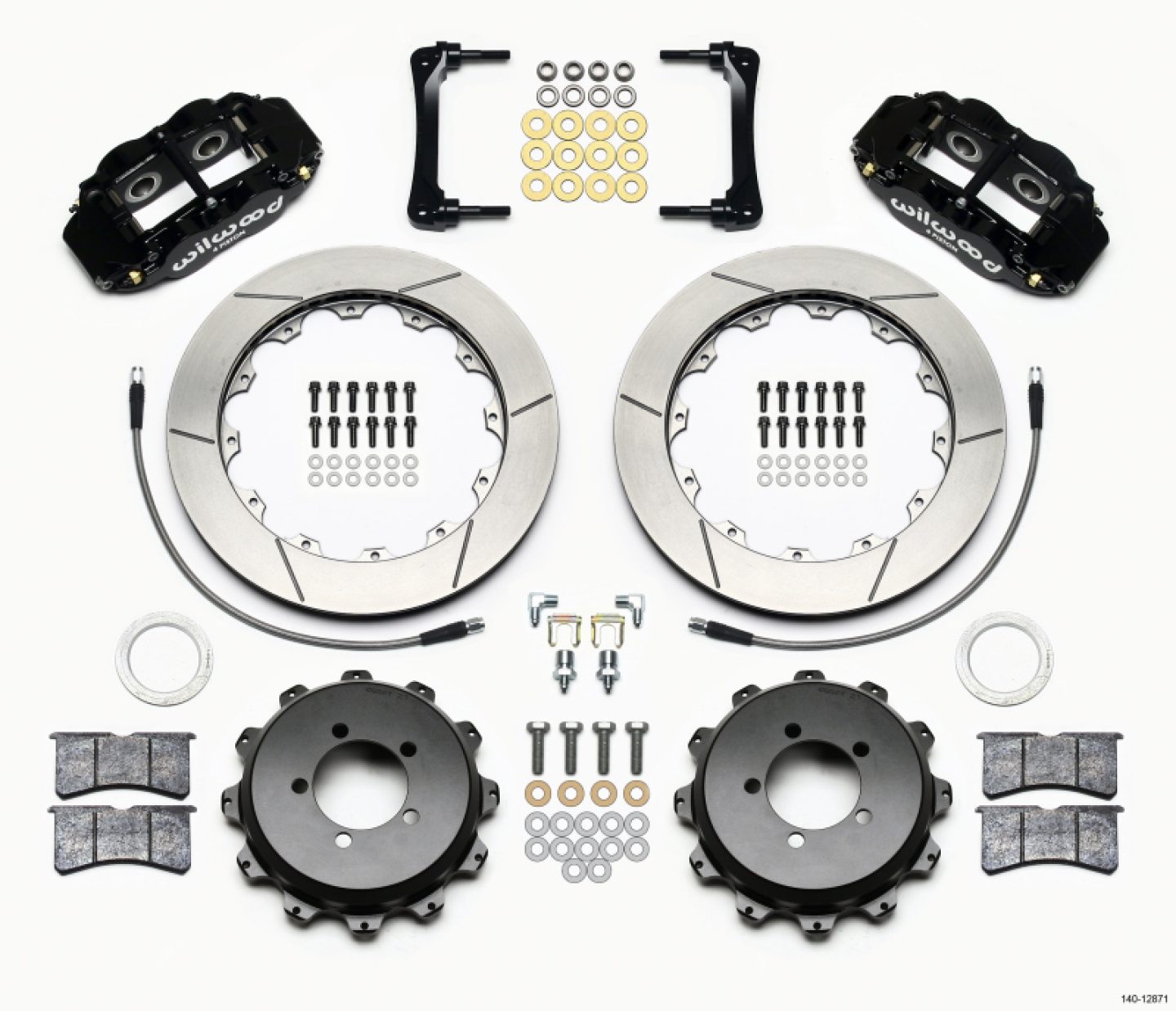

Forged Narrow Superlite 4R four piston calipers are combined with BP-10 compound pads and 12.88” rotors in this group of big brake kits for custom high performance Import Cars. This group of specialized kits retain full use of the OE parking brake, master cylinder output, and ABS where used. FNSL4R rear kits provide complimentary style and performance with 12.88” and larger front brake upgrades in conjunction with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs enable the builder to match style and performance on all applications.
Wilwood Forged Narrow Superlite 4R Big Brake rear brake kits are the engineered match for the AERO6R/ST front race kits on vehicles intended for unrestricted road race competition. All emphasis is on matched front to rear balance, high durability, and high-efficiency heat management, without adding unnecessary rotating or unsprung weight to the driveline and rear suspension. Wilwood Forged Narrow Superlite 4R Big Brake rear brake kits are championship-proven systems.
Features and benefits:
UPC | 889545017694 |
Brand | Wilwood Disc Brakes |
Notes | Uses factory parking brake assembly. |
Position | Rear |
Quantity | Sold as a kit. |
Part Type | Disc Brake Kits |
Offset (in.) | 0.000 in. |
Product Line | Wilwood Forged Narrow Superlite 4R Big Brake Rear Brake Kits |
Rear Rotor Style | Slotted surface |
Rear Caliper Color | Black |
Parking Brake Style | Internal drum |
Rear Rotor Diameter | 12.88 in./327.15mm |
Rear Rotor Included | Yes |
Brake Hoses Included | Yes |
Front Rotor Included | No |
Rear Caliper Included | Yes |
Rear Caliper Material | Forged billet aluminum |
Brake Booster Included | No |
Front Caliper Included | No |
Front Spindles Included | No |
Parking Brake Provision | Yes |
Rear Rotor Construction | Vented |
Master Cylinder Included | No |
Manufacturer's Part Number | 140-12871 |
Rear Rotor Thickness (in.) | 1.13 |
Rear Caliper Piston Quantity | Four |
Brake Rotor Bolt Pattern (mm) | 5 x 100.00mm |
Minimum Recommended Wheel Diameter (in.) | 17 in. |
Compatibility & Application Information | |
---|---|
Make | SCION |
Model | FR-S |
Submodel | BASE |
Beginning Year | 2013 |
Ending Year | 2016 |
Engine Type | H4 |
Engine Size | 2.0L/1998cc |
Engine Family | Subaru 4-cylinder |
Liter | 2.0 |
CID | 122 |
CC | 1998 |
Drivetrain | RWD |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc. KIT,REAR,2012 SCION FRS,FNSL4R,12.88x.81 ROTOR,REAR MT,W/LINES; RTR:12.88-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, BLACK POWDER COAT |
Make | SUBARU |
Model | BRZ |
Submodel | LIMITED |
Beginning Year | 2013 |
Ending Year | 2017 |
Engine Type | H4 |
Engine Size | 2.0L/1998cc |
Engine Family | Subaru 4-cylinder |
Liter | 2.0 |
CID | 122 |
CC | 1998 |
Drivetrain | RWD |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc. KIT,REAR,2012 SCION FRS,FNSL4R,12.88x.81 ROTOR,REAR MT,W/LINES; RTR:12.88-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, BLACK POWDER COAT |
Engine VIN Code | A |
Make | SUBARU |
Model | BRZ |
Submodel | PREMIUM |
Beginning Year | 2013 |
Ending Year | 2017 |
Engine Type | H4 |
Engine Size | 2.0L/1998cc |
Engine Family | Subaru 4-cylinder |
Liter | 2.0 |
CID | 122 |
CC | 1998 |
Drivetrain | RWD |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc. KIT,REAR,2012 SCION FRS,FNSL4R,12.88x.81 ROTOR,REAR MT,W/LINES; RTR:12.88-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, BLACK POWDER COAT |
Engine VIN Code | A |
Make | SUBARU |
Model | BRZ |
Submodel | SERIES.BLUE |
Beginning Year | 2015 |
Ending Year | 2015 |
Engine Type | H4 |
Engine Size | 2.0L/1998cc |
Engine Family | Subaru 4-cylinder |
Liter | 2.0 |
Wilwood Narrow Superlite 4R Rear Kit 12.88in 2012-Up Toyota / Scion FRS w/Lines | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2013 | Scion | FR-S | Base | US |
2013 | Subaru | BRZ | Limited | US |
2013 | Subaru | BRZ | Premium | US |
2014 | Subaru | BRZ | Premium | US |
2014 | Subaru | BRZ | Limited | US |
2014 | Scion | FR-S | Base | US |
2015 | Subaru | BRZ | Limited | US |
2015 | Subaru | BRZ | Premium | US |
2015 | Subaru | BRZ | Series.Blue | US |
2015 | Scion | FR-S | Base | US |
2016 | Subaru | BRZ | Limited | US |
2016 | Subaru | BRZ | Premium | US |
2016 | Subaru | BRZ | Series.HyperBlue | US |
2016 | Scion | FR-S | Base | US |
2017 | Subaru | BRZ | Limited | US |
2017 | Subaru | BRZ | Premium | US |
Forged Narrow Superlite 4R four piston calipers are combined with BP-10 compound pads and 12.88” rotors in this group of big brake kits for custom high performance Import Cars. This group of specialized kits retain full use of the OE parking brake, master cylinder output, and ABS where used. FNSL4R rear kits provide complimentary style and performance with 12.88” and larger front brake upgrades in conjunction with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs enable the builder to match style and performance on all applications.
Wilwood Forged Narrow Superlite 4R Big Brake rear brake kits are the engineered match for the AERO6R/ST front race kits on vehicles intended for unrestricted road race competition. All emphasis is on matched front to rear balance, high durability, and high-efficiency heat management, without adding unnecessary rotating or unsprung weight to the driveline and rear suspension. Wilwood Forged Narrow Superlite 4R Big Brake rear brake kits are championship-proven systems.
Features and benefits:
UPC | 889545017694 |
Brand | Wilwood Disc Brakes |
Notes | Uses factory parking brake assembly. |
Position | Rear |
Quantity | Sold as a kit. |
Part Type | Disc Brake Kits |
Offset (in.) | 0.000 in. |
Product Line | Wilwood Forged Narrow Superlite 4R Big Brake Rear Brake Kits |
Rear Rotor Style | Slotted surface |
Rear Caliper Color | Black |
Parking Brake Style | Internal drum |
Rear Rotor Diameter | 12.88 in./327.15mm |
Rear Rotor Included | Yes |
Brake Hoses Included | Yes |
Front Rotor Included | No |
Rear Caliper Included | Yes |
Rear Caliper Material | Forged billet aluminum |
Brake Booster Included | No |
Front Caliper Included | No |
Front Spindles Included | No |
Parking Brake Provision | Yes |
Rear Rotor Construction | Vented |
Master Cylinder Included | No |
Manufacturer's Part Number | 140-12871 |
Rear Rotor Thickness (in.) | 1.13 |
Rear Caliper Piston Quantity | Four |
Brake Rotor Bolt Pattern (mm) | 5 x 100.00mm |
Minimum Recommended Wheel Diameter (in.) | 17 in. |
Compatibility & Application Information | |
---|---|
Make | SCION |
Model | FR-S |
Submodel | BASE |
Beginning Year | 2013 |
Ending Year | 2016 |
Engine Type | H4 |
Engine Size | 2.0L/1998cc |
Engine Family | Subaru 4-cylinder |
Liter | 2.0 |
CID | 122 |
CC | 1998 |
Drivetrain | RWD |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc. KIT,REAR,2012 SCION FRS,FNSL4R,12.88x.81 ROTOR,REAR MT,W/LINES; RTR:12.88-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, BLACK POWDER COAT |
Make | SUBARU |
Model | BRZ |
Submodel | LIMITED |
Beginning Year | 2013 |
Ending Year | 2017 |
Engine Type | H4 |
Engine Size | 2.0L/1998cc |
Engine Family | Subaru 4-cylinder |
Liter | 2.0 |
CID | 122 |
CC | 1998 |
Drivetrain | RWD |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc. KIT,REAR,2012 SCION FRS,FNSL4R,12.88x.81 ROTOR,REAR MT,W/LINES; RTR:12.88-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, BLACK POWDER COAT |
Engine VIN Code | A |
Make | SUBARU |
Model | BRZ |
Submodel | PREMIUM |
Beginning Year | 2013 |
Ending Year | 2017 |
Engine Type | H4 |
Engine Size | 2.0L/1998cc |
Engine Family | Subaru 4-cylinder |
Liter | 2.0 |
CID | 122 |
CC | 1998 |
Drivetrain | RWD |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc. KIT,REAR,2012 SCION FRS,FNSL4R,12.88x.81 ROTOR,REAR MT,W/LINES; RTR:12.88-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:FORGED NARROW SUPERLITE 4R, 4-PISTON, BLACK POWDER COAT |
Engine VIN Code | A |
Make | SUBARU |
Model | BRZ |
Submodel | SERIES.BLUE |
Beginning Year | 2015 |
Ending Year | 2015 |
Engine Type | H4 |
Engine Size | 2.0L/1998cc |
Engine Family | Subaru 4-cylinder |
Liter | 2.0 |
Wilwood Narrow Superlite 4R Rear Kit 12.88in 2012-Up Toyota / Scion FRS w/Lines | ||||
---|---|---|---|---|
Year | Make | Model | Submodel | Region |
2013 | Scion | FR-S | Base | US |
2013 | Subaru | BRZ | Limited | US |
2013 | Subaru | BRZ | Premium | US |
2014 | Subaru | BRZ | Premium | US |
2014 | Subaru | BRZ | Limited | US |
2014 | Scion | FR-S | Base | US |
2015 | Subaru | BRZ | Limited | US |
2015 | Subaru | BRZ | Premium | US |
2015 | Subaru | BRZ | Series.Blue | US |
2015 | Scion | FR-S | Base | US |
2016 | Subaru | BRZ | Limited | US |
2016 | Subaru | BRZ | Premium | US |
2016 | Subaru | BRZ | Series.HyperBlue | US |
2016 | Scion | FR-S | Base | US |
2017 | Subaru | BRZ | Limited | US |
2017 | Subaru | BRZ | Premium | US |
