BRAKE KIT
The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13”-14” big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

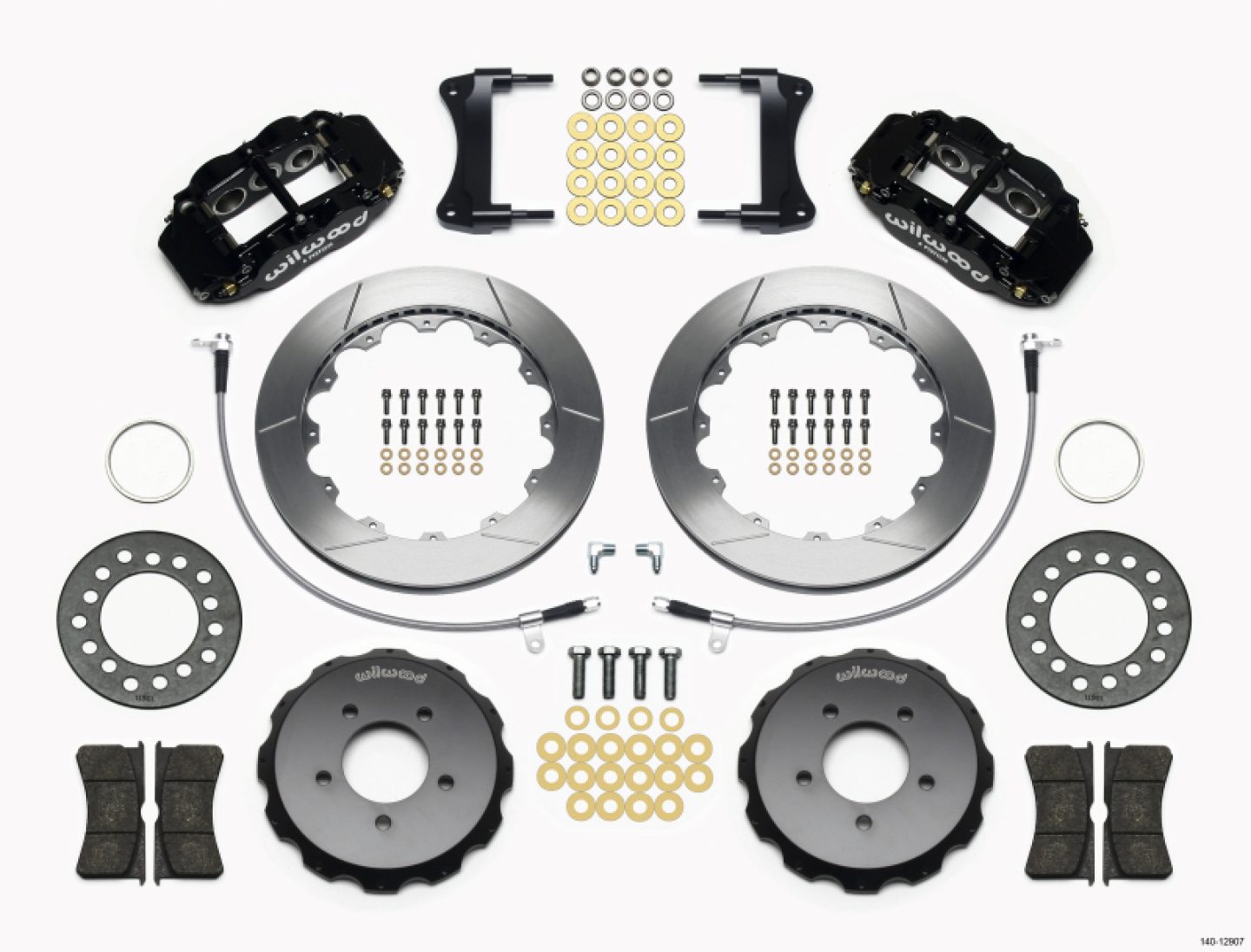

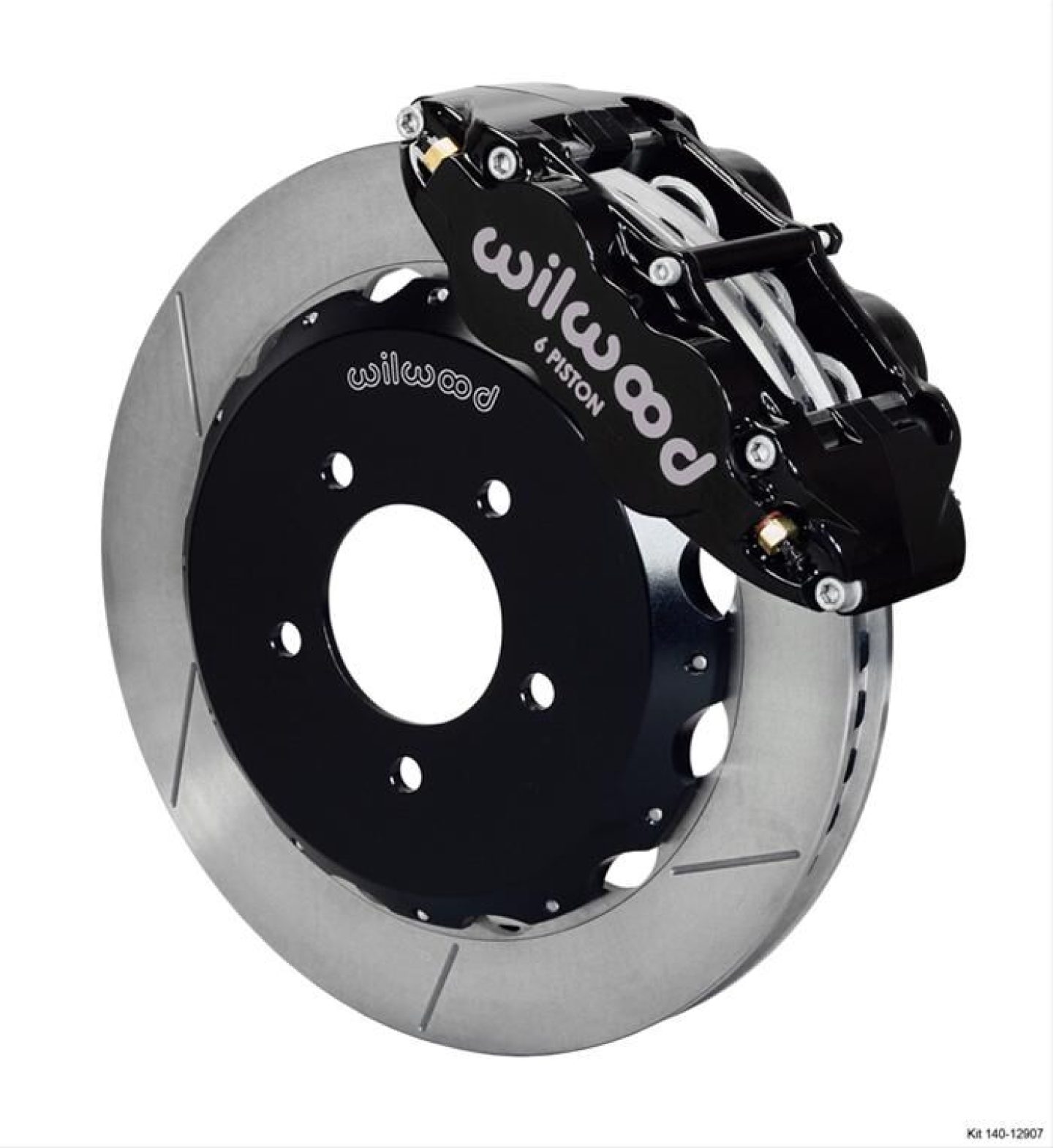

Disc Brake Kit, Superlite 6R Big Brake, Front, 12.88 in. Slotted Rotor, 6-Piston Black Powdercoated Caliper, Subaru, Kit
Wilwood forged narrow Superlite 6R Big Brake front brake kits upgrade your late model ride with increased brake capacity and complimentary style. They're application-specific for a simpler installation and offer full compatibility with OE master cylinder output and ABS functions, where used. These front brake kits feature the extremely durable and efficient body design of their forged narrow 6-piston radial mount calipers. You can choose from optional caliper finishes and rotor designs to meet your personal style and braking requirements. Don't just replace—upgrade to generate big stopping power with Wilwood forged narrow Superlite 6R Big Brake front brake kits.
UPC | 889545018004 |
Brand | Wilwood Disc Brakes |
Notes | Use with factory spindle. |
Position | Front |
Quantity | Sold as a kit. |
Part Type | Disc Brake Kits |
Product Line | Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kits |
Front Rotor Style | Slotted surface |
Front Caliper Color | Black |
Rear Rotor Included | No |
Brake Hoses Included | Yes |
Front Rotor Diameter | 12.88 in./327.20mm |
Front Rotor Included | Yes |
Rear Caliper Included | No |
Brake Booster Included | No |
Front Caliper Included | Yes |
Front Caliper Material | Forged billet aluminum |
Front Spindles Included | No |
Parking Brake Provision | No |
Front Rotor Construction | Vented |
Master Cylinder Included | No |
Manufacturer's Part Number | 140-12907 |
Front Rotor Thickness (in.) | 1.10 in. |
Brake Rotor Bolt Pattern (mm) | 5 x 114.30mm |
Front Caliper Piston Quantity | Six |
Brake Rotor Bolt Pattern (in.) | 5 x 4.50 in. |
Minimum Recommended Wheel Diameter (in.) | 17 in. |
Wilwood Narrow Superlite 6R Front Hat Kit 12.88in 2005-Up Mazda Miata w/ Lines | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
2006-2015 | Mazda | MX-5 Miata | Base, Club Spec, Grand Touring, Sport, Touring, SV, Special Edition, Club, 25th Anniversary Edition | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Make | MAZDA |
Model | MX-5 MIATA |
Submodel | 25TH ANNIVERSARY EDITION |
Beginning Year | 2015 |
Ending Year | 2015 |
Engine Type | L4 |
Engine Size | 2.0L/2000cc |
Engine Family | Mazda 4-cylinder |
Liter | 2.0 |
CID | 122 |
CC | 2000 |
Drivetrain | RWD |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc. KIT,FRONT,MAZDA,MIATA,06-15,FNSL6R 12.88x1.10,REAR MT,GT,W/LINES; RTR:12.88-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT |
Engine VIN Code | F |
Make | MAZDA |
Model | MX-5 MIATA |
Submodel | BASE |
Beginning Year | 2006 |
Ending Year | 2006 |
Engine Type | L4 |
Engine Size | 2.0L/2000cc |
Engine Family | Mazda 4-cylinder |
Liter | 2.0 |
CID | 122 |
CC | 2000 |
Drivetrain | RWD |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc. KIT,FRONT,MAZDA,MIATA,06-15,FNSL6R 12.88x1.10,REAR MT,GT,W/LINES; RTR:12.88-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT |
Make | MAZDA |
Model | MX-5 MIATA |
Submodel | CLUB |
Beginning Year | 2013 |
Ending Year | 2015 |
Engine Type | L4 |
Engine Size | 2.0L/2000cc |
Engine Family | Mazda 4-cylinder |
Liter | 2.0 |
CID | 122 |
CC | 2000 |
Drivetrain | RWD |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc. KIT,FRONT,MAZDA,MIATA,06-15,FNSL6R 12.88x1.10,REAR MT,GT,W/LINES; RTR:12.88-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT |
Engine VIN Code | F |
