M/C,TANDEM KIT

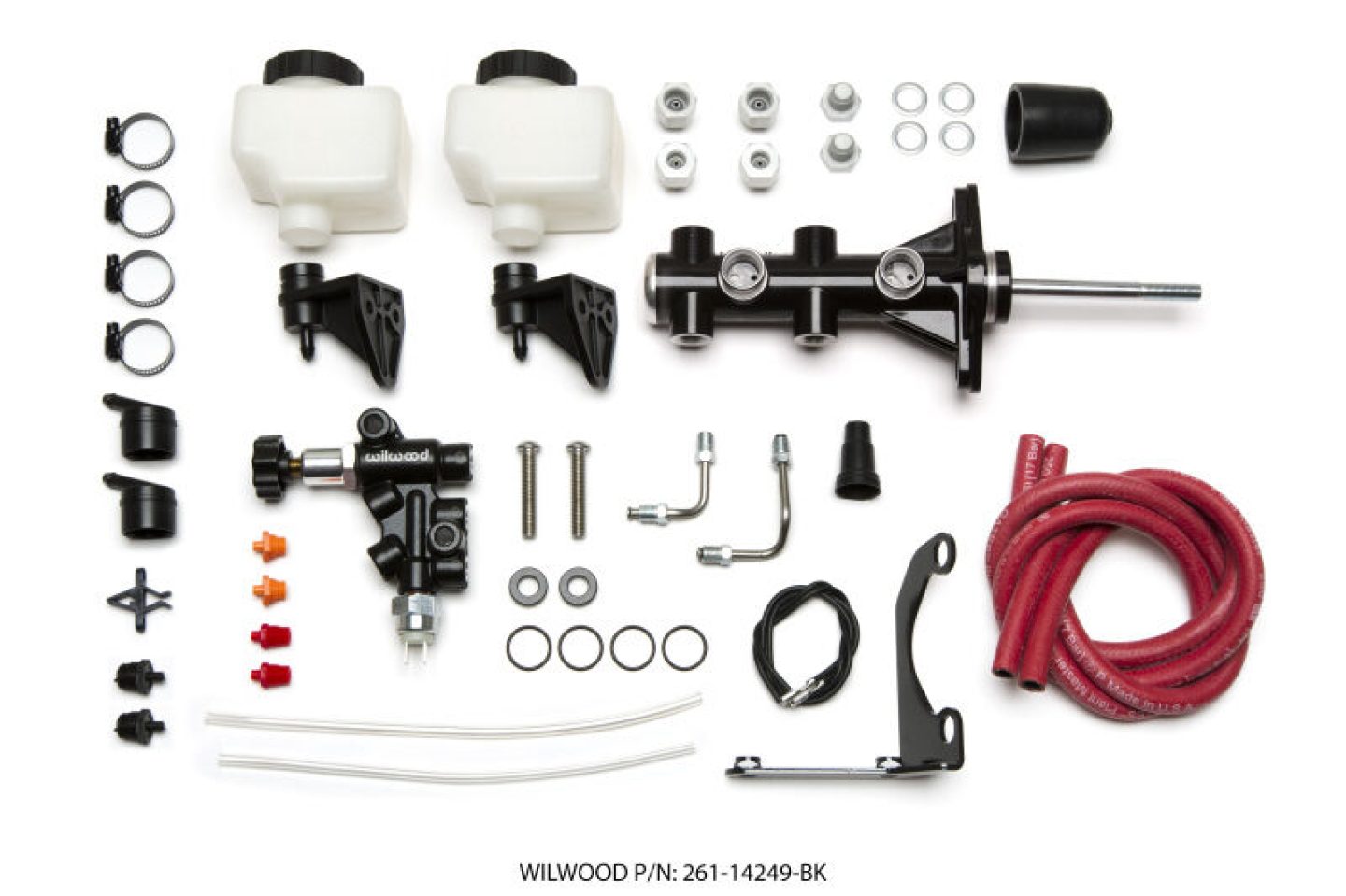

Wilwood has packaged the new Remote Tandem Chamber Master Cylinder with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware in a kit. Wilwood's Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control. The slotted flange mounting and two finishes: ball burnished or black E-coat. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with pre-installed plated steel tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

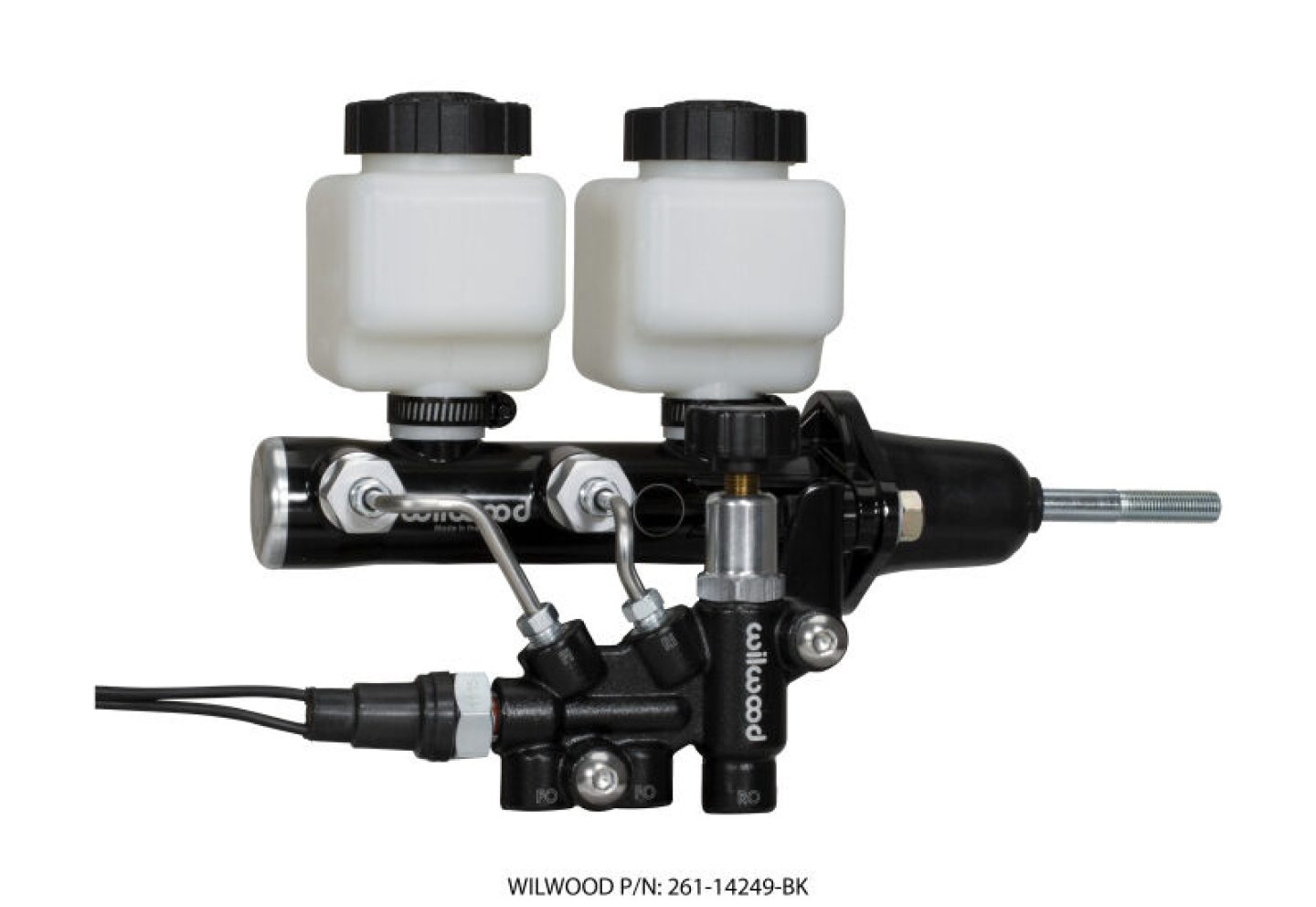

Master Cylinder, Aluminum, Black, 7/8 in. Bore, Universal, Kit
Wilwood combination remote tandem master cylinders provide one of the safest ways to actuate 4-wheel or dual-caliper axle brake systems. These versatile, lightweight, and easily adapted master cylinders provide single-pushrod activation of two separate brake fluid circuits. By completely isolating the fluid reservoirs and circuits, the front and rear brakes are able to operate independently of each other and provide a safety net, should any one side of the system become inoperable. They're a great match for Wilwood's bolt-on disc brake kits, systems configured from OE components, and a variety of industrial applications.
UPC | 889545078206 |
Brand | Wilwood Disc Brakes |
Notes | Pushrod is 3.690 in. long with 3/8-24 threads. Includes Wilwood adjustable combination proportioning valve. |
Quantity | Sold as a kit. |
Part Type | Master Cylinders |
Bowl Design | Dual |
Product Line | Wilwood Combination Remote Tandem Master Cylinders |
Remanufactured | No |
Pushrod Included | Yes |
Remote Reservoir | Yes |
Reservoir Finish | White |
Hardware Included | Yes |
Reservoir Included | Yes |
Reservoir Material | Plastic |
Master Cylinder Usage | Brake |
Master Cylinder Finish | Black |
Master Cylinder Stroke | 1.120 in. |
Mounting Hole Quantity | 2 holes |
Power Brake Compatible | No |
Master Cylinder Material | Aluminum |
Master Cylinder Bore Size | 0.875 in. |
Manufacturer's Part Number | 261-14249-BK |
Mounting Brackets Included | Yes |
Master Cylinder Cap Included | Yes |
Mounting Flange Center to Center Distance (in.) | 3.200 in. |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Universal | Yes |
Front Brake Type (application) | Disc |
Rear Brake Type (application) | Disc |
Universal | Yes |
Front Brake Type (application) | Disc |
Rear Brake Type (application) | Drum |
Universal | Yes |
Front Brake Type (application) | Drum |
Rear Brake Type (application) | Drum |
