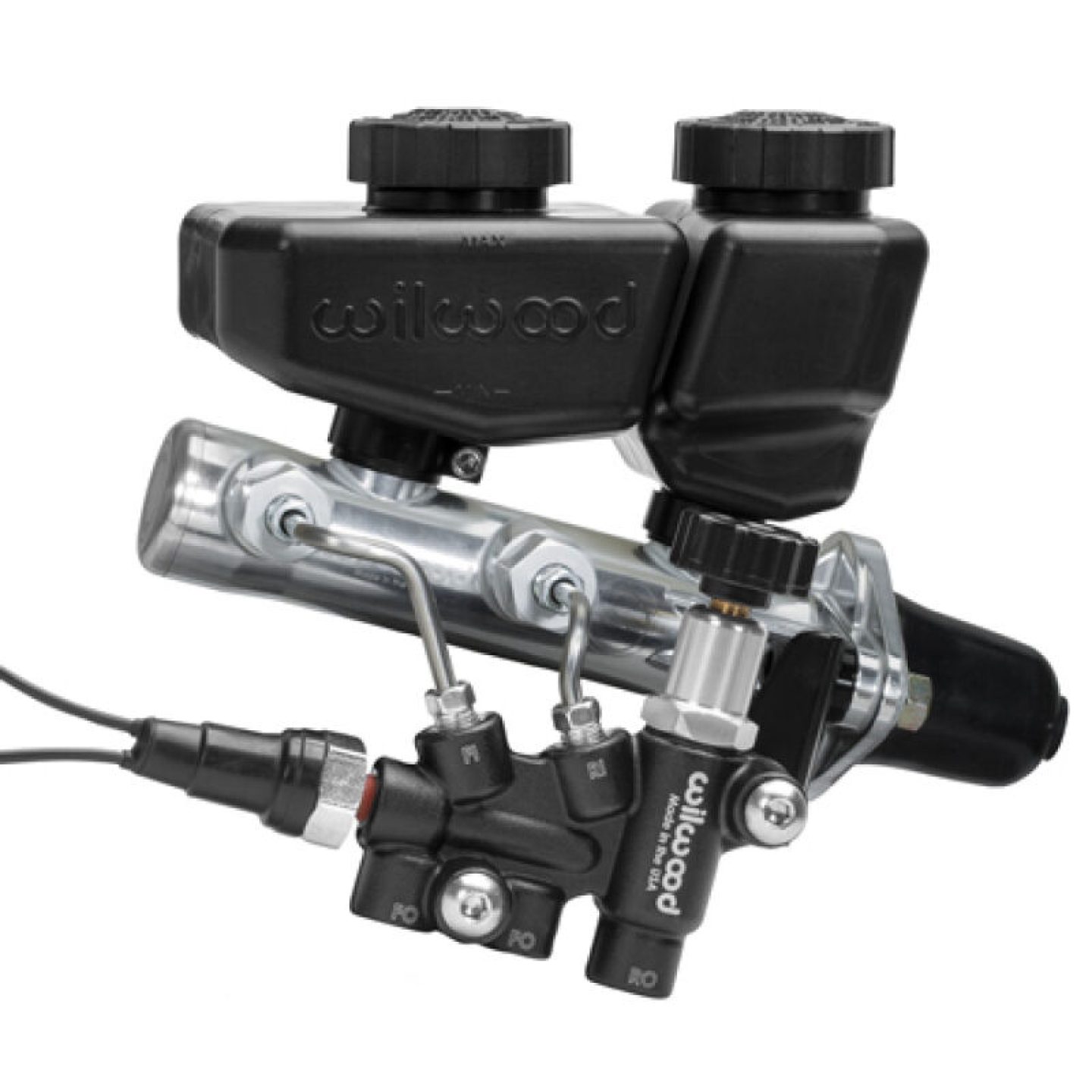

Wilwood Remote Tandem M/C Kit w/Brkt and Valve - 1in Bore Black
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Master Cylinder, Angled Reservoirs, Aluminum, Black, 1.00 in. Bore, with Proportioning Valve, Fluid Tubes, Kit
Wilwood remote tandem master cylinder kits with GM-style angled reservoirs represent the latest in refinements in brake pressure actuation and fluid control. The durable nylon reservoirs are designed so that the top is level when mounted at the 15 degree angle typical of GM power brake applications. Wilwood kits package master cylinder with GM-style angled reservoirs, combination proportioning valve, mounting bracket, fluid tubes, and mounting hardware. Features include: * High-pressure diecast aluminum cylinder is available ball burnished or with a black E-coat, and slotted mounting flanges for 3.22 in. to 3.40 in. on center studs * Combination proportioning valve substantially simplifies wiring and brake proportioning incorporating a hydraulic brake light switch, adjustable prop valve, and Y-junction block, and finished in black E-coat for durability and a performance look * Precision-bent stainless steel fluid tubes with pre-installed plated steel tube nuts for a simple bolt-on installation * Rear brake circuit reservoir, closest to the booster, holds 4.7 oz., while front brake reservoir holds 7.8 oz., both made of black plastic with black screw caps
Brand | Wilwood Disc Brakes |
Quantity | Sold as a kit. |
Part Type | Master Cylinders |
Bowl Design | Dual |
Product Line | Wilwood Remote Tandem Master Cylinder Kits with GM-Style Angled Reservoirs |
Outlet Size 1 | 1/2 in.-20 |
Outlet Size 2 | 1/2 in.-20 |
Remanufactured | No |
Outlet Quantity | 2 |
Pushrod Included | No |
Remote Reservoir | No |
Reservoir Finish | Black |
Hardware Included | Yes |
Reservoir Included | Yes |
Reservoir Material | Plastic |
Master Cylinder Usage | Brake |
Master Cylinder Finish | Black |
Master Cylinder Stroke | 1.120 in. |
Mounting Hole Quantity | 2 holes |
Power Brake Compatible | Yes |
Master Cylinder Material | Aluminum |
Master Cylinder Bore Size | 1.000 in. |
Manufacturer's Part Number | 261-16962-BK |
Mounting Brackets Included | Yes |
Master Cylinder Cap Included | Yes |
Mounting Flange Center to Center Distance (in.) | 3.220-3.400 in. |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Universal | Yes |
Front Brake Type (application) | Disc |
Rear Brake Type (application) | Disc |
Universal | Yes |
Front Brake Type (application) | Disc |
Rear Brake Type (application) | Drum |
Universal | Yes |
Front Brake Type (application) | Drum |
Rear Brake Type (application) | Drum |
