SPINDLE KIT
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

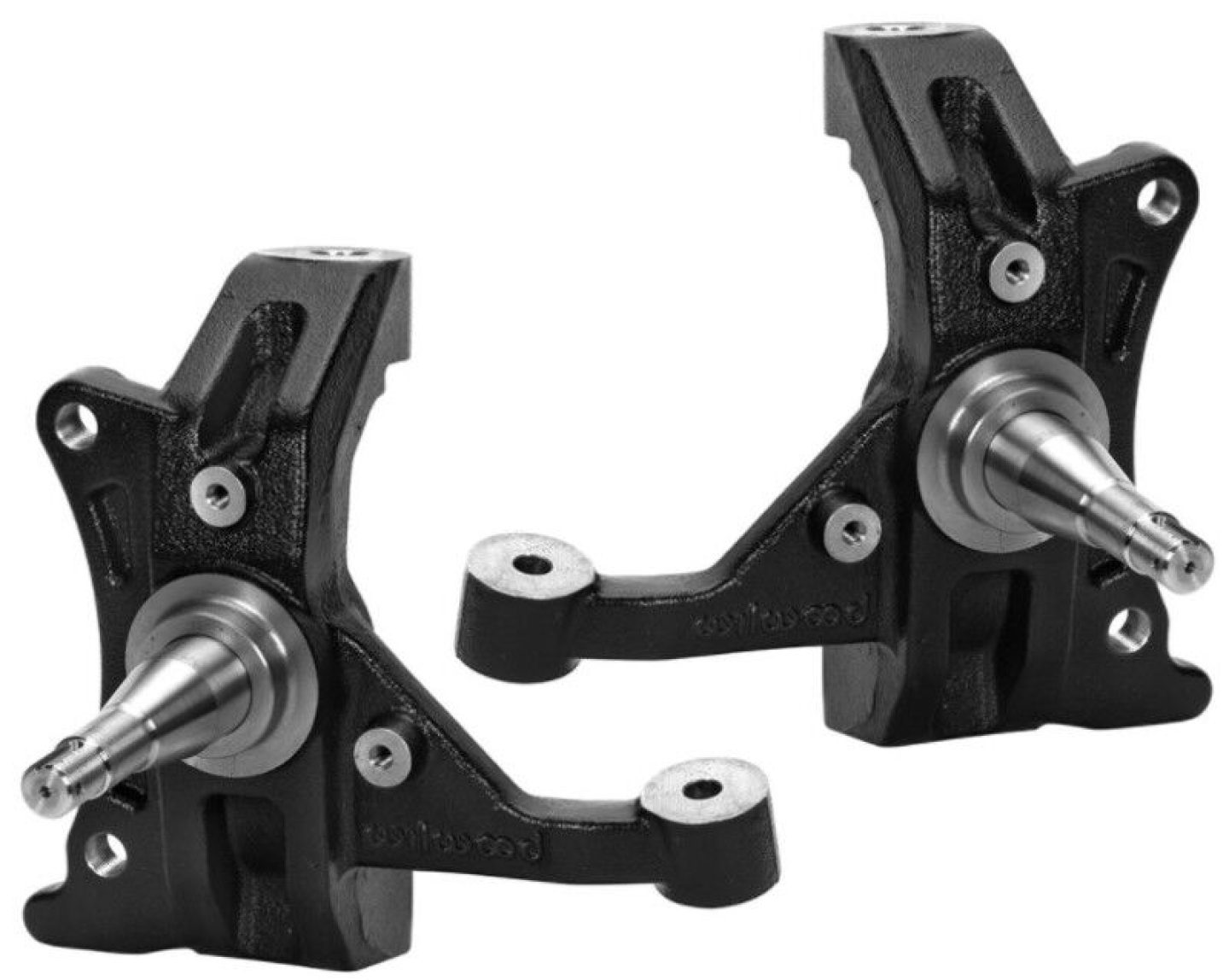

Spindles, ProSpindle, Steel, Black E-Coated, Chevy, GMC, 2 in. Drop, Pair
Wilwood ProSpindles are designed for custom and competition applications. They give you increased strength, minimized weight, improved handling, and increased braking capacity on component cars, street rods, drag cars, etc. ProSpindles feature a one-piece forged steel body that is lightweight, yet nearly three times stronger than cast steel original equipment or aftermarket pressed pin replacement spindles. A 1/2 in. taller upper spindle body improves the front suspension geometry with a higher front roll center and decreased body roll with no changes to the lower control arm, frame height, or steering linkages. Integral mounting bosses forged into the main body of the spindle provide substantially increased anchoring security for lug or radial mount calipers on rotors up to 14 inches. High strength forged steel steering arms are included and can be run front or rear steer or inverted if necessary to improve problematic steering characteristics such as bump steer with relocated or custom mounted steering linkages. Wilwood ProSpindles are available in your choice of stock ride height or 2 in. drop designs.
UPC | 889545093742 |
Brand | Wilwood Disc Brakes |
Quantity | Sold as a pair. |
Part Type | Spindles |
Ride Height | Lowered |
Product Line | Wilwood ProSpindles |
Amount of Drop | 2.00 in. |
Spindle Finish | Black e-coated |
Spindle Material | Steel |
Hardware Included | No |
Special Attention | Must be used with Wilwood Disc Brake Kits |
Manufacturer's Part Number | 831-15933 |
No specific fitment data available for this part. For clarification, please contact us.
Application Data | |
---|---|
Make | CHEVROLET |
Model | C1500 |
Submodel | 454 SS |
Beginning Year | 1990 |
Ending Year | 1990 |
Engine Type | V8 |
Engine Size | 7.4L/454 |
Engine Family | Chevy big block Mark IV |
Drivetrain | RWD |
Make | CHEVROLET |
Model | C1500 |
Submodel | 454 SS |
Beginning Year | 1991 |
Ending Year | 1993 |
Engine Type | V8 |
Engine Size | 7.4L/454 |
Engine Family | Chevy big block Gen V |
Drivetrain | RWD |
Make | CHEVROLET |
Model | C1500 |
Submodel | BASE |
Beginning Year | 1994 |
Ending Year | 1995 |
Engine Type | V6 |
Engine Size | 4.3L/262 |
Engine Family | GM V6 |
Drivetrain | RWD |
