BRAKE KIT
D8-4 rear calipers are a direct bolt-on replacements for the OE calipers on all 1965-82 Corvettes. Type III hard anodized forged billet aluminum bodies, stainless steel pistons, and high-temperature seals put an end to the rust, bore pitting and seal failures that plague the OE caliper design. D8-6 calipers provide low-maintenance performance, a huge weight savings, high temperature reliability, and the added benefit of six piston pad clamping power. D8-4 calipers mount in the stock location over stock rotors, use the original style D8 brake pads, and fit snugly inside most ’67 or newer production wheels. Some wheels, including the 1965-66 OE “JK” code steel wheels and a few aftermarket replica alloy wheels, will require a 3/16” or wider wheel spacer for clearance. Kits contain DOT compliant stainless braided brake lines and high friction Promatrix brake pads.
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

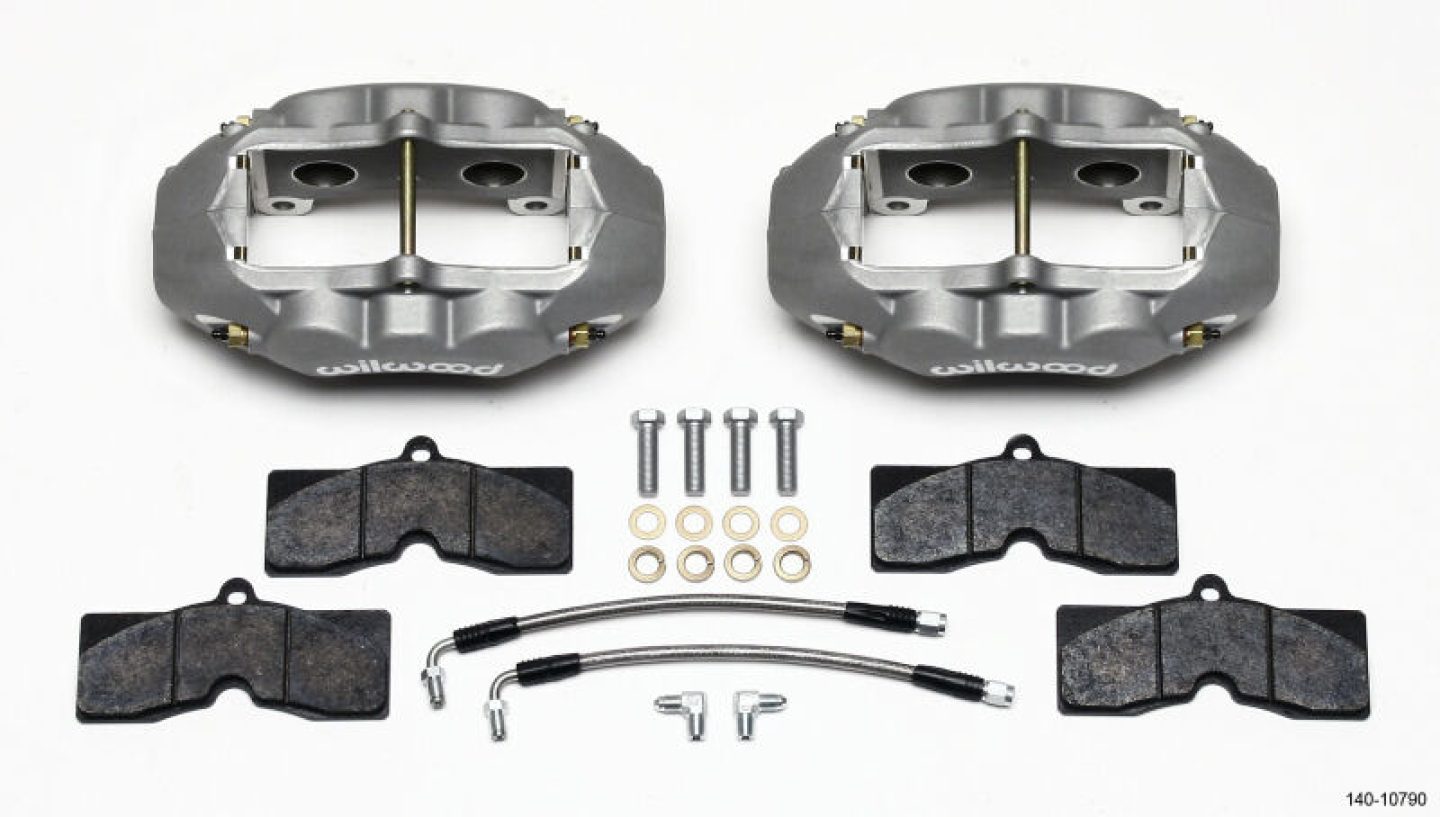

Brake Calipers, D8-4, Aluminum, Gray Anodized, 4-piston, Rear, Brake Pads, Brake Lines, Chevy, Kit
When you need replacement calipers for your C2 or C3 Corvette, try on a set of Wilwood D8-4 brake calipers. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failure. These calipers are direct bolt-on replacements for your factory original calipers mounting in the stock location over stock rotors using original-style brake pads. D8-4 calipers fit and install like stock--even the factory piston sizes were duplicated--but with Wilwood's in-house design and 3-D technology they offer lighter weight, unyielding strength and superior piston design to generate a positive pedal response with high clamping efficiency. The world of motion is yours--and your vette's-with the stopping power of Wilwood D8-4 front and rear brake calipers.
UPC | 889545010497 |
Brand | Wilwood Disc Brakes |
Quantity | Sold as a kit. |
Part Type | Brake Calipers |
Thread Size | 3/8 in.-24 |
Caliper Logo | Wilwood |
Product Line | Wilwood D8-4 Brake Calipers |
Caliper Color | Gray/Silver |
Caliper Series | D8-4 |
Remanufactured | No |
Caliper Material | Aluminum |
Brackets Included | No |
Fittings Included | Yes |
Brake Pad Material | Semi-metallic |
Brake Pads Included | Yes |
Fitting Attachment 1 | Female NPT |
Piston Diameter (in.) | 1.380 |
Caliper Piston Quantity | Four |
Parking Brake Provision | No |
Manufacturer's Part Number | 140-10790 |
Wilwood D8-4 Rear Caliper Kit Clear Corvette C2 / C3 65-82 | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
1970 | Chevrolet | Corvette | Base | US |
1975-1982 | Chevrolet | Corvette | Stingray, Base, Indianapolis 500 Pace Car, Silver Anniversary Edition, Collector's Edition | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Make | CHEVROLET |
Model | CORVETTE |
Submodel | BASE |
Beginning Year | 1970 |
Ending Year | 1970 |
Engine Type | V8 |
Liter | 5.7 |
CID | 350 |
Caliper Position | At Rear Axle |
Engine Family | Chevy small block Gen I |
Engine Size | 5.7L/350 |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc. KIT,REAR,VETTE,65-82,D8-4,CALIPERS,PAD LINE,ANO; RTR:-IN DIA, , N/A; CLPR:D8-4, 4-PISTON, TYPE III ANO |
Make | CHEVROLET |
Model | CORVETTE |
Submodel | BASE |
Beginning Year | 1970 |
Ending Year | 1970 |
Engine Type | V8 |
Liter | 7.4 |
CID | 454 |
Caliper Position | At Rear Axle |
CC | 7439 |
Engine Family | Chevy big block Mark IV |
Engine Size | 7.4L/454 |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc. KIT,REAR,VETTE,65-82,D8-4,CALIPERS,PAD LINE,ANO; RTR:-IN DIA, , N/A; CLPR:D8-4, 4-PISTON, TYPE III ANO |
Make | CHEVROLET |
Model | CORVETTE |
Submodel | BASE |
Beginning Year | 1970 |
Ending Year | 1970 |
Engine Type | V8 |
Liter | 7.4 |
CID | 454 |
Caliper Position | At Rear Axle |
CC | 7441 |
Engine Family | Chevy big block Mark IV |
Engine Size | 7.4L/454 |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc. KIT,REAR,VETTE,65-82,D8-4,CALIPERS,PAD LINE,ANO; RTR:-IN DIA, , N/A; CLPR:D8-4, 4-PISTON, TYPE III ANO |
