BRAKE KIT
Wilwood’s new DynaPro Honda/Acura Caliper (DPHA) for Honda and Acura models originally equipped with 262mm diameter rotors. These calipers bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotor, accept the OE brake hose, and clear many factory aluminum wheels including the EM1 Si 15” wheel. Designed around Wilwood’s proven DynaPro series four piston calipers, the forged billet bodied DPHA caliper delivers high-strength clamping force and positive stopping power. Four stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble free for many more miles. Calipers work perfectly with the OE master cylinder and ABS functions, and are available with either black or red high-gloss, high-temp, brake fluid resistant sealed powder coat and feature Wilwood’s signature logo.
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Brake Calipers, DynaPro Low-Profile Lug Mount, Front, Aluminum, Red, 4-piston, for use on Acura®, Honda®, Kit

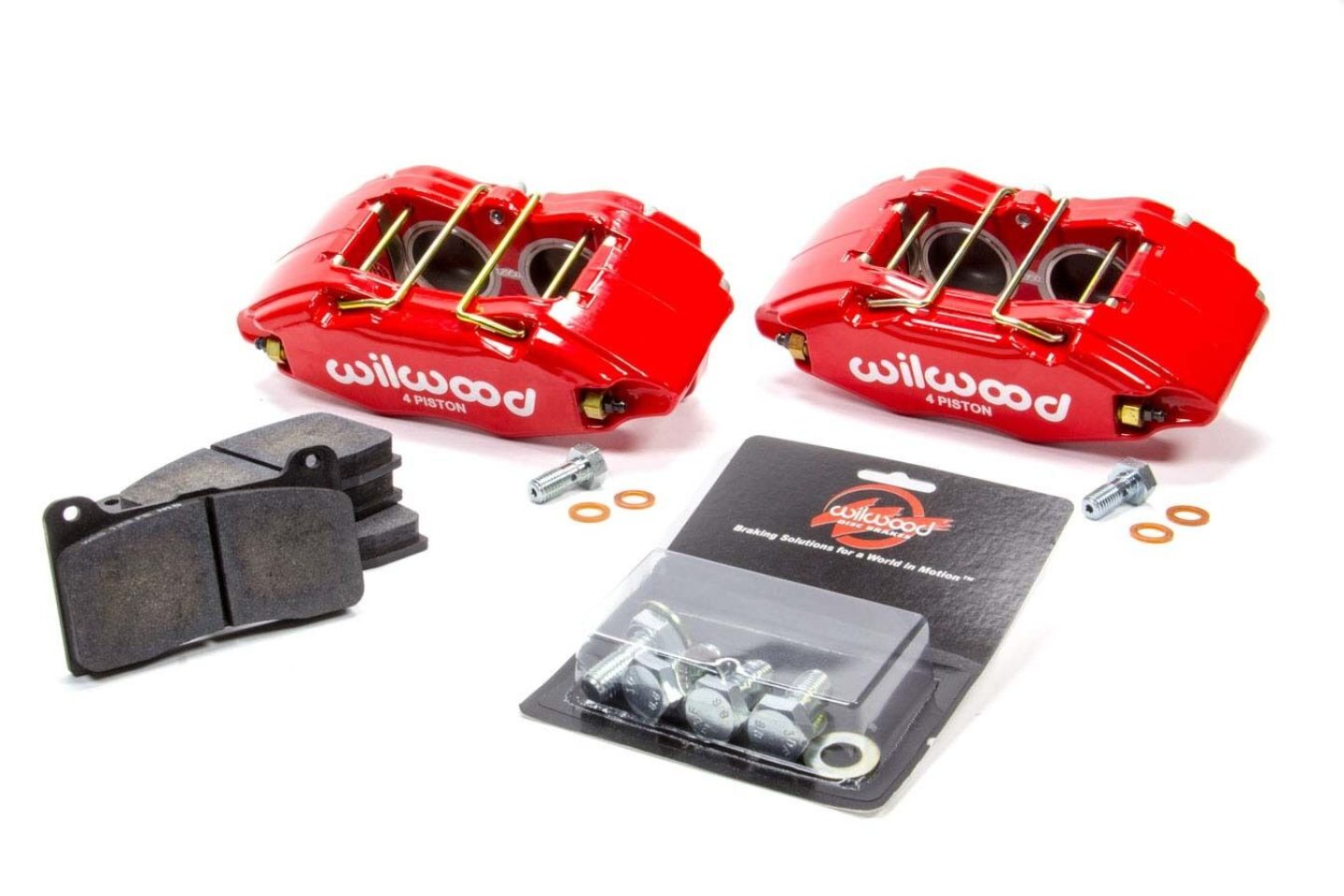

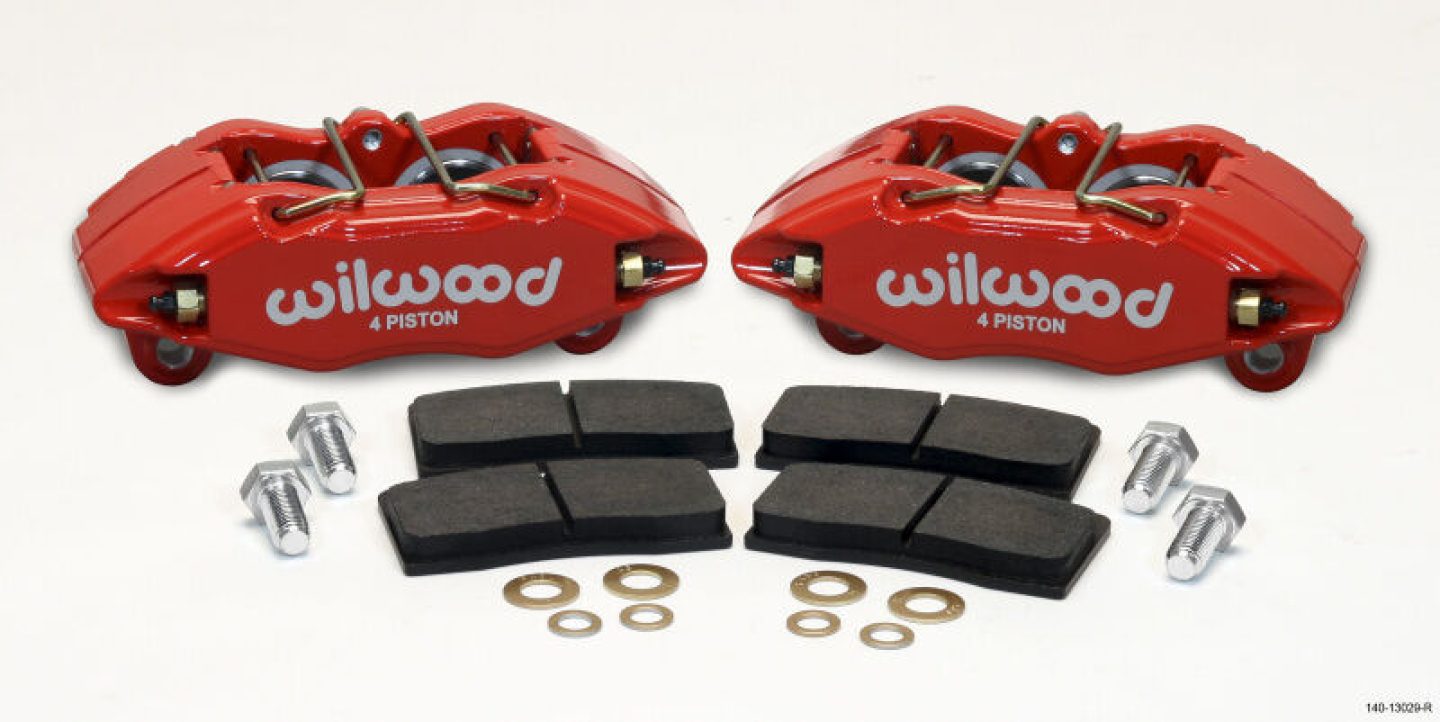

Wilwood forged DPHA front caliper kits are DynaPro packages specifically designed for Honda® and Acura® models originally equipped with 262mm diameter rotors. Packaged with calipers, pads, and hardware, DPHA calipers are available in several high-gloss, high-temperature, and brake fluid-resistant sealed powdercoat colors with the Wilwood signature logo. DynaPro Honda®/Acura® (DPHA) 4-piston calipers have forged billet bodies to deliver high-strength clamping force and positive stopping power. Plus, the stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble-free for many more miles. Wilwood forged DPHA front caliper kits bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotor, accept the OE brake hose, and clear many factory aluminum wheels, including the EM1 Si 15 in. wheel. The calipers also work perfectly with the OE master cylinder and ABS functions.
UPC | 889545018677 |
Brand | Wilwood Disc Brakes |
Notes | For use with Honda® and Acura® stock spindles only. Bolts to factory mounts. Clears most stock 15 in. wheels. |
Quantity | Sold as a kit. |
Part Type | Brake Calipers |
Thread Size | M10 x 1.5 |
Caliper Logo | Wilwood |
Product Line | Wilwood Forged DPHA Front Caliper Kits |
Bracket Color | Red |
Caliper Color | Red |
Caliper Series | Dynapro |
Remanufactured | No |
Bracket Material | Aluminum |
Caliper Material | Aluminum |
Brackets Included | Yes |
Fittings Included | No |
Brake Pad Material | Semi-metallic |
Brake Pads Included | Yes |
Fitting Attachment 1 | Female threads |
Piston Diameter (in.) | 1.620 |
Rotor Thickness (in.) | 0.830 in. |
Caliper Piston Quantity | Four |
Parking Brake Provision | No |
Manufacturer's Part Number | 140-13029-R |
Wilwood DPHA Front Caliper & Pad Kit Red Honda / Acura w/ 262mm OE Rotor | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
1990-2001 | Acura | Integra | GS, LS, RS, GS-R, Special Edition, Type R | US |
1986-1987 | Acura | Legend | Base, L, LS | US |
1989-1990 | Acura | Legend | Base, L, LS | US |
1988-1989 | Honda | Accord | DX, LXi, LX, SEi | US |
1990-2015 | Honda | Civic | EX, DX, Si, LX, CX, HX, GX, Hybrid, Value Package, EX Special Edition, LX Special Edition, Hybrid-L, HF, SE | US |
2007-2013 | Honda | Fit | Base, Sport | US |
2015-2017 | Honda | Fit | EX, EX-L, LX | US |
2010-2014 | Honda | Insight | EX, LX, Base | US |
1988-1991 | Honda | Prelude | 2.0 S, 2.0 Si, 2.0 Si 4WS, Si, Si 4WS, Si ALB | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Make | ACURA |
Model | INTEGRA |
Submodel | GS-R |
Beginning Year | 1992 |
Ending Year | 1993 |
Engine Type | L4 |
Liter | 1.7 |
Caliper Position | Front Axle |
CC | 1678 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 1.7L/1678cc |
Drivetrain | FWD |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc. KIT,FRONT,HONDA/ACURA,DPHA,CALIPERS RED; RTR:-IN DIA, , ; CLPR:FORGED DPHA, 4-PISTON, RED POWDER COAT Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. This kit requires spindles from vehicles ori |
Make | ACURA |
Model | INTEGRA |
Submodel | GS-R |
Beginning Year | 1994 |
Ending Year | 2001 |
Engine Type | L4 |
Liter | 1.8 |
Caliper Position | Front Axle |
CC | 1797 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 1.8L/1797cc |
Drivetrain | FWD |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc. KIT,FRONT,HONDA/ACURA,DPHA,CALIPERS RED; RTR:-IN DIA, , ; CLPR:FORGED DPHA, 4-PISTON, RED POWDER COAT Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. This kit requires spindles from vehicles ori |
Make | ACURA |
Model | INTEGRA |
Submodel | GS |
Beginning Year | 1990 |
Ending Year | 1993 |
Engine Type | L4 |
Liter | 1.8 |
Caliper Position | Front Axle |
CC | 1834 |
Engine Family | Honda/Acura 4-cylinder |
Engine Size | 1.8L/1834cc |
Drivetrain | FWD |
Application Notes | Front Brake Type: Disc, Rear BrakeType: Disc. KIT,FRONT,HONDA/ACURA,DPHA,CALIPERS RED; RTR:-IN DIA, , ; CLPR:FORGED DPHA, 4-PISTON, RED POWDER COAT Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. This kit requires spindles from vehicles ori |
