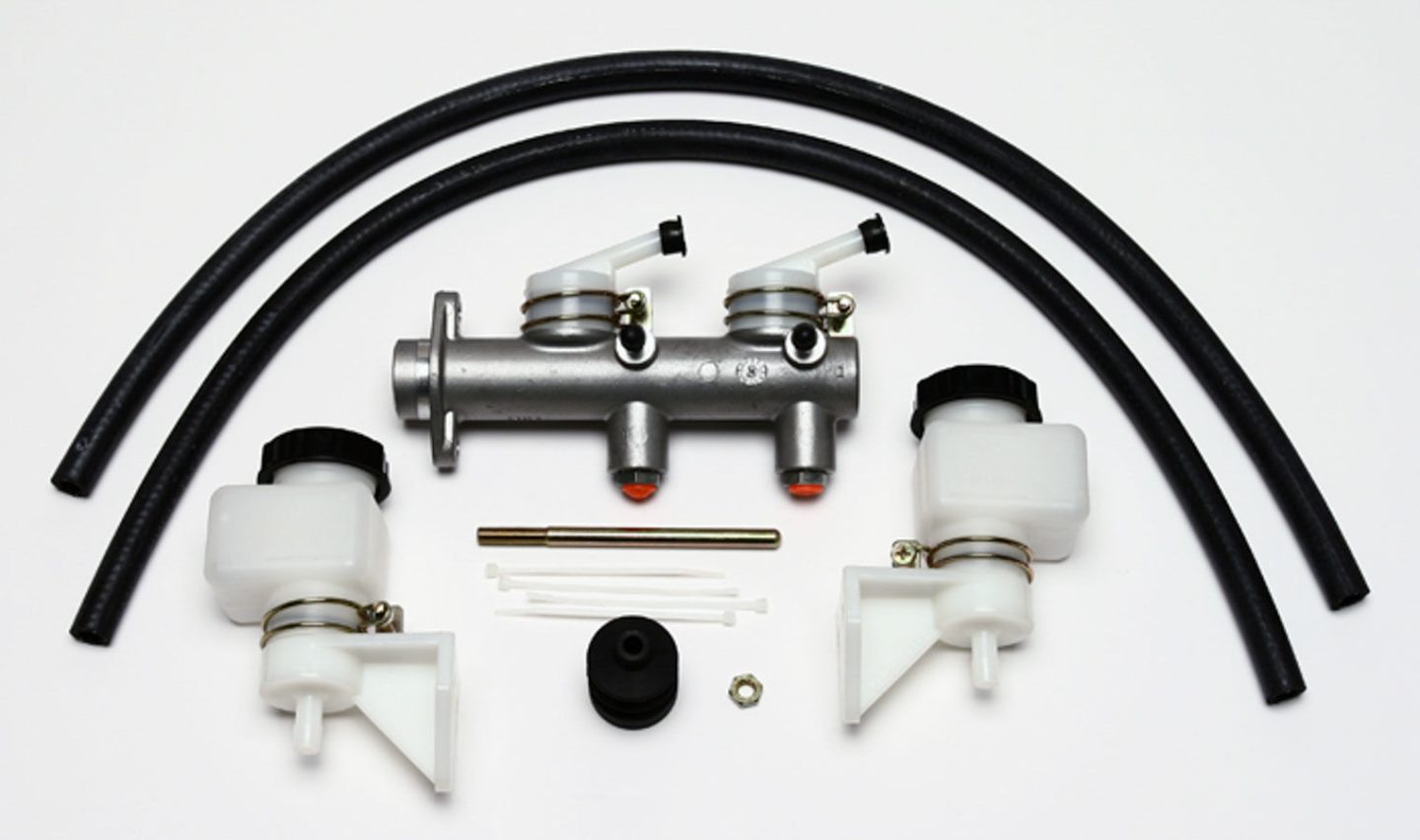

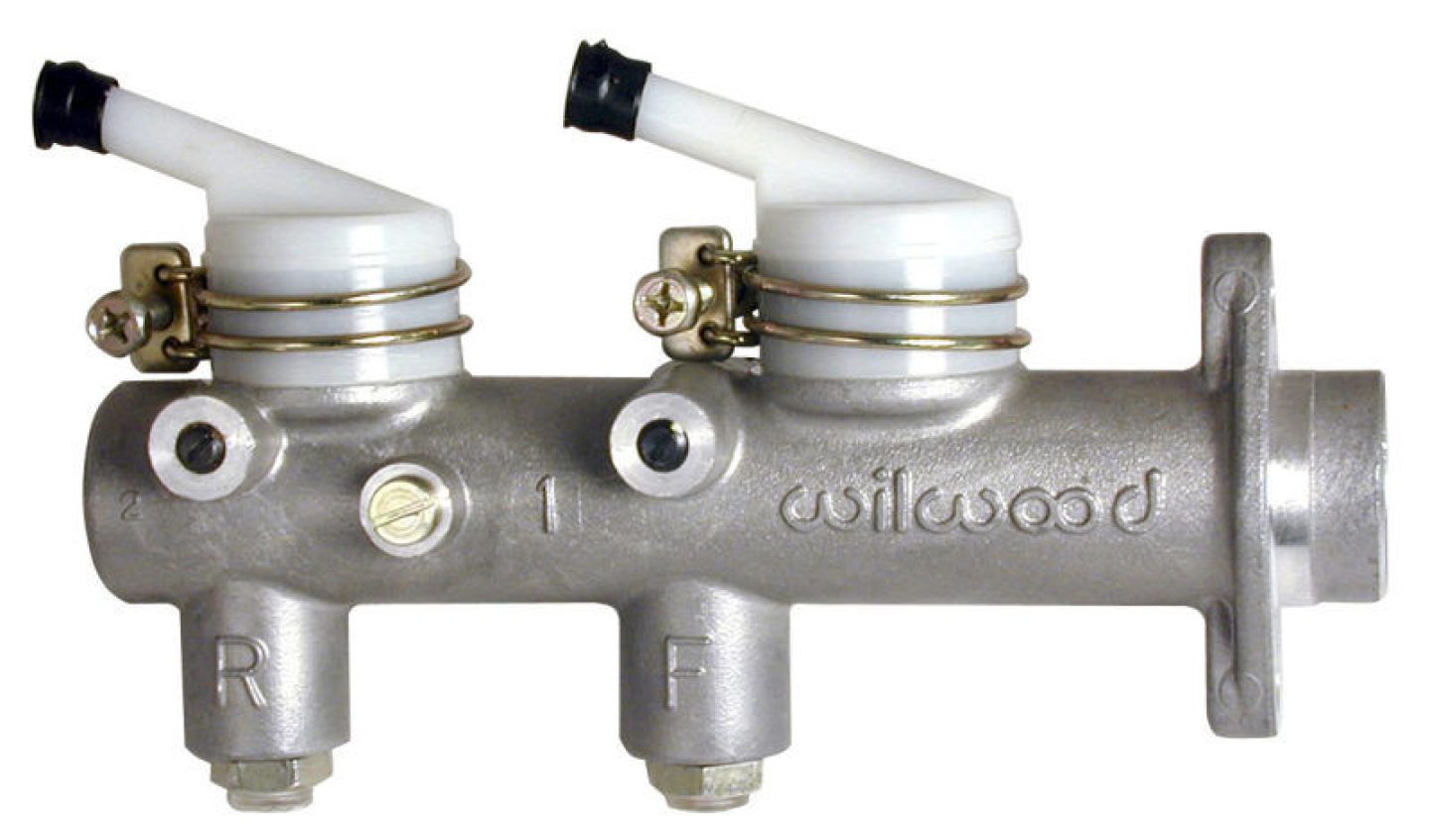

Wilwood’s Remote Tandem master cylinders provide one of the safest ways to actuate four wheel or dual caliper axle brake systems. The cylinder features 50/50 output from a 1.00" bore with 1.10" stroke. This master cylinder can be bolted directly to Wilwood's single mount pedals. The kit is shipped complete with the master cylinder, pre-installed 4 ounce reservoirs and 3.38" x 5/16-24 pushrod.
Wilwood combination remote tandem master cylinders provide one of the safest ways to actuate 4-wheel or dual-caliper axle brake systems. These versatile, lightweight, and easily adapted master cylinders provide single-pushrod activation of two separate brake fluid circuits. By completely isolating the fluid reservoirs and circuits, the front and rear brakes are able to operate independently of each other and provide a safety net, should any one side of the system become inoperable. They're a great match for Wilwood's bolt-on disc brake kits, systems configured from OE components, and a variety of industrial applications.
UPC | 889545067910 |
Brand | Wilwood Disc Brakes |
Notes | Pushrod is 3.380 in. long with 5/16-24 threads. |
Quantity | Sold as a kit. |
Part Type | Master Cylinders |
Bowl Design | Dual |
Product Line | Wilwood Combination Remote Tandem Master Cylinders |
Remanufactured | No |
Pushrod Included | Yes |
Remote Reservoir | Yes |
Reservoir Finish | Natural |
Hardware Included | No |
Reservoir Included | Yes |
Reservoir Material | Plastic |
Master Cylinder Usage | Brake |
Master Cylinder Finish | Natural |
Master Cylinder Stroke | 1.100 in. |
Mounting Hole Quantity | 2 holes |
Power Brake Compatible | No |
Master Cylinder Material | Aluminum |
Master Cylinder Bore Size | 1.000 in. |
Manufacturer's Part Number | 260-7563 |
Mounting Brackets Included | Yes |
Master Cylinder Cap Included | Yes |
Mounting Flange Center to Center Distance (in.) | 2.250 in. |
Compatibility & Application Information | |
---|---|
Universal | Yes |
Front Brake Type (application) | Disc |
Rear Brake Type (application) | Disc |
Universal | Yes |
Front Brake Type (application) | Disc |
Rear Brake Type (application) | Drum |
Universal | Yes |
Front Brake Type (application) | Drum |
Rear Brake Type (application) | Drum |
We do not have any specific fitment data for this part. This could be a generic item or if you need further clarification, please contact us for details to assist us with your compatibility requirements.
