Piston Set
Our Pro Tru? Street series pistons are forged from 4032 alloy aluminum in Mentor, Ohio and includes rings, pins, and clips for an all-inclusive rebuild. For any build budget, Wiseco has the piston to get you on the road or down the track.

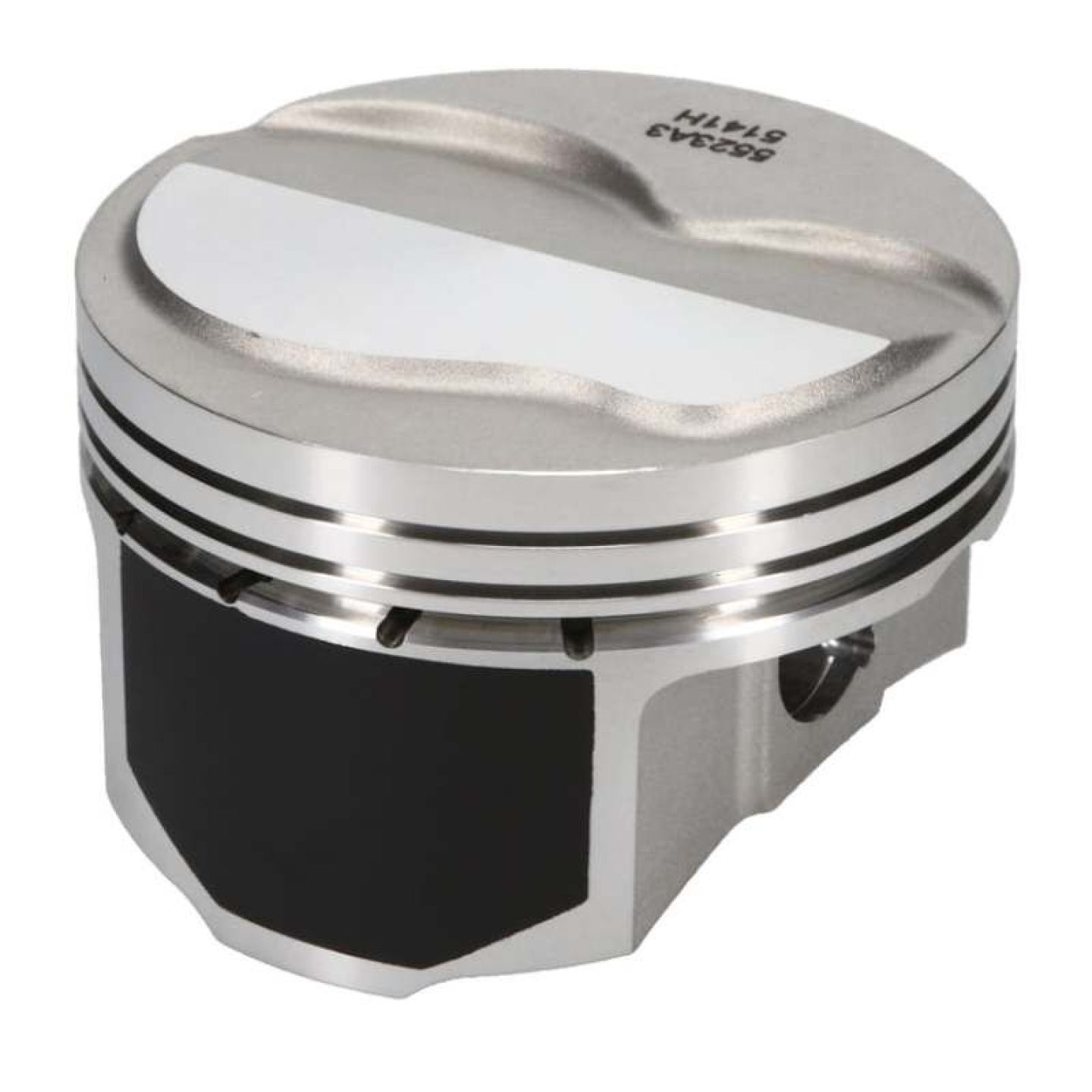

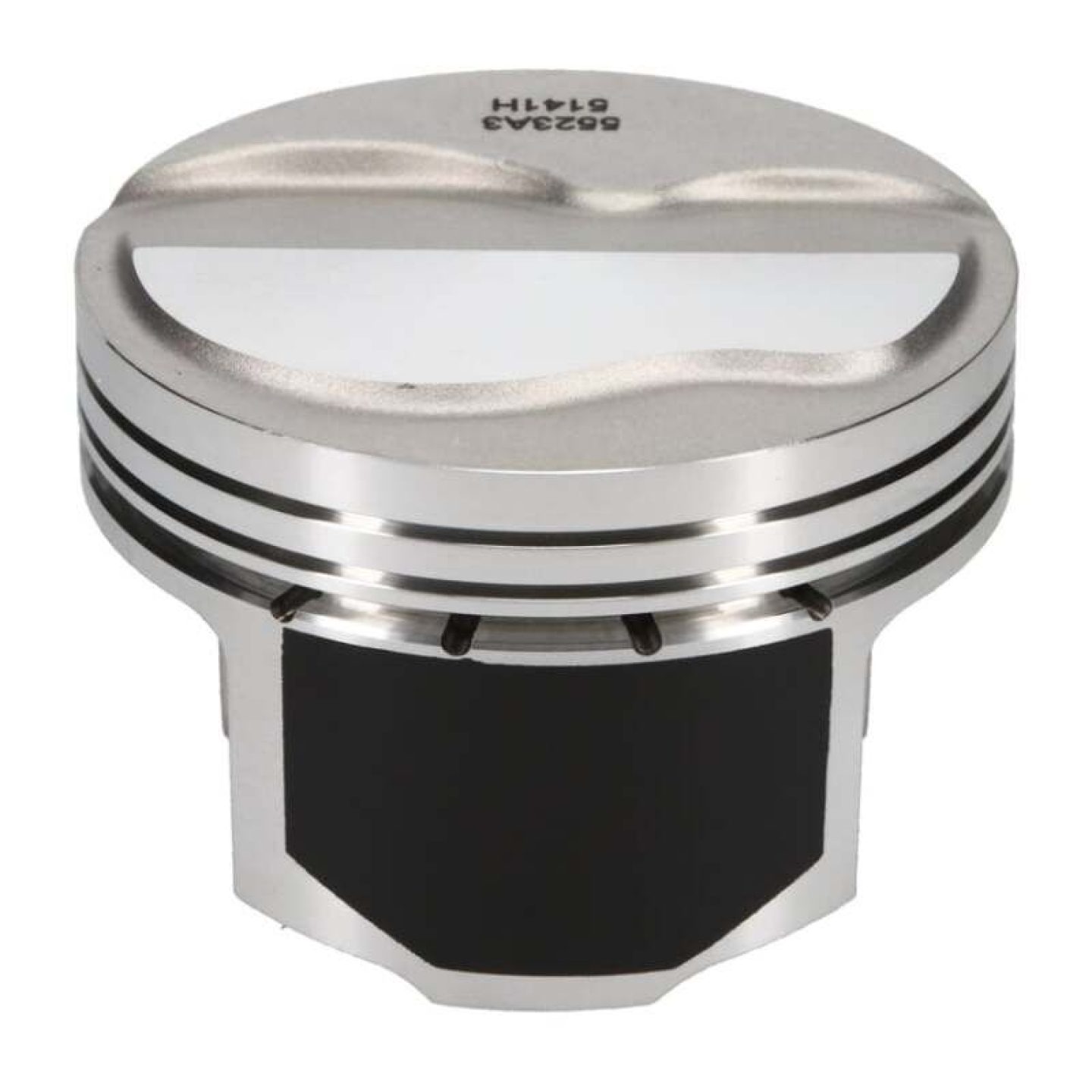

Wiseco Chevrolet LS Piston Set, 4.030 in. Bore, 1.335 in. Compression Height, 0.945 in. Pin Diameter, Pro Tru Street, Set of 8.
Chevrolet LS
Engine Piston Set
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Pistons, Pro Tru Street Pistons, 4.030 in. Bore, Forged, Dome, Please Verify Piston Pin Diameter Before Ordering, Chevrolet, LS, Kit
Are you looking for affordable high performance for your street machine? Wiseco Pro Tru Street pistons are right up your alley! These forged 4032 aluminum pistons are complete with chromium alloy steel piston pins and Spirolox. Oversized, symmetrical, radiused valve pockets allow for maximum flow around the valves during overlap—and accommodate oversized valves and high-lift cams. Wiseco's proprietary ArmorGlide skirt coating extends piston life, increases horsepower, reduces noise, and offers much tighter dimensional tolerances than typical spray-on coatings. Choose the set designed for your vehicle and engine application. World-class, precision-machined high performance pistons—that's Wiseco value!
Brand | Wiseco |
Manufacturer's Part Number | PTS523A3 |
Part Type | Pistons |
Product Line | Wiseco Pro Tru Street Pistons |
UPC | 00193564093455 |
Piston Rings Included | Yes |
Bore (in.) | 4.030 in. |
Bore (mm) | 102.362mm |
Stroke | 3.622 in. |
Rod Length | 6.098 in. |

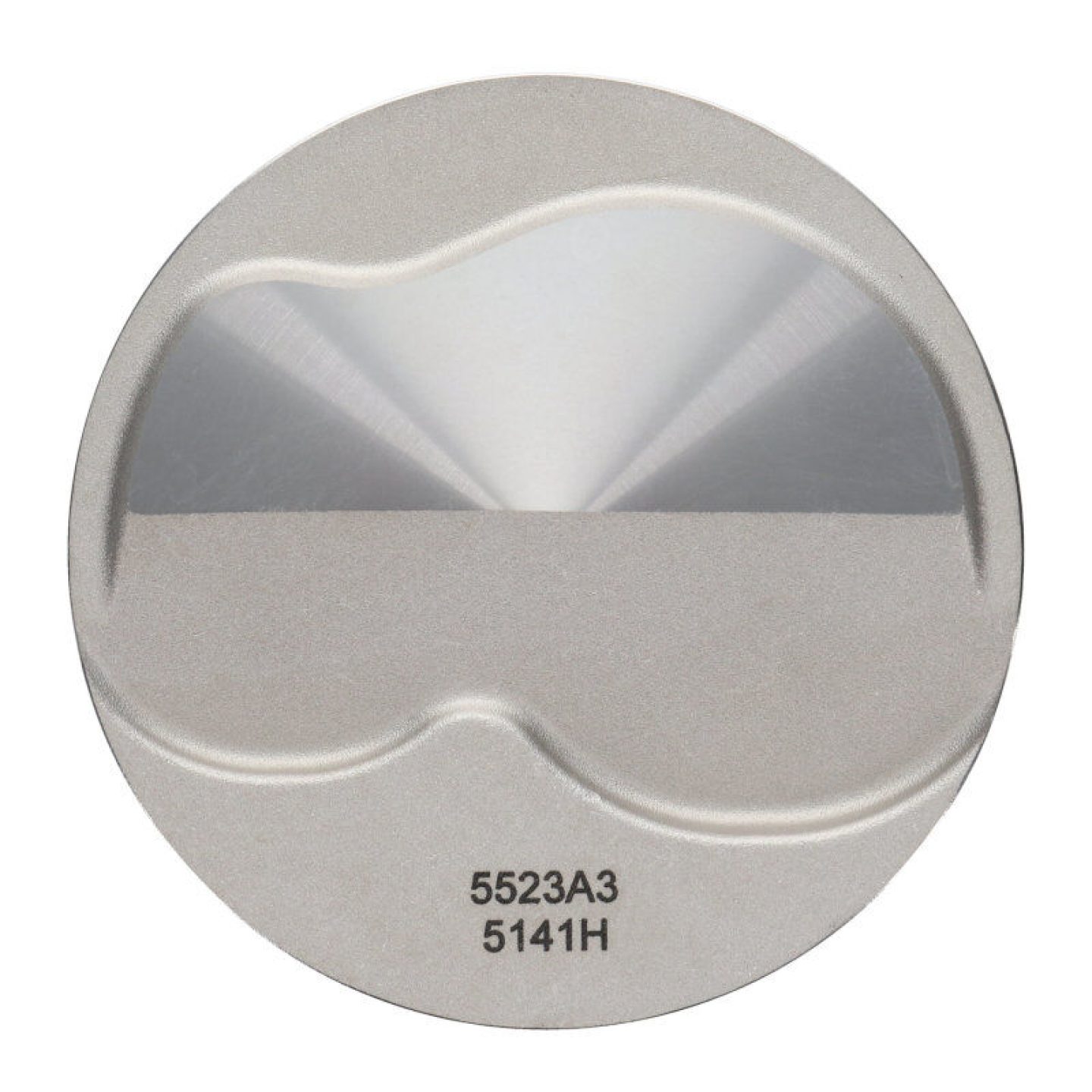

Piston Style | Dome, with two valve reliefs |
Piston Material | Forged aluminum |
Compression Height (in.) | 1.335 in. |
Piston Head Volume (cc) | -4.00cc |
Wrist Pin Style | Press-fit or floating |
Wrist Pin Retainers Included | Yes |
Wrist Pin Included | Yes |
Pin Diameter (in.) | 0.945 in. |
File Fit | No |
Gapless | No |
Top Ring Thickness | 1/16 in. |
Top Ring Material | Ductile iron |
Top Ring Facing Material | Plasma-moly |
Second Ring Thickness | 1/16 in. |
Second Ring Material | Iron |
Second Ring Facing Material | Phosphate coated |
Oil Ring Thickness | 3.0mm |
Oil Ring Material | Chrome plated carbon steel |
Oil Ring Tension | Standard |
Remanufactured | No |
Quantity | Sold as a kit. |
Notes | Please verify piston pin diameter before ordering, 2003 model year 6.0L engines were available with 0.943 in. and 0.945 in. pins. |
No specific fitment data available for this part. For clarification, please contact us.
