Gear & Install Kit
USA Standard Gear Ring Gear & Installation Kits are an easy way to re-gear a differential with one simple part number. The kits package a ring and pinion set with a Master Installation Kit that contains all the bearings, seals, and small parts needed for a proper install. USA Standard Gear employs rigorous in-house quality testing and inspections to ensure its gears pass dimensional, material, and fitment testing. Available in a wide variety of OEM and aftermarket ratios, USA Standard Gear ring and pinion sets are ready to withstand the rigors of everyday commuting, trail running, and all types of spirited driving.

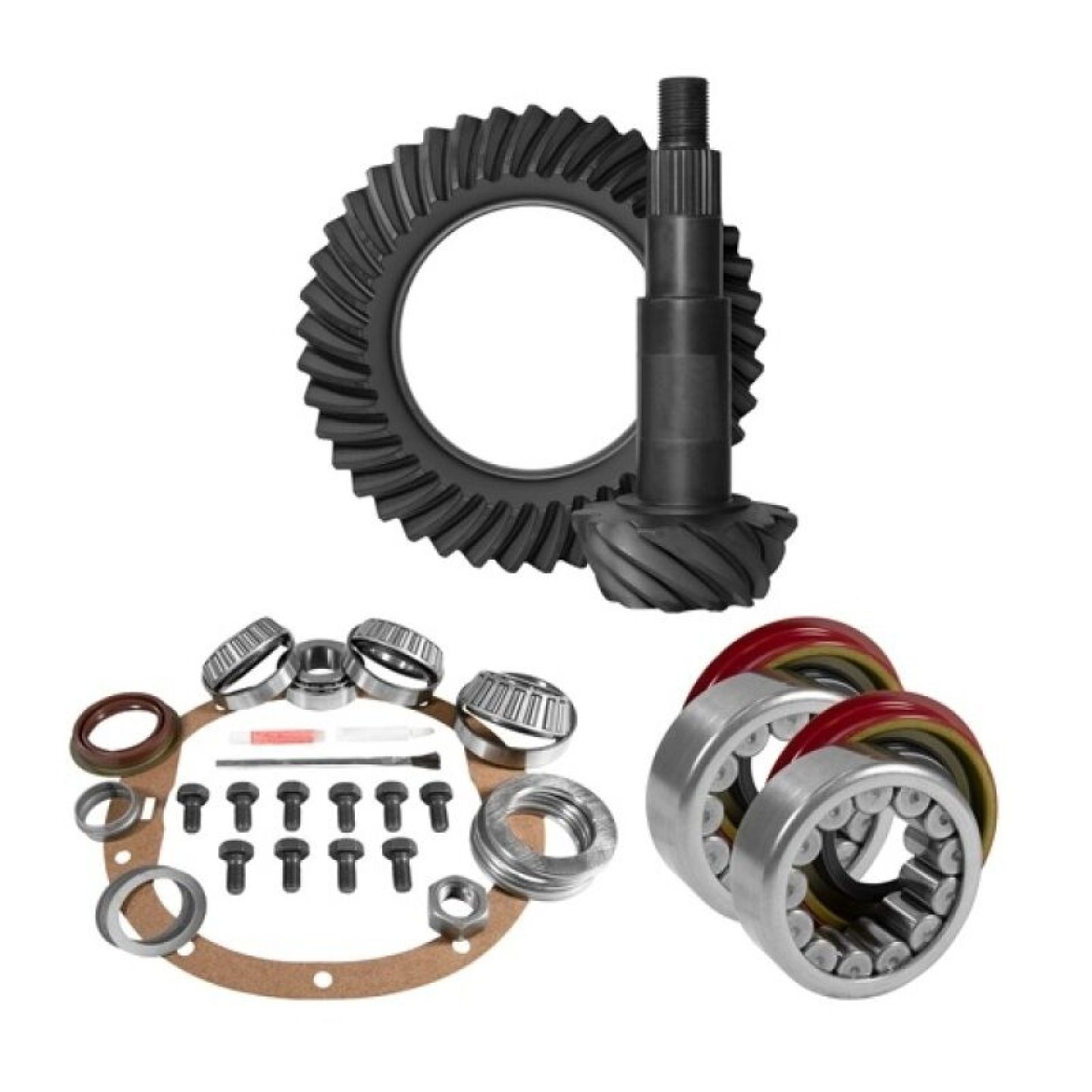

USA Standard 8.6" GM, 4.56 Ratio Rear Ring & Pinion Gear Set and Master Install Kit Package, with Axle Bearing & Seals
8.6" GM 4.56 REAR R&P GEAR/ INSTALL KIT PACKAGE w/ AK C10, '99-'08 TRK & SUV
Differential Ring and Pinion Kit
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Ring and Pinion Gears,USA Standard 8.6" GM, 4.56 Ratio Rear Ring & Pinion GearInstall Kit Axle Bearings & Seals
USA Standard Gear ring and pinion gear kit packages provide all you need to re-gear your front or rear differentials. They include ring and pinion sets along with master overall kits to fully complete your job. Save time searching for components—and save money by purchasing everything at the same time. Service the front or rear of your rig with a ring and pinion gear kit package from USA Standard Gear.
Brand | USA Standard Gear |
Manufacturer's Part Number | ZGK2024 |
Part Type | Ring and Pinion Gears |
Product Line | USA Standard Gear Ring and Pinion Gear Kit Packages |
UPC | 883584107354 |
Differential Case Design Type | GM 8.6 in. |
Ring and Pinion Ratio | 4.56:1 |
Cover Bolts | 10 |
Ring Gear Bolts | 10 |
Pinion Spline Count | 30 |
Ring Gear Rotation | Standard |
Ring Gear Teeth | 41 |
Pinion Gear Teeth | 9 |
Ring Gear Diameter (in.) | 8.500 in. |
Pinion Shaft Diameter (in.) | 1.626 in. |
Installation Kit Included | Yes |
Cover Gasket Included | Yes |
Pinion Shims Included | Yes |
Carrier Shims Included | Yes |
Crush Sleeve Included | Yes |
Pinion Seal Included | Yes |
Pinion Nut Included | Yes |
Ring Gear Bolts Included | Yes |
Head Bearing Included | Yes |
Tail Bearing Included | Yes |
Carrier Bearings Included | Yes |
Axle Seals Included | Yes |
Axle Bearings Included | Yes |
Differential Cover Included | No |
Differential Oil Included | No |
Friction Modifier Included | No |
Installation DVD Included | No |
Quantity | Sold as a kit. |
Notes | Kit includes LM603049/LM603012 carrier bearing and race with a 1.781 in. I.D and 3.062 in. O.D. |
Yukon Gear & Install Kit 8.6in. GM 4.56 Rear w/ AK C10, 99-08 TRK & SUV | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
2000 | Cadillac | Escalade | Base | US |
2002-2008 | Cadillac | Escalade | Base, Platinum | US |
2007-2008 | Chevrolet | Avalanche | LS, LT, LTZ | US |
2002-2006 | Chevrolet | Avalanche 1500 | Base, On Road Edition, Z71, North Face, WBH, Z66, LS, LT | US |
1999 | Chevrolet | C1500 | LS | US |
1999-2000 | Chevrolet | C2500 | Base, LS | US |
2003-2008 | Chevrolet | Express 1500 | Base, LS, LT | US |
1999 | Chevrolet | K1500 | LS | US |
1999 | Chevrolet | K1500 Suburban | Base, LS, LT | US |
1999-2008 | Chevrolet | Silverado 1500 | Base, LS, LT, WT, Z71 Off-Road, Hybrid, SS, LTZ | US |
2000-2008 | Chevrolet | Suburban 1500 | Base, LS, LT, Z71, LTZ | US |
2000-2008 | Chevrolet | Tahoe | Base, LS, LT, Z71, Limited, LTZ, PPV, Hybrid | US |
1999 | GMC | C1500 | Sierra SL, Sierra SLE, Sierra SLT | US |
1999-2000 | GMC | C2500 | Sierra SL, Sierra SLE, Sierra SLT | US |
1999 | GMC | K1500 | Sierra SL, Sierra SLE, Sierra SLT | US |
2001-2008 | GMC | Savana 1500 | Base, SLT, SLE, LS, LT | US |
1999-2008 | GMC | Sierra 1500 | SL, SLE, SLT, Base, HT, WT, Hybrid, Denali | US |
2000-2008 | GMC | Yukon | SLE, SLT, Denali, SL, Hybrid | US |
2000-2008 | GMC | Yukon XL 1500 | SLE, SLT, SL, Denali | US |
2006-2008 | Hummer | H3 | Base, X, Alpha, Luxury, Adventure | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
