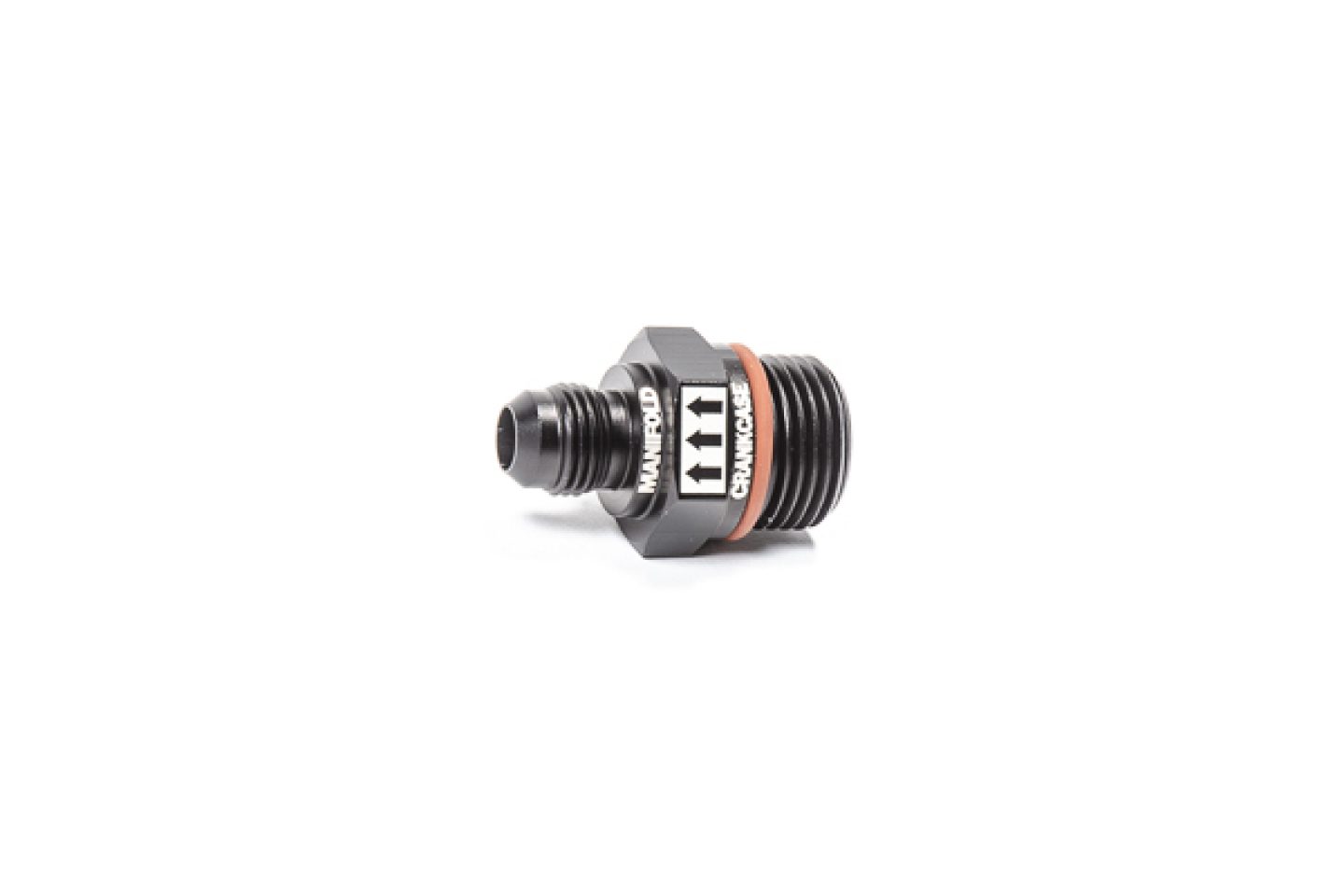

Radium PCV Valve 10AN ORB to 6AN Male
This CNC machined aluminum PCV valve can install to a 10AN ORB female port and allows connection of a 6AN hose. The valve contains all the same functionality as an OEM PCV valve, but designed for high performance use.
PCV Valve
PCV Valve, -10 AN ORB, -6 AN, Black, Each
Radium Engineering PCV (positive crankcase ventilation) valves are not simple one-way check valves. Radium's valves have an internal plunger that dynamically meters the appropriate amount of crankcase vent airflow based on current engine load, preventing the "vacuum leak" that a check valve would create at low loads. Also, in the event of a backfire, these PCV valves prevent combustible vapors from igniting in the crankcase. Offered in two outlet sizes, Radium PCV valves feature 6061 aluminum construction with a durable Type-II anodized finish and include sealing O-rings. Specs: * Inlet: 10AN ORB (7/8 in.-14 threads) * Outlets available: -- 3/8 in. Barb (9.5mm) -- 6AN Male
Product Attributes | |
---|---|
Brand | Radium Engineering |
Notes | PCV valve has -10 AN O-ring male inlet fitting and -6 AN outlet fitting. |
Quantity | Sold individually. |
PCV Angle | Straight |
Part Type | PCV Valves |
PCV Finish | Black |
PCV Material | Aluminum |
Product Line | Radium Engineering PCV Valves |
Grommet Included | No |
Inlet Attachment | Male O-ring |
Manufacturer's Part Number | 20-0561 |
Application Data | |
---|---|
Universal | Yes |
Application Notes | PCV valve has -10 AN O-ring male inlet fitting and -6 AN outlet fitting. |
