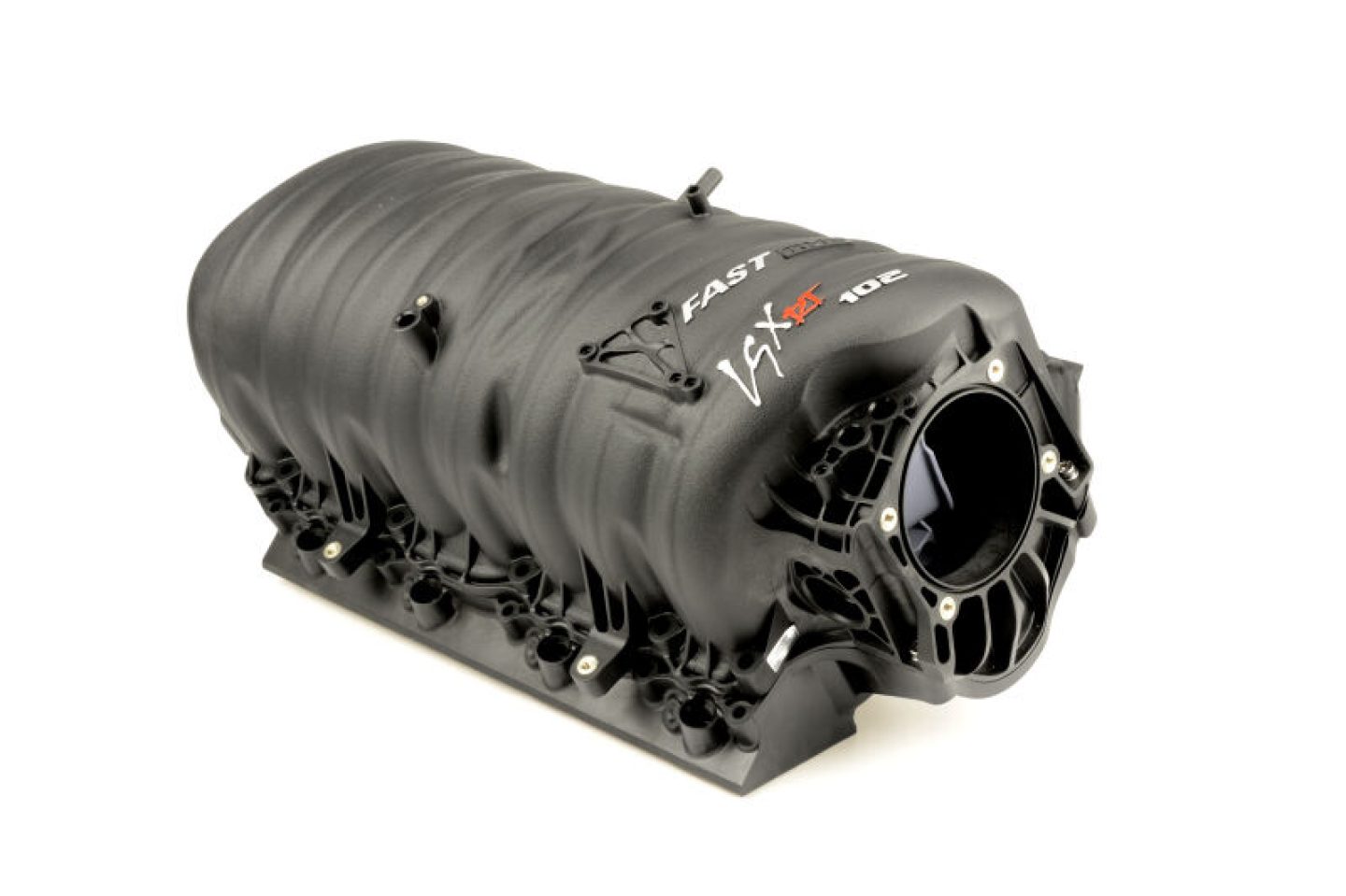

LSXrt 102mm Intake
The LSXRT is constructed from a proprietary precision injection
The FAST LSX 102mm Intake Manifold for GM 4.8, 5.3 and 6.0 truck engines provides bolt-on performance gains without any loss in bottom-end drivability.This manifold features our standard design runners for use in mild street applications.
Engine Intake Manifold
Unless otherwise stated, this product may be engineered for use in Left-Hand Drive vehicles. Steering components, pedals, shifters, instrument clusters, and adjacent parts can vary between LHD and RHD configurations, but in many cases they are identical depending on the design of the vehicle and part. Carefully review the product images and details to ensure suitability for your vehicle, or contact StreetFX support if you are unsure. Returns are not accepted for special order products.
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included items. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Intake Manifold, Fuel-Injected, Complete, Polymer, Black, Chevy, LS, Each
FAST LSXRT intake manifolds are designed specifically for GM truck engines (4.8L, 5.3L, and 6.0L) and LS1, LS2, and LS6 race applications where hood clearance is not a concern. FAST LSXRT 102mm intake manifolds follow the path chartered by the original FAST LSX Gen III intakes by featuring a modular design that allows for easy porting and disassembly and a runner design that yields an incredible 25 peak horsepower gain over the stock intake (on a stock 6.0L engine with a Big Mouth 102mm throttle body). Similar to the LSXR 102mm intake manifold for cars, the LSXRT features the ability to remove individual runners for modification. LSXRT's are constructed from a proprietary precision injection molded polymer which offers many benefits, including lighter weight, greater strength and lower heat soak propensity. While they feature a 102mm air inlet that was designed for the FAST Big Mouth 102mm throttle body, they can also be used with stock 90mm or aftermarket 92mm throttle bodies (78mm three-bolt throttle bodies require an adapter). Other features include integrated nitrous bungs and precise bolt-on fit that permits the use of factory accessories and OEM fuel/emission connections without adjustments or clearance issues. Some GM truck models may require the FAST 92mm or 102mm throttle body.
EGR | No |
UPC | 036584263647 |
Brand | FAST |
Notes | Designed for use with Big Mouth 102mm throttle body but can also be used with stock 90mm or 92mm throttle bodies. 78mm three-bolt throttle bodies require an adapter. May require a taller hood. |
Quantity | Sold individually. |
Emissions | California EO Approved |
Part Type | Intake Manifolds, Fuel Injected |
Base Color | Black |
Product Line | FAST LSXRT Intake Manifolds |
Base Material | Polymer |
Plenum Finish | Black |
Plenum Material | Polymer |
Runners Included | Yes |
CARB EO Number(s) | D-279-10 |
Runners Removable | Yes |
Injectors Included | No |
Fuel Injection Style | Multi-port |
Throttle Body Included | No |
Intake Section Included | Complete |
Throttle Body Bore Size | 102mm |
Engine Block Deck Height | Standard deck |
Basic Operating RPM Range | 1,800-6,000 |
Manufacturer's Part Number | 146602B |
Supplemental Boss Quantity | Eight |
Cylinder Head Configuration | Cathedral Port LS1/LS2/LS6 |
Supplemental Bosses Cast-In | Yes |
Supplemental Bosses Machined | No |
Aftermarket Fuel Rail Required | Yes |
Multi-Port Fuel Rails Included | No |

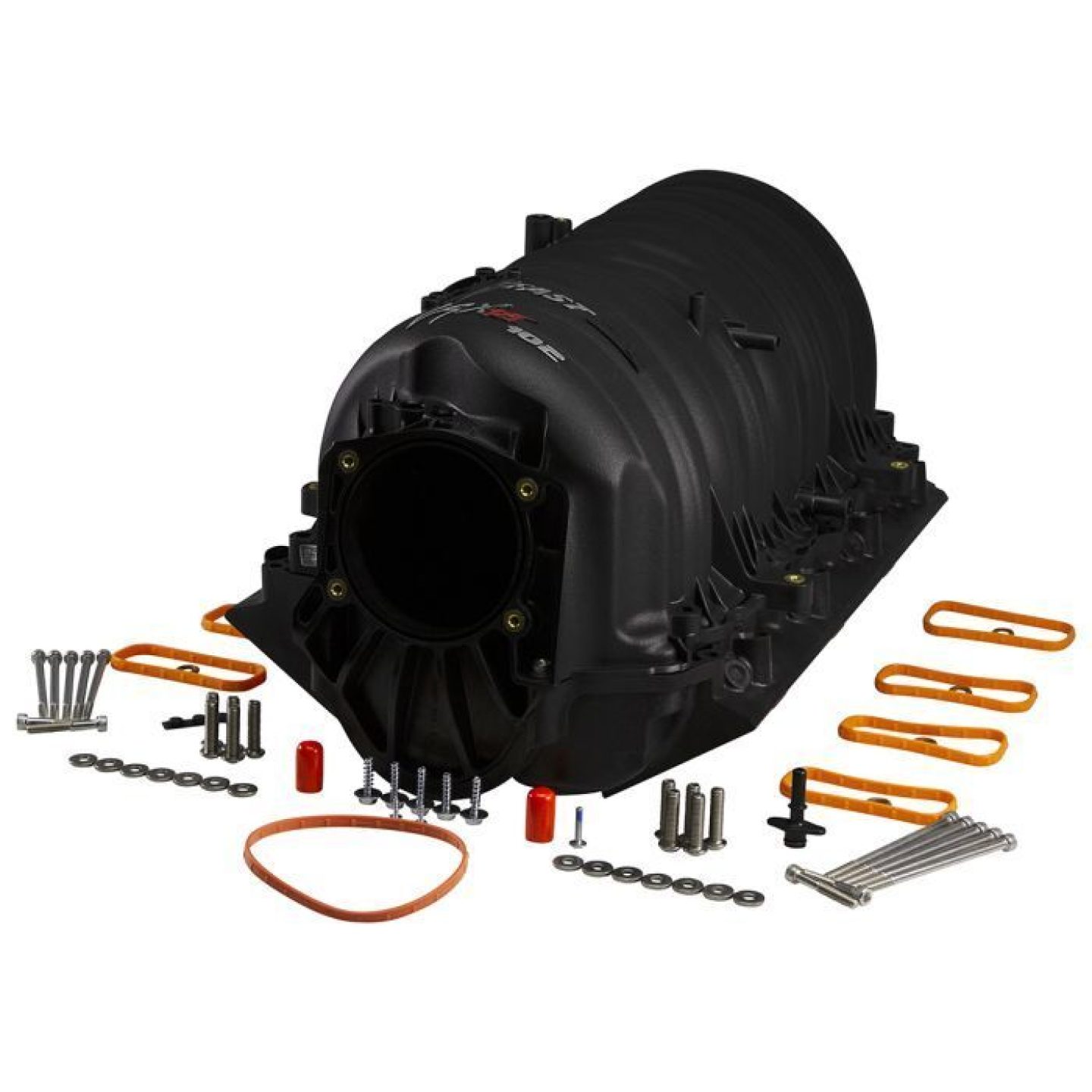

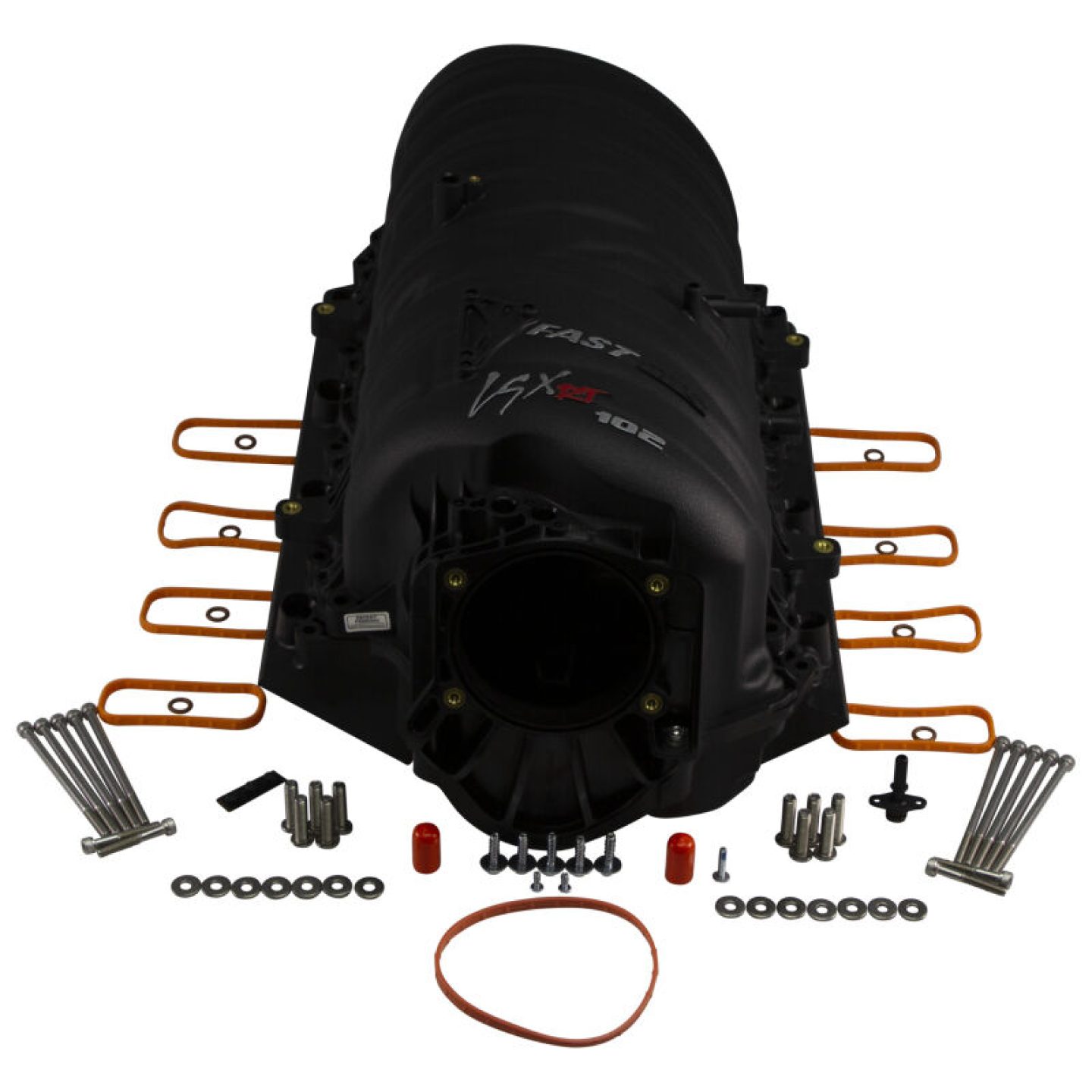

Item | Details |
---|---|
Hardware Included With 146602B In Packet #146602M-H (CF007-583) | |
2 Self-Tapping Screw | Canister purge valve nipple hold down |
4 M6 x 40mm Socket Head Cap Screws | OEM Electronic Throttle Bodies |
1 M4 x 20mm T-20 Torx Head Screw | MAP sensor hold down |
5 10mm x 20mm long, Self-Tapping Screws | Canister purge valve hold down, throttle cable hold down, EGR |
10 M6 x 110mm Socket Head Cap Screws | Bolts manifold to cylinder heads and upper shell |
13 M6 x 16.5mm O.D. x 3.5mm Thick Flat Washer | Manifold to cylinder head bolts, throttle cable hold down |
10 M8 x 30mm Button Head Cap Screws | Replacement OEM valley plate bolts |
Hardware Pre-Installed In LSXRT™ Manifold #146602 / #146602B | |
3 M6 x 16mm Socket Head Cap Screws | Rear upper shell hold down |
2 M6 x 40mm Socket Head Cap Screws | Front upper shell hold down |
8 M4 x 20mm T-20 Torx head screw | Runner hold down |
O-Ring Gasket Included in Package | |
1 Nipple | Fuel rail mounted canister purge valve |
1 102mm Seal | Throttle body |
3 Rubber Bumpers | Bottom of manifold |
2 Vacuum Plugs | Brake booster ports |
8 Fuel Injector O-Rings | GM truck fuel injector lower o-rings |
8 Intake Port seals | Cylinder head to manifold |
1 90-Degree Barbed Elbow | |
1 Rubber Grommet | |
1 Hose Clamp |
FAST LSXRt Manifold 102MM - Black | ||||
---|---|---|---|---|
Year Range | Make | Model | Submodels | Region |
2001-2004 | Avanti | II | Base | US |
2008-2009 | Buick | LaCrosse | Super | US |
2004-2007 | Buick | Rainier | CXL, CXL Plus | US |
2002-2005 | Cadillac | Escalade | Base | US |
2009-2013 | Cadillac | Escalade | Hybrid, Hybrid Platinum | US |
2007-2013 | Chevrolet | Avalanche | LS, LT, LTZ, Black Diamond LS, Black Diamond LT, Black Diamond LTZ | US |
2002-2006 | Chevrolet | Avalanche 1500 | Base, On Road Edition, Z71, North Face, WBH, Z66, LS, LT | US |
2009-2012 | Chevrolet | Colorado | LT | US |
2003-2007 | Chevrolet | Express 1500 | Base, LS, LT | US |
2003-2005 | Chevrolet | Express 2500 | Base, LS | US |
2010-2019 | Chevrolet | Express 2500 | Base, LS, LT | US |
2010-2019 | Chevrolet | Express 3500 | Base, LS, LT | US |
2006-2009 | Chevrolet | Impala | SS | US |
2016-2017 | Chevrolet | LCF 3500 | Base | US |
2006-2007 | Chevrolet | Monte Carlo | SS | US |
2003-2004 | Chevrolet | SSR | Base | US |
1999-2013 | Chevrolet | Silverado 1500 | Base, LS, LT, WT, Z71 Off-Road, Hybrid, LTZ, XFE | US |
2007 | Chevrolet | Silverado 1500 Classic | LS, LT, WT, Hybrid | US |
1999-2000 | Chevrolet | Silverado 2500 | Base, LS, LT | US |
2010-2019 | Chevrolet | Silverado 2500 HD | LT, LTZ, WT, High Country | US |
2010-2019 | Chevrolet | Silverado 3500 HD | LT, LTZ, WT, High Country | US |
2000-2014 | Chevrolet | Suburban 1500 | Base, LS, LT, Z71, LTZ | US |
2010-2013 | Chevrolet | Suburban 2500 | LS, LT | US |
2016-2019 | Chevrolet | Suburban 3500 HD | LS, LT | US |
2000-2014 | Chevrolet | Tahoe | Base, LS, LT, Z71, LTZ, Hybrid, PPV, SSV | US |
2006-2008 | Chevrolet | Trailblazer | LS, LT, Base | US |
2003-2006 | Chevrolet | Trailblazer EXT | LS, LT, North Face | US |
2009-2012 | GMC | Canyon | SLE, SLT | US |
2005-2009 | GMC | Envoy | Denali | US |
2003-2006 | GMC | Envoy XL | SLE, SLT, Denali | US |
2004-2005 | GMC | Envoy XUV | SLE, SLT | US |
2003-2007 | GMC | Savana 1500 | Base, SLE, LS, LT | US |
2003-2005 | GMC | Savana 2500 | Base, SLE | US |
2010-2019 | GMC | Savana 2500 | Base, LS, LT | US |
2010-2019 | GMC | Savana 3500 | Base, LS, LT | US |
1999-2013 | GMC | Sierra 1500 | SL, SLE, SLT, Base, HT, WT, Hybrid, XFE | US |
2007 | GMC | Sierra 1500 Classic | SL, SLE, SLT, WT, Hybrid | US |
1999-2000 | GMC | Sierra 2500 | SL, SLE, SLT | US |
2010-2019 | GMC | Sierra 2500 HD | SLE, SLT, WT, Denali, Base | US |
2010-2019 | GMC | Sierra 3500 HD | SLE, SLT, WT, Denali, Base | US |
2000-2014 | GMC | Yukon | SLE, SLT, SL, Hybrid, Denali Hybrid | US |
2000-2014 | GMC | Yukon XL 1500 | SLE, SLT, SL | US |
2010-2013 | GMC | Yukon XL 2500 | SLE, SLT | US |
2004 | Hummer | H2 | Base | US |
2007 | Hummer | H2 | Base | US |
2008-2010 | Hummer | H3 | Alpha, Championship Series | US |
2009-2010 | Hummer | H3T | Alpha | US |
2003-2006 | Isuzu | Ascender | Base, LS, Limited, S | US |
2005-2008 | Pontiac | Grand Prix | GXP | US |
Note: Displaying first 50 entries. |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
Application Data | |
---|---|
Make | BUICK |
Model | LACROSSE |
Submodel | SUPER |
Beginning Year | 2008 |
Ending Year | 2009 |
Engine Type | V8 |
Liter | 5.3 |
CID | 325 |
CC | 5328 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 5.3L/325 |
Application Notes | The use of a taller profile truck manifold in car may require the use of a different throttle body, fuel rails, front drive accessories. Hood clearance may also be a problem for proper fitment. |
Engine VIN Code | C |
Make | BUICK |
Model | RAINIER |
Submodel | CXL |
Beginning Year | 2004 |
Ending Year | 2004 |
Engine Type | V8 |
Liter | 5.3 |
CID | 325 |
CC | 5328 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 5.3L/325 |
Engine VIN Code | P |
Make | BUICK |
Model | RAINIER |
Submodel | CXL |
Beginning Year | 2005 |
Ending Year | 2007 |
Engine Type | V8 |
Liter | 5.3 |
CID | 325 |
CC | 5328 |
Engine Family | Chevy small block Gen III/IV (LS-based engines) |
Engine Size | 5.3L/325 |
Engine VIN Code | M |
